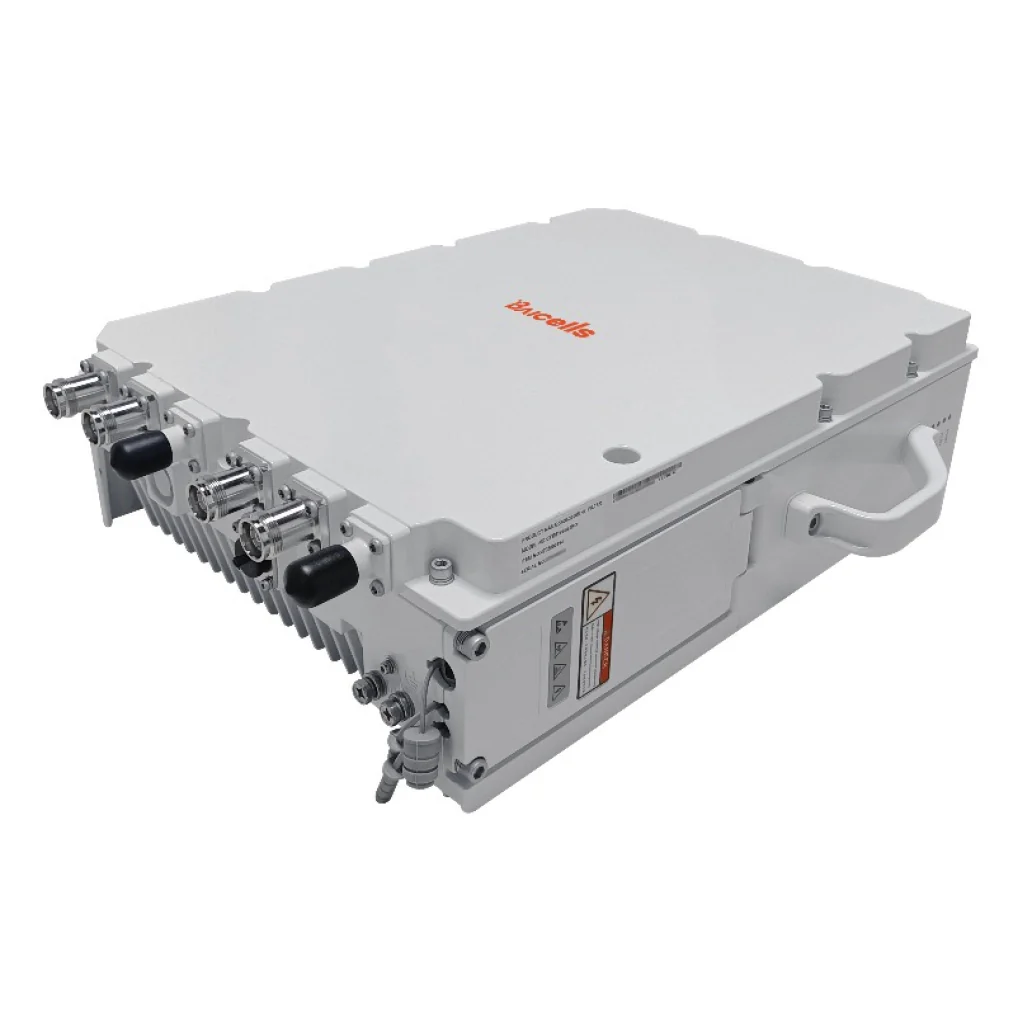

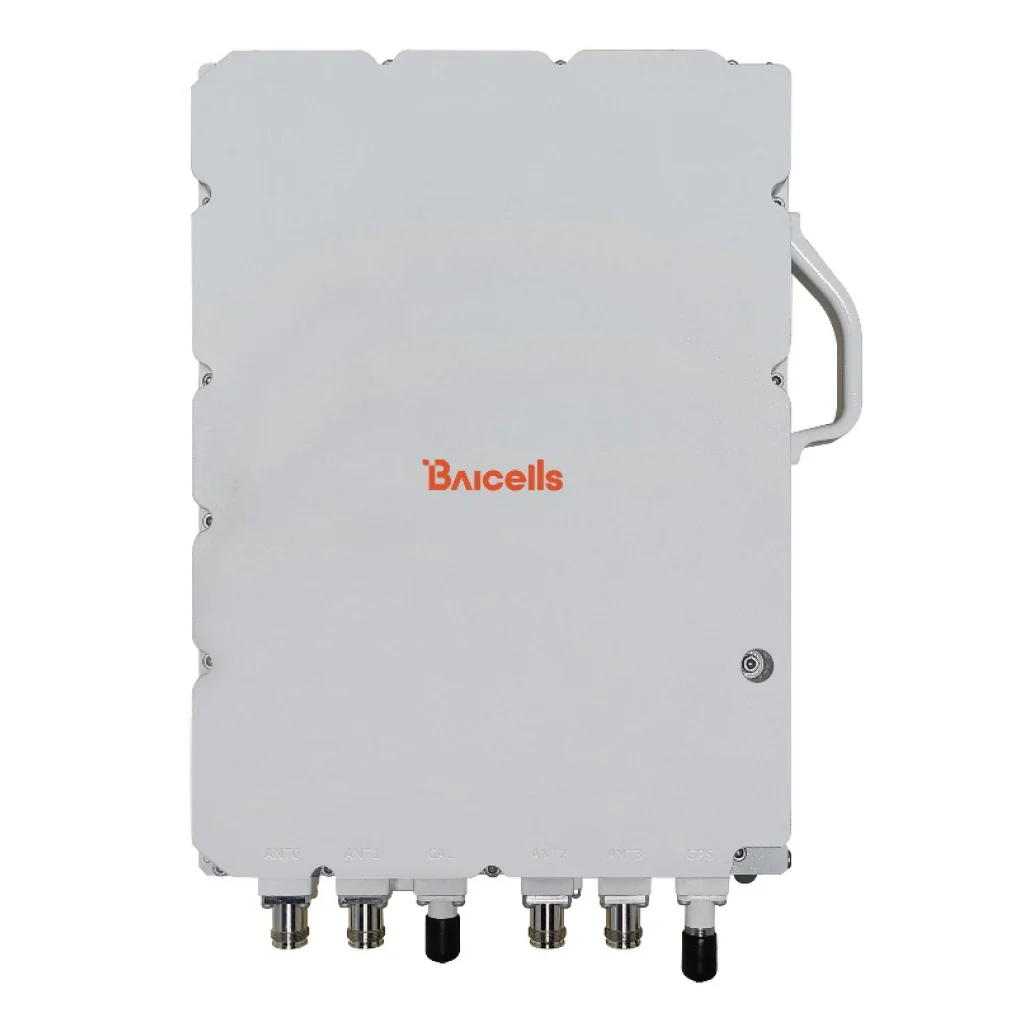

Baicells Nova452: Outdoor 4x40W Dual-Carrier LTE TDD Base Station for Bands 40, 41, and 42

The Baicells Nova452 is a high-power, dual-carrier LTE TDD base station designed for demanding outdoor deployments. It supports both Carrier Aggregation (CA) and Dual Carrier (DC) operation, with up to 2x20 MHz LTE bandwidth and future software upgradeability to 100 MHz for 5G NR. With 4x40W output power, 4T4R external antenna support, and 4x4 MIMO, the Nova452 delivers exceptional throughput and coverage — including up to 580 Mbps downlink in CA mode (planned future release).

Built to support high-capacity private networks, each carrier supports up to 512 concurrent users. The Nova452 is compatible with Baicells’ embedded HaloB EPC and supports TR-069, IPsec, SON features, and RET (AISG 2.0). It includes lightning protection and is IP66-rated for harsh environments.

Deployment Requirements

To deploy the Baicells Nova452, you’ll need:

• SAS registration: Required for Band 48 (CBRS) operation. Not required for Bands 40 or 41.
• IP backhaul: IPsec-protected connection over dual optical SFP ports. Supports RRU mode (future 5G upgradeable).
• EPC or core network: Compatible with Baicells HaloB EPC or external EPCs.
• Power and mounting: Requires -48VDC input. Optional AC adapter available. Includes lightning protection. Mounts on pole or wall.
• External antennas: Required. Supports external 4T4R high-gain antennas with mini-DIN connectors.
• GPS synchronization: External GPS antenna required (N-Type connector). RET-compatible.
• Environmental considerations: IP66-rated for rugged outdoor deployment. Max power draw 480W. Operating range: –40°C to 55°C.

Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.

Key Features

• Supports LTE TDD Bands 40, 41, and 42. Hardware-ready for 5G NR upgrade via software.
• Delivers 4x40W (46 dBm/channel) output power with 4x4 MIMO. External antennas required.
• Dual-carrier and carrier aggregation support. Up to 512+512 users in DC mode.
• Peak throughput up to 580 Mbps downlink and 56 Mbps uplink in CA mode (planned release).
• Supports 100 MHz bandwidth in future 5G NR upgrades.
• Includes support for RET (AISG 2.0) and RRU configuration via eCPRI/SFP.
• Advanced security and IPsec backhaul with TR-069 and SNMPv2 management support.
• Built-in HaloB EPC, SON, VoLTE and CSFB support. Transparent bridge mode supported.

Kit Contents

• Baicells Nova452 (Band 40/41/42 variant)
• Pole/wall mounting hardware
• Dual SFP optical ports for backhaul
• Mini-DIN connectors for external antennas
• N-Type connector for external GPS antenna

We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
