SureCall Fusion5

The SureCall Fusion5 kit is a Voice/3G/4G LTE signal booster system designed for small businesses, professionals and large home applications. It works on all major carriers. The Fusion5 is built to combine PCS and Cellular dual bands with both LTE and 4G AWS frequencies for Verizon, AT&T and T-Mobile voice and data reception. It covers an area of up to 10,000 square feet, multiple simultaneous users and is configurable for all indoor environments.

All carrier frequencies are independently balanced with easy to use adjustable control dials. The SureCall Fusion5 is approved by all major carriers and equipped with built in safeguards to completely eliminate interference to cell towers.

Please note that this model is designed and approved for use in the United States. If you wish to boost signal on a Canadian carrier, please see the SureCall Fusion5 Canada.

Features

• Highest 4G data rate in the industry
• Simple Plug and Play operation
• Fully compliant with new FCC certification standards and approved by all major US carriers
• Dual Embedded CPU
• Eight RSSI detectors for all inputs and outputs

Outside Antenna

The SureCall Fusion5 kit comes with a choice of two outside antennas:

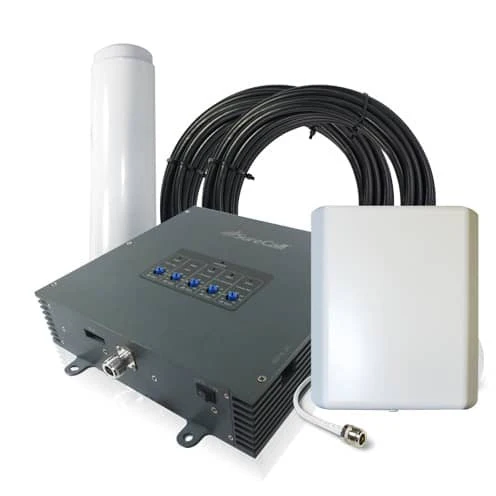

The SC-288W Omni Outdoor Antenna has 4dB gain. Omni antennas receive and send signals in a 360º radius. They can receive signals from multiple cell towers and is best for boosting signal on many different carriers. They are excellent in most situations where the existing outside signal strength is moderate to strong. If the outside signal is weaker than that, you may need the directional yagi antenna instead. We have a guide to testing your outside signal strength here.

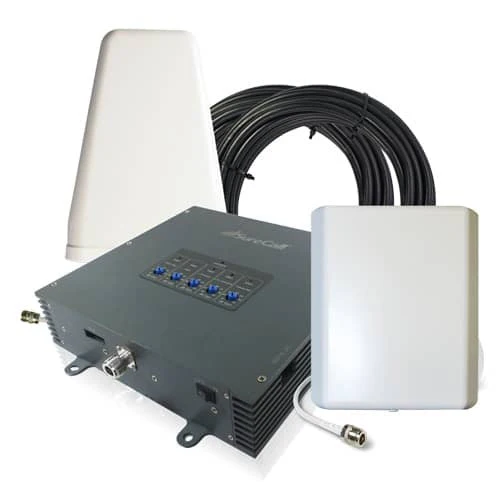

The SC-230W-S Yagi Outdoor Antenna has up to 5dB of gain. It is a directional antenna that can reach cell towers up to 30 miles away. It needs to be set up pointing in the direction of the cell tower, and because it is directional it will only pick up signal in that direction. It's very powerful at picking up weak signal in one particular direction, and we recommend it for situations where existing outside signal is weak, and you only want to boost coverage for one carrier (or if more than one carrier has a cell tower in that direction). If you need to boost signal coming from different directions, it is possible to set up more than one yagi antenna. Contact us for more help with this.

Inside Antenna

The SureCall Fusion5 kit also has a choice of two inside antennas:

The SC-222W Omni Dome Antenna is a multi-band omni-directional plastic dome antenna with that gathers signals from all sides. It has 6dB gain and is designed for central locations with 360º coverage. The range of the antenna is dependent on three factors: 1) physical obstructions, 2) power generated by the booster and 3) reception from outside signal received and distributed by the outside antenna. Besides the antenna itself, parts include mounting equipment. It needs to be mounted to the ceiling for best results and you will need to run a cable to the back of the ceiling.

The SC-248W Panel Antenna is a directional antenna with up to 10dB gain. Panel antennas allow optimum reception to targeted areas. It can be mounted to either the wall or ceiling.

Kit Contents

• SureCall Fusion5 72 dB 5-Band Amplifier
• SureCall Omnidirectional Outside Antenna SC-288W OR SureCall Yagi Directional Outside Antenna SC-230W
• SureCall Dome Antenna SC-222W OR SureCall Panel Antenna SC-248W
• 1x30ft. SureCall Ultra Low-Loss SC400 Coax Cable SC-400-30NN
• 1x75ft. SureCall Ultra Low-Loss SC400 Coax Cable SC-400-75NN

Lightning Surge Protector

We recommend using a lightning surge protector in most cases, but particularly if you'll be installing the kit in an area with frequent lightning. The lightning surge protector should be installed in line with the cable and near the outdoor antenna, and should be properly grounded.

Coverage and Additional Antennas

This kit includes one indoor antenna. However, if you are hoping to cover multiple stories, or opposite sides of your house or building, you may need additional antennas to achieve the maximum coverage the Fusion5 can offer. If you need an extra antenna, we recommend either another SC-222W dome antenna or another SC-248W panel antenna. You will also need another length of SC400 coax cable, and a 2-way splitter. If you have any questions about whether or not you need another antenna, please contact us for advice.
