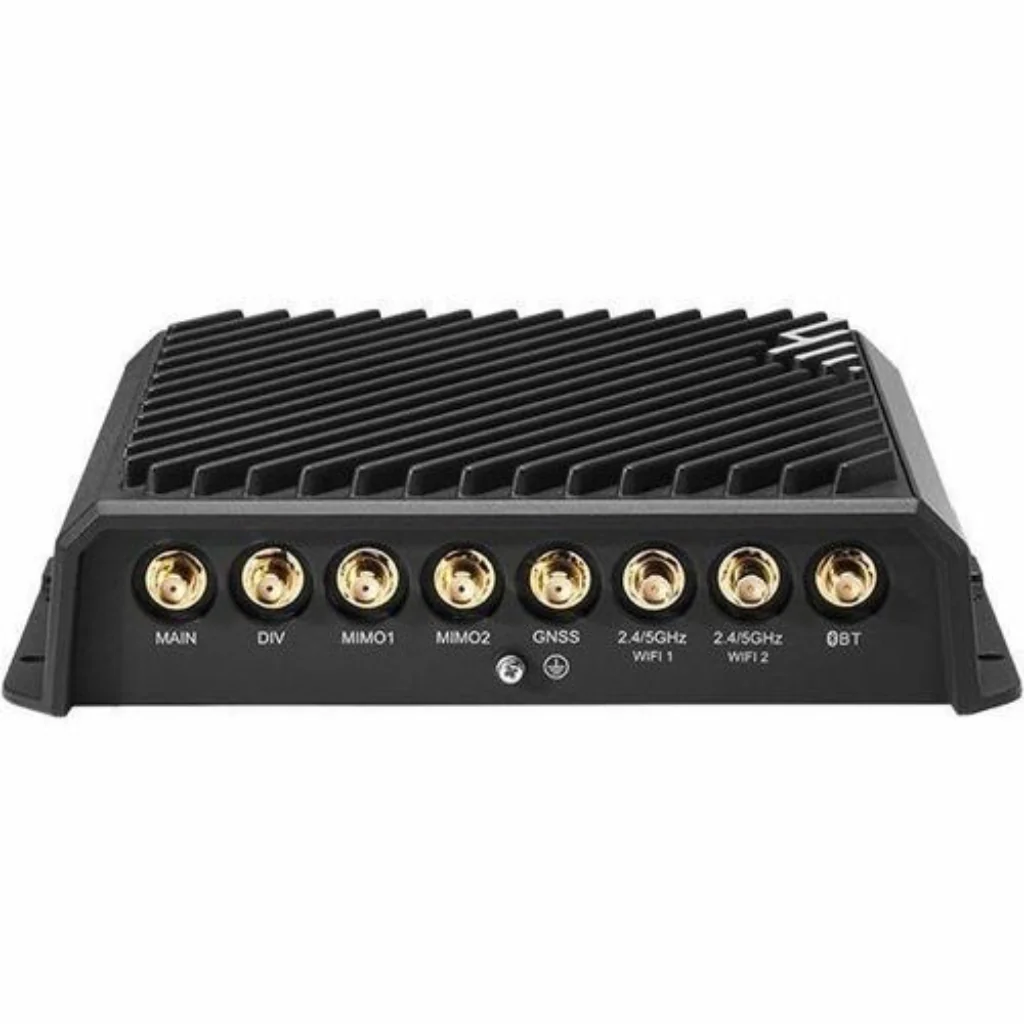

Cradlepoint R1900-5G: CBRS-Capable Rugged 5G Mobile Router

The Cradlepoint R1900-5G is a rugged mobile router built for use in public safety vehicles, transit fleets, mobile command centers, and field service operations. It supports CBRS and 5G connectivity, making it ideal for organizations building mobile private networks or extending coverage into the field.

Powered by a 2.2 GHz quad-core ARM Cortex-A53 processor, the R1900-5G includes dual nano SIM slots, Wi-Fi 6, and support for CBRS Band 48 and Sub-6 GHz 5G. Its hardened enclosure meets MIL-STD-810G standards for shock and vibration and is IP64-rated for dust and water resistance. Integrated GNSS, GPIO, and dual Ethernet ports support edge routing and advanced telemetry in mobile or remote deployments.

This variant supports CBRS Band 48 and Sub-6 GHz 5G data connectivity with dual SIM slots and expansion capabilities via a modular second modem bay.

Key Features

Connectivity & Wireless Performance

• Supports CBRS Band 48, Sub-6 GHz 5G (data only), LTE Cat 20, and Wi-Fi 6 for high-speed connectivity across fixed and mobile environments.
• Dual SIM slots enable failover or multi-network access.

Rugged Design & Installation

• Hardened, compact enclosure is IP64-rated and certified to MIL-STD-810G for shock, vibration, and humidity.
• DIN rail or surface mounting options allow flexible installation in vehicles or enclosures.

Edge Networking & Processing

• Integrated 2.2 GHz quad-core ARM processor and support for GNSS, GPIO, and Ethernet-based telemetry make the R1900-5G suitable for edge computing and remote diagnostics.

Management & Security

• Supports Cradlepoint’s NetCloud Mobile Performance Service for remote configuration, security, SD-WAN features, and firmware management.
• Compatible with public or private SIMs.

Connectivity Requirements

To operate the Cradlepoint R1900-5G on CBRS or cellular networks, you’ll need:

• A nano SIM activated on a private LTE/5G network or supported public carrier. Dual SIM slots allow failover or roaming configurations.
• A Cradlepoint NetCloud Mobile Performance subscription is required for full functionality, including remote management, firmware updates, and advanced security.

Deploying CBRS-capable mobile routers requires careful setup — from SIM provisioning and APN configuration to installation, antenna placement, and fleet-wide management. Reach out here to get started.

Kit Contents

• Cradlepoint R1900-5G router (CBRS + 5G variant)
• Integrated modem with Sub-6 GHz 5G and LTE support
• DIN rail mounting bracket
• Power and I/O cables
• User documentation

We can bundle this device with SIMs, compatible RAN equipment, and end-to-end deployment support. Reach out to our expert team here or email us at [email protected].
