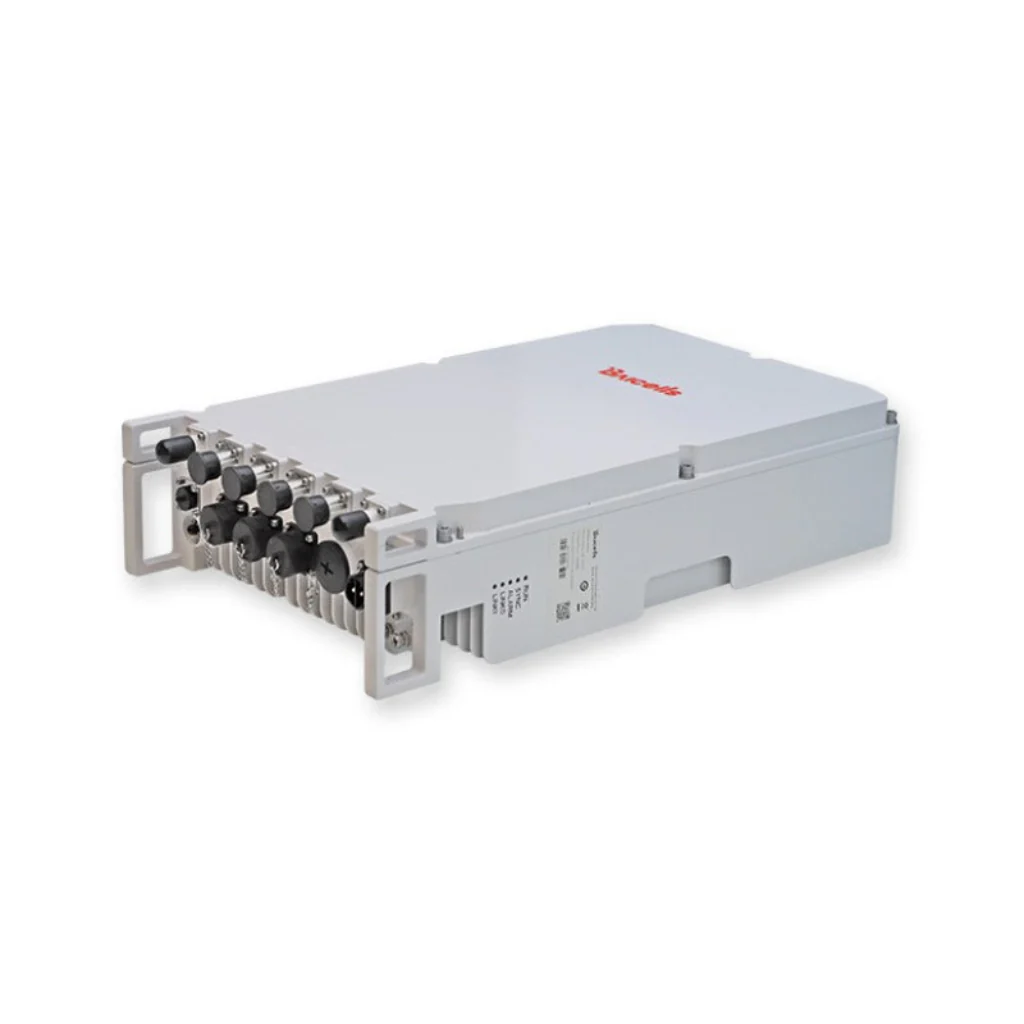

Baicells Aurora454: Outdoor 4x60W 5G NR Base Station for Band n41
The Baicells Aurora454 is a high-performance outdoor 5G NR base station designed for wide-area private network coverage on Band n41 (2496–2690 MHz). With 4x60W output power and 4x4 MIMO, it delivers up to 1500 Mbps peak downlink and 660 Mbps uplink throughput across 100 MHz of bandwidth. The unit supports up to 1200 users in standalone (SA) mode and is built to meet the demands of industrial campuses, rural broadband, and enterprise macro 5G rollouts.
The Aurora454 includes an embedded 5G core (HaloB), full TR-069 management support, and IPsec-encrypted flexible xHaul backhaul. Antennas are external (4T4R) with N-type connectors. Built to carrier-grade standards, it includes lightning protection, passive cooling, and IP66 ingress protection.
Deployment Requirements
To deploy the Baicells Aurora454, you’ll need:
- IP backhaul: Three 10GE SFP+ ports and one 2.5GE RJ45 interface. IPsec-protected public or private xHaul.
- 5GC (5G core): Optional embedded HaloB 5GC or external standalone (SA) core integration.
- Power and mounting: Requires -48VDC input. Pole or wall mount. Optional AC version available (future release).
- Antennas: External high-gain 4T4R antennas required (N-type connectors).
- GPS synchronization: Required. External GPS antenna with N-type connector.
- Environmental considerations: IP66-rated for outdoor deployments. Max power draw 650W. Operating temperature: –40°C to 55°C.
Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.
Key Features
- Supports 5G NR Band n41 (2496–2690 MHz) with up to 100 MHz bandwidth per sector.
- Delivers 4x60W output power with 4x4 MIMO and external antenna support.
- Peak throughput of 1500 Mbps DL and 660 Mbps UL (with UL256QAM and 100 MHz bandwidth).
- Supports 1200 concurrent users in standalone mode (SA).
- Includes embedded HaloB 5GC, or deploy with external 5G core. SA mode only.
- TR-069, SSH, and web-based remote management. IPsec-secured xHaul.
- Ruggedized IP66-rated enclosure with lightning protection and passive cooling.
- EIRP configurable up to +50.78 dBm + antenna gain (G).
Kit Contents
- Baicells Aurora454 (Band n41 variant)
- Mounting hardware for pole or wall installation
- N-type connectors for 4T4R antennas and GPS
- 2.5GE RJ45 and 3x 10GE SFP+ ports
- External GPS antenna (not included)
We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
