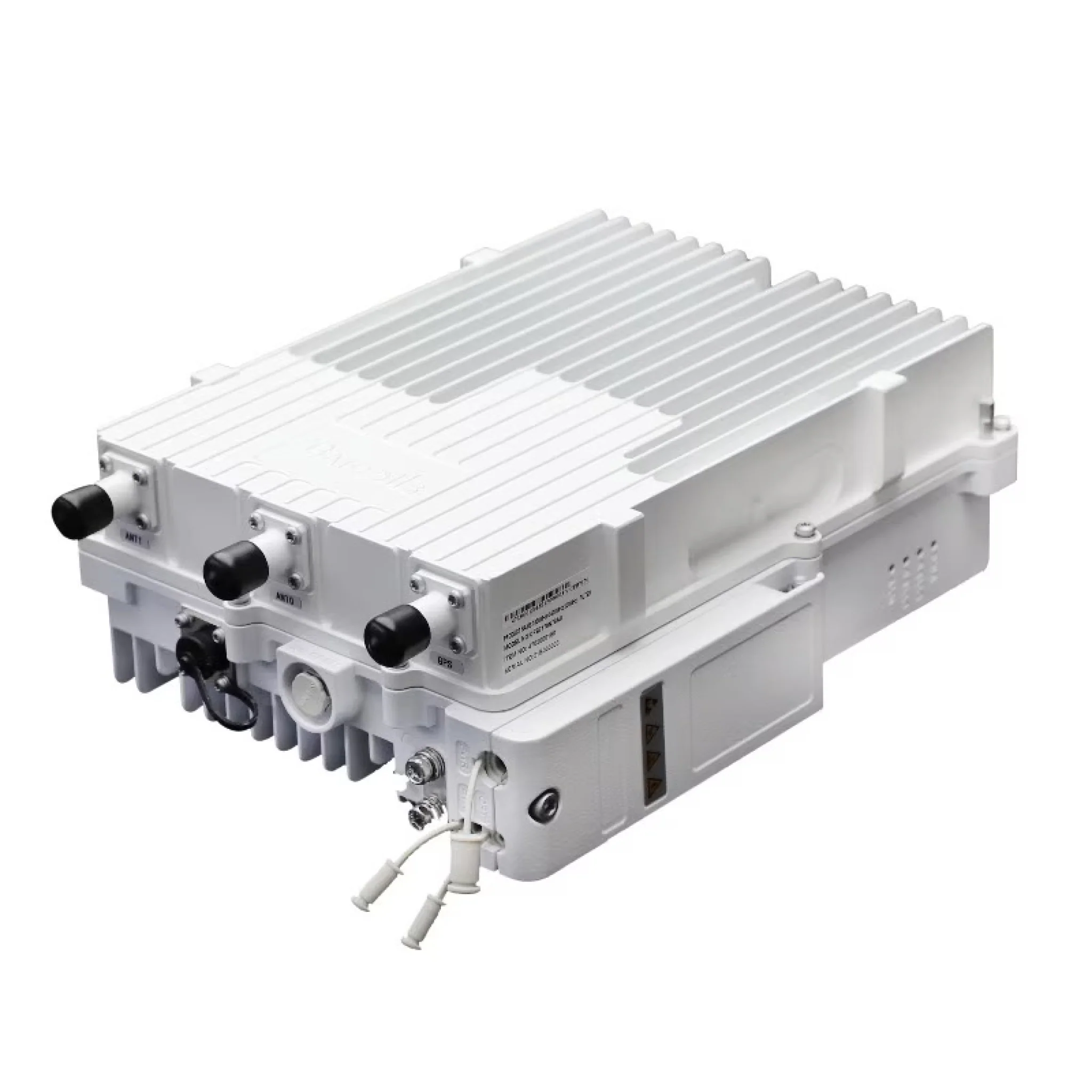

Baicells Aurora243: Outdoor 5G NR Base Station for Bands n41, n48, n77, n78, and n79
The Baicells Aurora243 is an integrated outdoor 5G NR (New Radio) base station designed for sub-6 GHz mid-band deployments across Bands n41, n48 (CBRS), n77, n78, and n79. Engineered for performance, the Aurora243 supports up to 100 MHz channel bandwidth, 2x2 MIMO, and downlink rates up to 850 Mbps with UL rates as high as 660 Mbps.
Its flexible architecture supports standalone (SA) mode with optional embedded 5G core (HaloB) and both integrated or external antenna options. Models are available with up to 2x10W power output (Band n48) or 2x3W (n77/n78), and can be powered by AC or DC input. The Aurora243 is ideal for enterprises, operators, and private networks needing cost-effective 5G coverage in compact form factors.
Deployment Requirements
To deploy the Baicells Aurora243, you’ll need:
- SAS registration: Required for n48 (CBRS) operation in the U.S. Not applicable for other bands.
- IP backhaul: Supported via SFP fiber or RJ45 Ethernet port with full IPsec encryption.
- 5GC (5G core): Optional embedded HaloB 5GC included or connect to external core.
- Power and mounting: AC (90–264V) or DC (–48V) input supported. Pole or wall mounting included.
- Antennas:
- Integrated 2T2R high-gain antenna included on most models.
- External N-type antenna ports available on external-antenna models.
- GPS synchronization: Required. External GPS antenna included (N-type).
- Environmental considerations: IP65-rated. Operates from –30°C to 55°C. Max power consumption: 150W.
Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.
Key Features
- Supports NR Bands n41, n48 (CBRS), n77, n78, and n79 across 10 to 100 MHz bandwidths.
- Delivers up to 2x10W (n48) or 2x3W (n77/n78) with 2x2 MIMO and peak downlink throughput of 850 Mbps.
- Supports up to 1200 concurrent users with 3GPP Release 15/16 compliance.
- Flexible deployment with standalone (SA) mode and embedded 5GC (HaloB) or external 5G core.
- Advanced radio features including UL 256QAM, 1588/GPS sync, and 5QI QoS.
- Supports xHaul over RJ45 or SFP with SCTP and TR-069 network management.
- Integrated antenna models include high-gain 13.5–14.5 dBi panel (based on band).
- IP65-rated enclosure with internal surge protection and passive cooling.
Kit Contents
- Baicells Aurora243 (Band n48, n41, n77, n78, or n79 variant)
- Integrated high-gain 2T2R antenna (select models)
- RJ45 and SFP backhaul ports
- Pole/wall mounting kit
- GPS antenna (N-type)
We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
Original: $10,999.00
-65%$10,999.00
$3,849.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Baicells Aurora243 is an integrated outdoor 5G NR (New Radio) base station designed for sub-6 GHz mid-band deployments across Bands n41, n48 (CBRS), n77, n78, and n79. Engineered for performance, the Aurora243 supports up to 100 MHz channel bandwidth, 2x2 MIMO, and downlink rates up to 850 Mbps with UL rates as high as 660 Mbps.
Its flexible architecture supports standalone (SA) mode with optional embedded 5G core (HaloB) and both integrated or external antenna options. Models are available with up to 2x10W power output (Band n48) or 2x3W (n77/n78), and can be powered by AC or DC input. The Aurora243 is ideal for enterprises, operators, and private networks needing cost-effective 5G coverage in compact form factors.
Deployment Requirements
To deploy the Baicells Aurora243, you’ll need:
- SAS registration: Required for n48 (CBRS) operation in the U.S. Not applicable for other bands.
- IP backhaul: Supported via SFP fiber or RJ45 Ethernet port with full IPsec encryption.
- 5GC (5G core): Optional embedded HaloB 5GC included or connect to external core.
- Power and mounting: AC (90–264V) or DC (–48V) input supported. Pole or wall mounting included.
- Antennas:
- Integrated 2T2R high-gain antenna included on most models.
- External N-type antenna ports available on external-antenna models.
- GPS synchronization: Required. External GPS antenna included (N-type).
- Environmental considerations: IP65-rated. Operates from –30°C to 55°C. Max power consumption: 150W.
Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.
Key Features
- Supports NR Bands n41, n48 (CBRS), n77, n78, and n79 across 10 to 100 MHz bandwidths.
- Delivers up to 2x10W (n48) or 2x3W (n77/n78) with 2x2 MIMO and peak downlink throughput of 850 Mbps.
- Supports up to 1200 concurrent users with 3GPP Release 15/16 compliance.
- Flexible deployment with standalone (SA) mode and embedded 5GC (HaloB) or external 5G core.
- Advanced radio features including UL 256QAM, 1588/GPS sync, and 5QI QoS.
- Supports xHaul over RJ45 or SFP with SCTP and TR-069 network management.
- Integrated antenna models include high-gain 13.5–14.5 dBi panel (based on band).
- IP65-rated enclosure with internal surge protection and passive cooling.
Kit Contents
- Baicells Aurora243 (Band n48, n41, n77, n78, or n79 variant)
- Integrated high-gain 2T2R antenna (select models)
- RJ45 and SFP backhaul ports
- Pole/wall mounting kit
- GPS antenna (N-type)
We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
