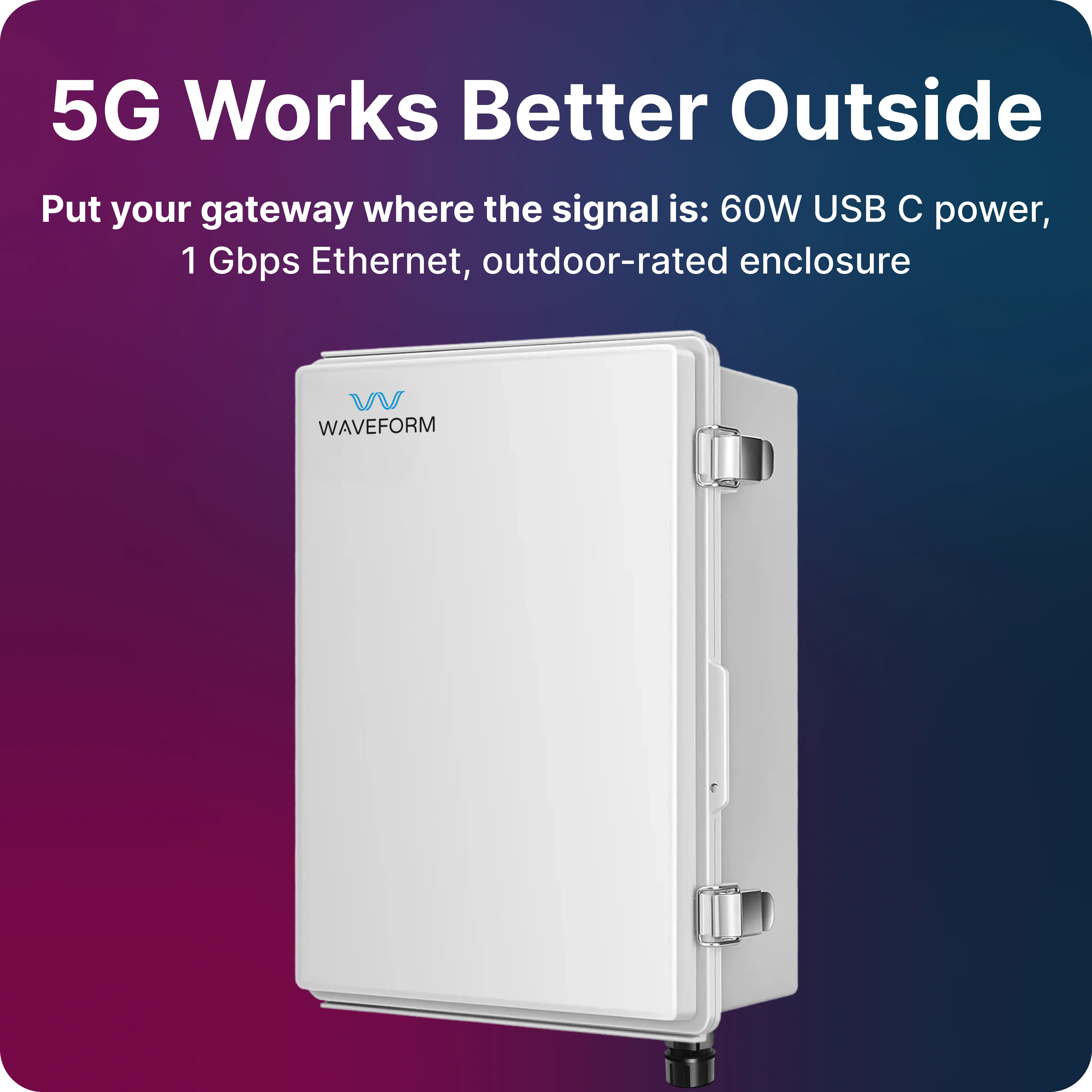

Waveform Outdoor Gateway Enclosure

The Waveform Outdoor Gateway Enclosure is a weather rated housing that lets you place and mount your USB-C-powered cellular gateway outdoors, where cellular signal is stronger and less obstructed. No opening, drilling into, or modifying the device needed.

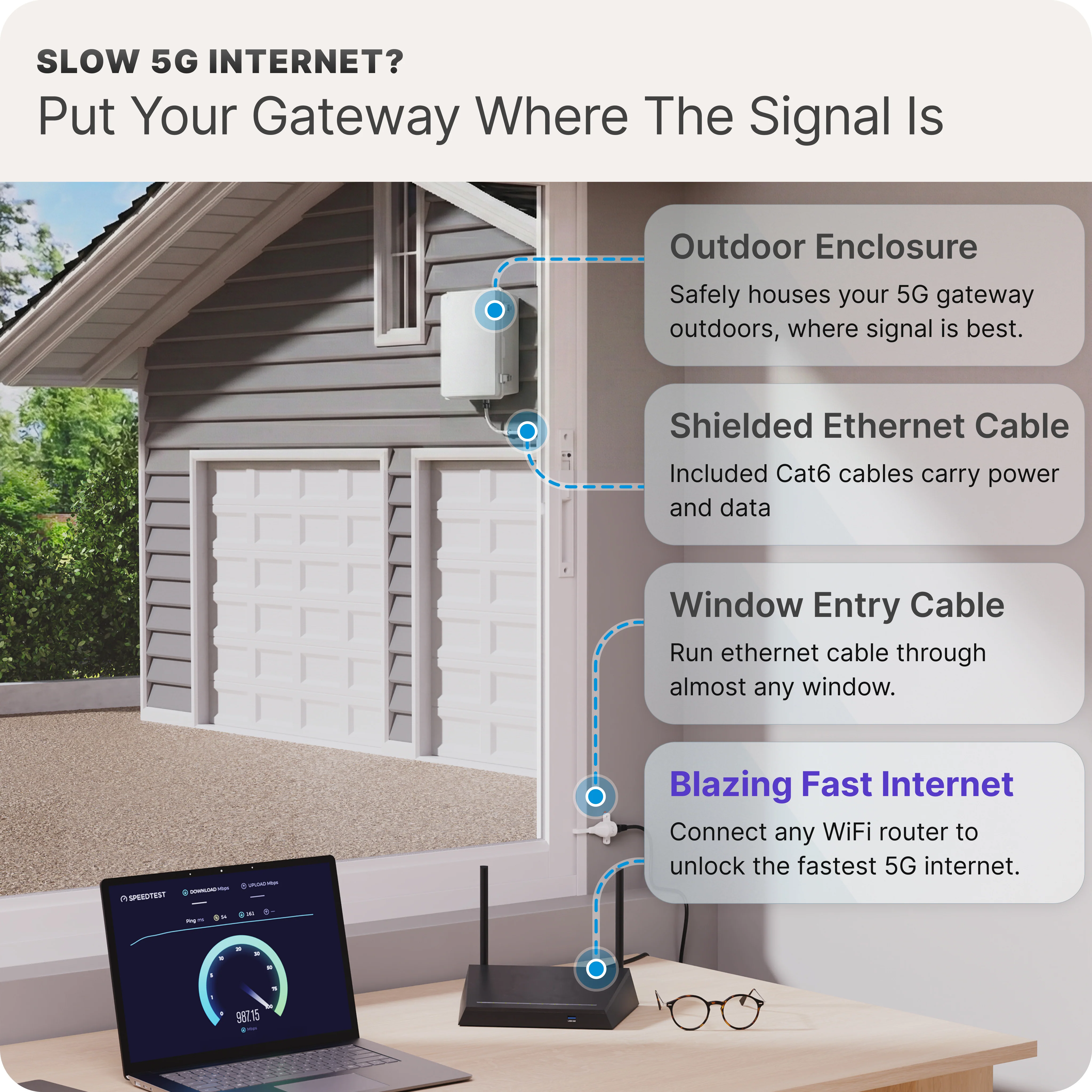

This is a straightforward, turn-key solution - mount the enclosure outside, connect your gateway to the pre-installed PoE-to-USB-C splitter, and run a single Ethernet cable indoors to your router. By placing the gateway where cellular signal is strongest, you can achieve faster, more stable performance than any indoor placement allows.

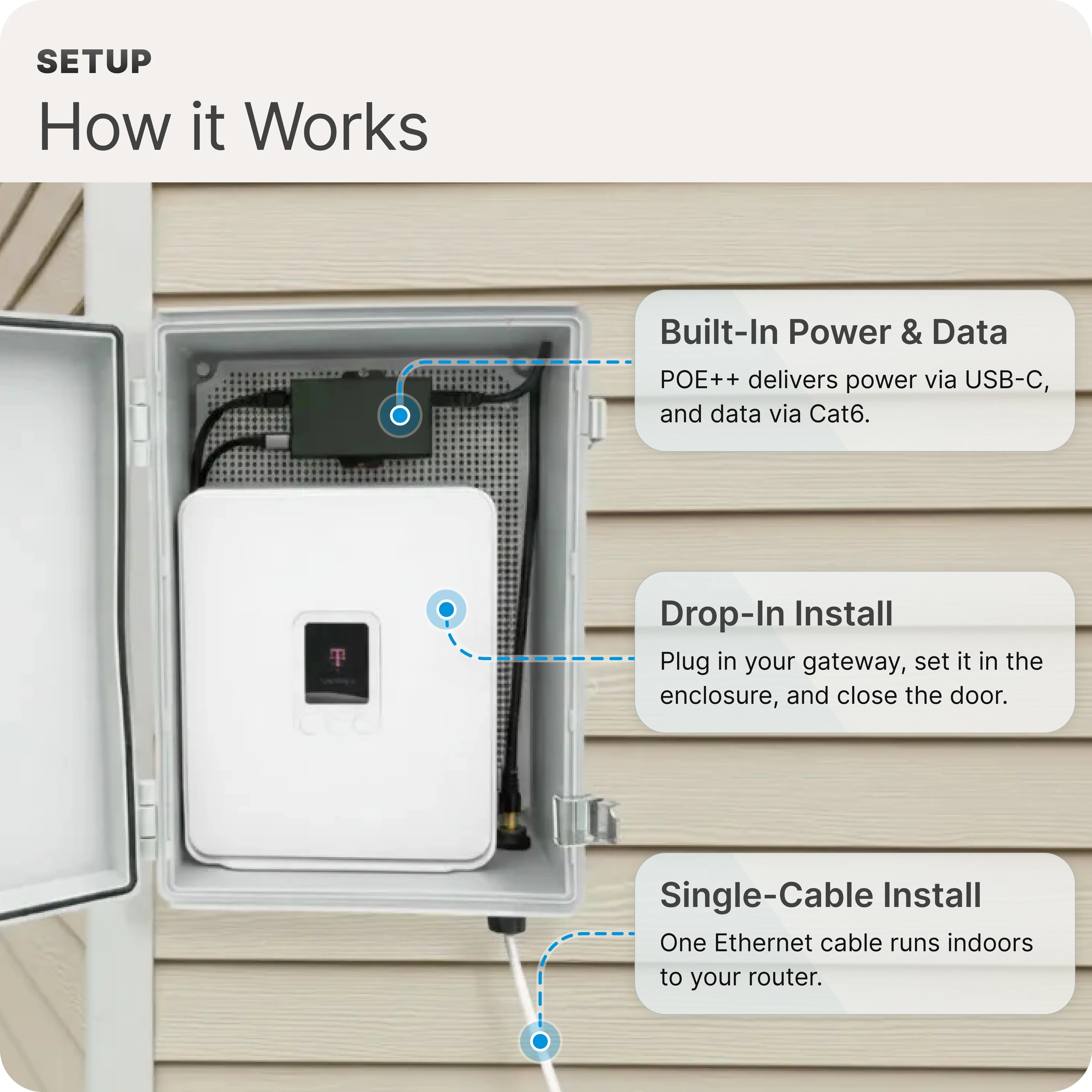

Power and data travel over a single Ethernet cable using 802.3bt PoE++. Inside the enclosure, a pre-installed splitter delivers 60W via USB-C and gigabit data directly to your gateway.

Features

• Designed for T-Mobile Home Internet (G5AR/G5SE, G4AR/G4SE): Precision-sized to securely house T-Mobile gateways, with integrated power and networking components pre-installed. Also compatible with any USB-C-powered gateway up to 9.5" tall, 8" wide, and 5.1" deep drawing up to 60W.

• No Device Modification Required: Carrier gateways like the G5AR have no external antenna ports. Adding them means opening the device, attaching adapters to the PCB, and voiding your warranty. This enclosure improves performance through placement - the gateway stays sealed and intact.

• −2°F to 125°F: We've stress-tested the T-Mobile G5AR inside the enclosure from −2°F to 125°F under simultaneous 5G, Wi-Fi, and Ethernet loads and it performed without issue at both extremes. The enclosure is fully sealed to keep out humidity and dust which, in our experience, causes more long-term damage to outdoor equipment than temperature alone.

• Outdoor-rated and UV Resistant: Weatherproof enclosure protects against rain, dust, sun exposure, and typical outdoor conditions year round.
• Single-cable Outdoor Connection: Power and data travel over one Ethernet cable using 802.3bt PoE++, delivering up to 60W (20V/3A) of power and up to 1 Gbps of data to the enclosure. Inside, a pre-installed splitter cleanly separates those into USB-C power and Cat6 Ethernet for your gateway.
• Lockable Enclosure: The door includes a locking point for a standard padlock, keeping the gateway secure once mounted.

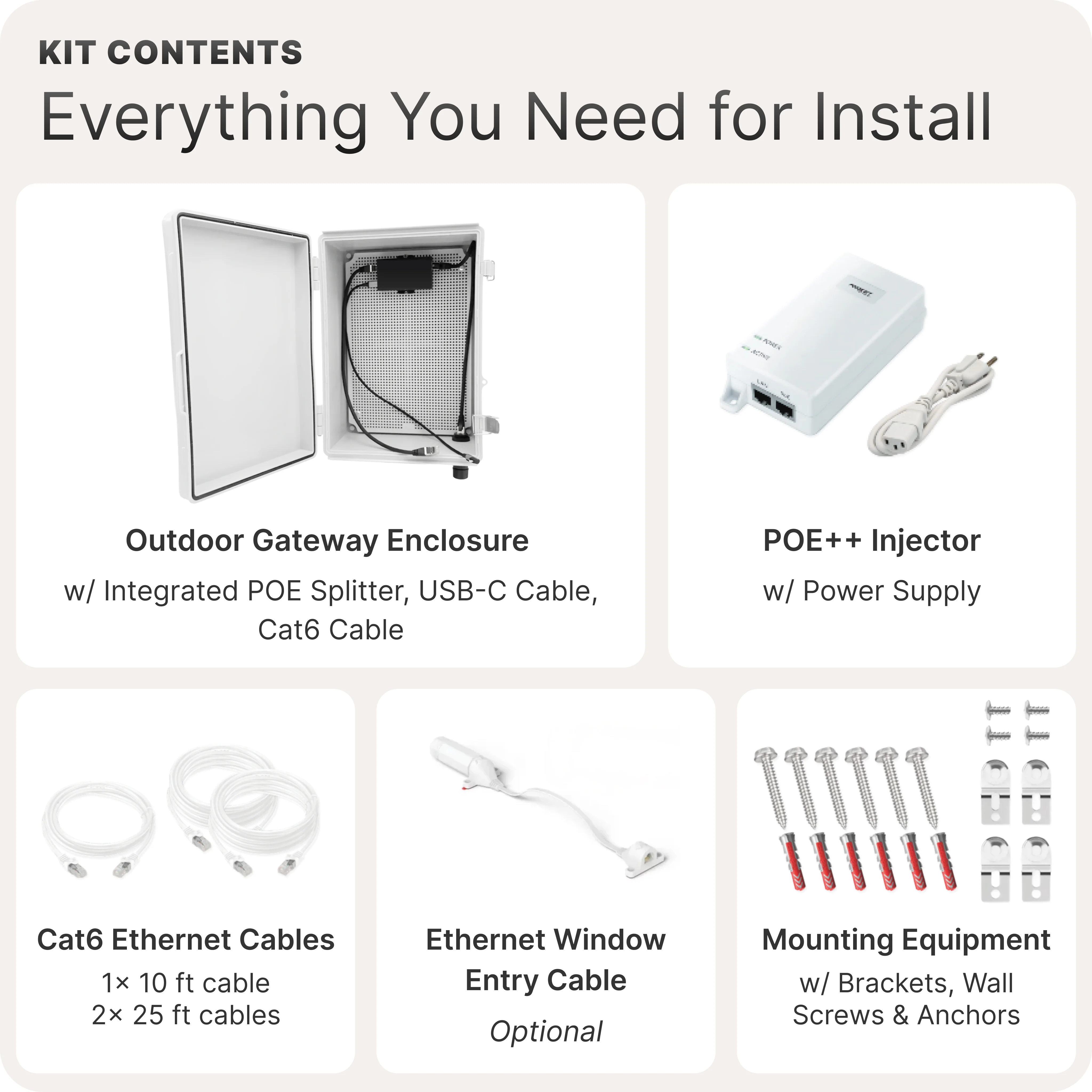

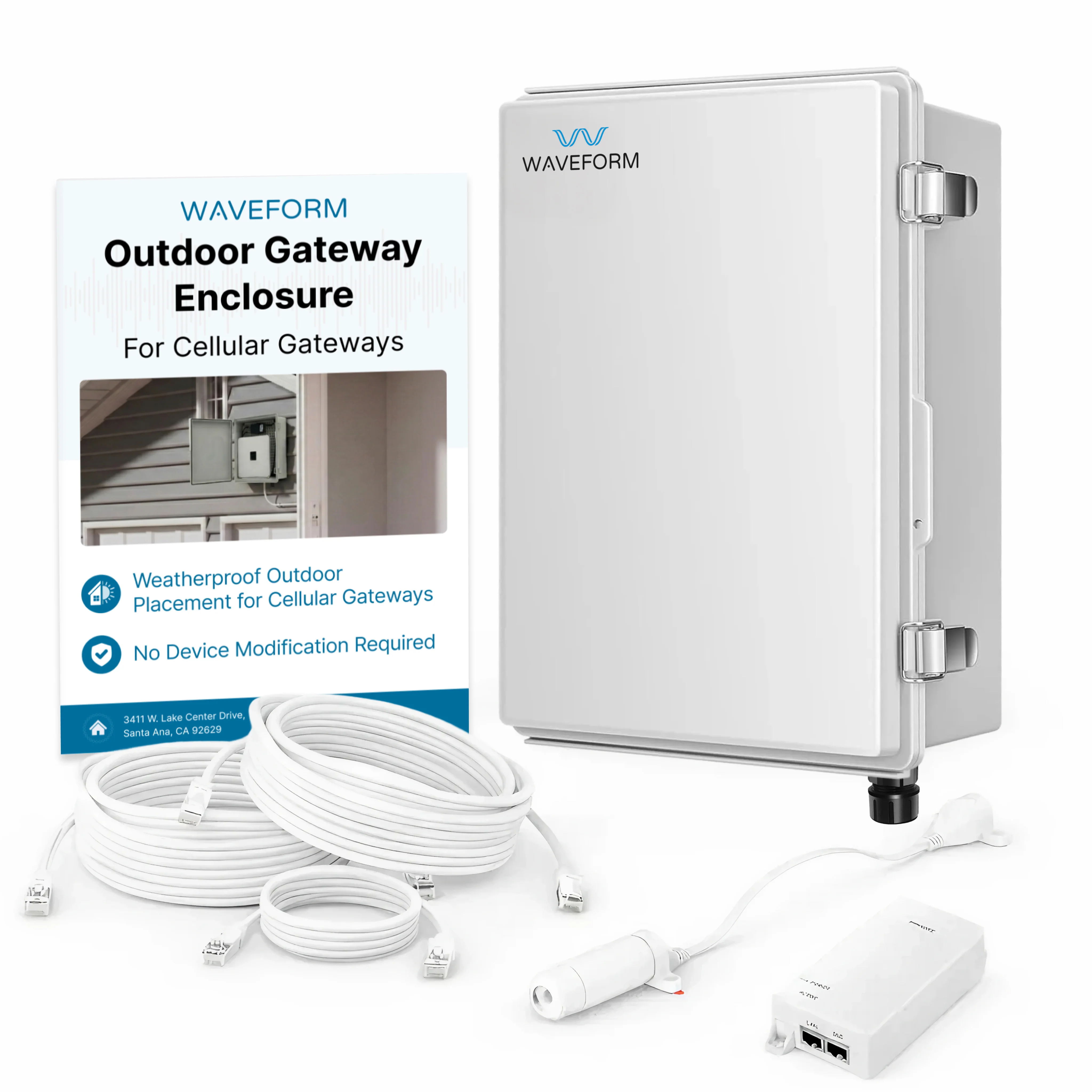

• Complete Mounting and Cabling Kit: Includes wall-mount hardware, two 25 ft and one 10 ft outdoor-rated Cat6 cables, and a window-entry cable for clean installs without wall drilling. No pole mount included - unlike directional antennas, the gateway's built-in omnidirectional antennas don't need to be aimed. Wall mounting works well in most installs.
