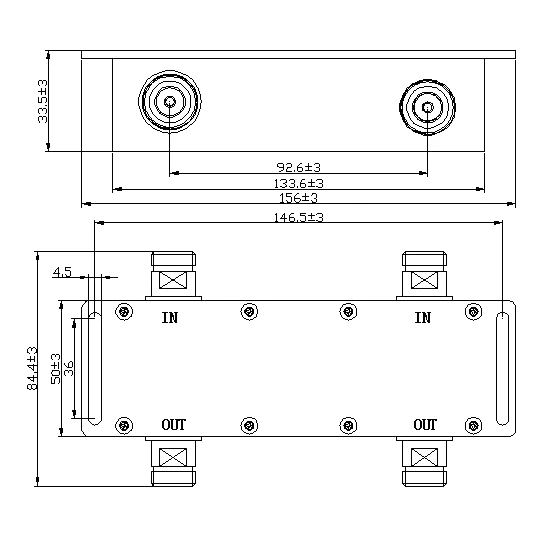

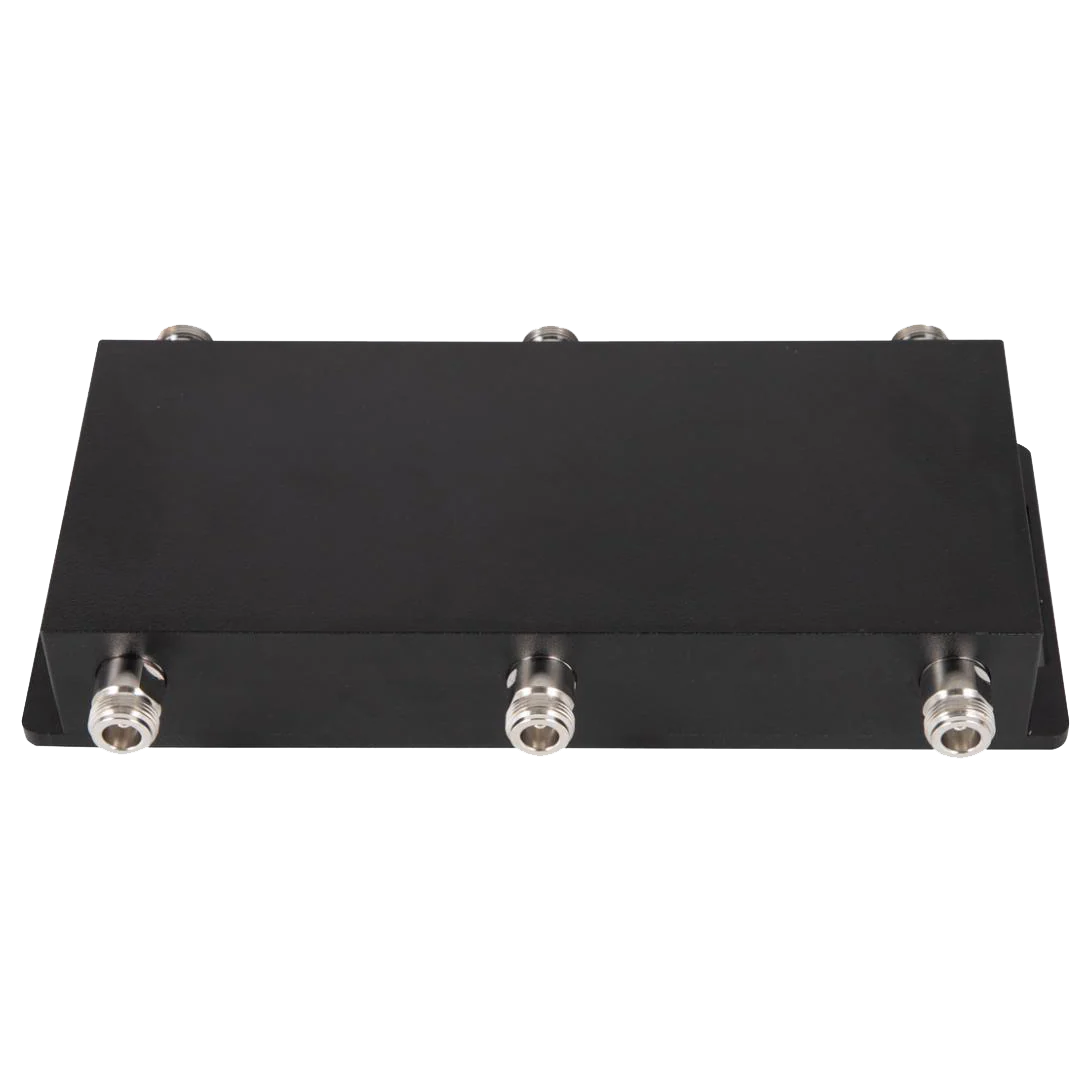

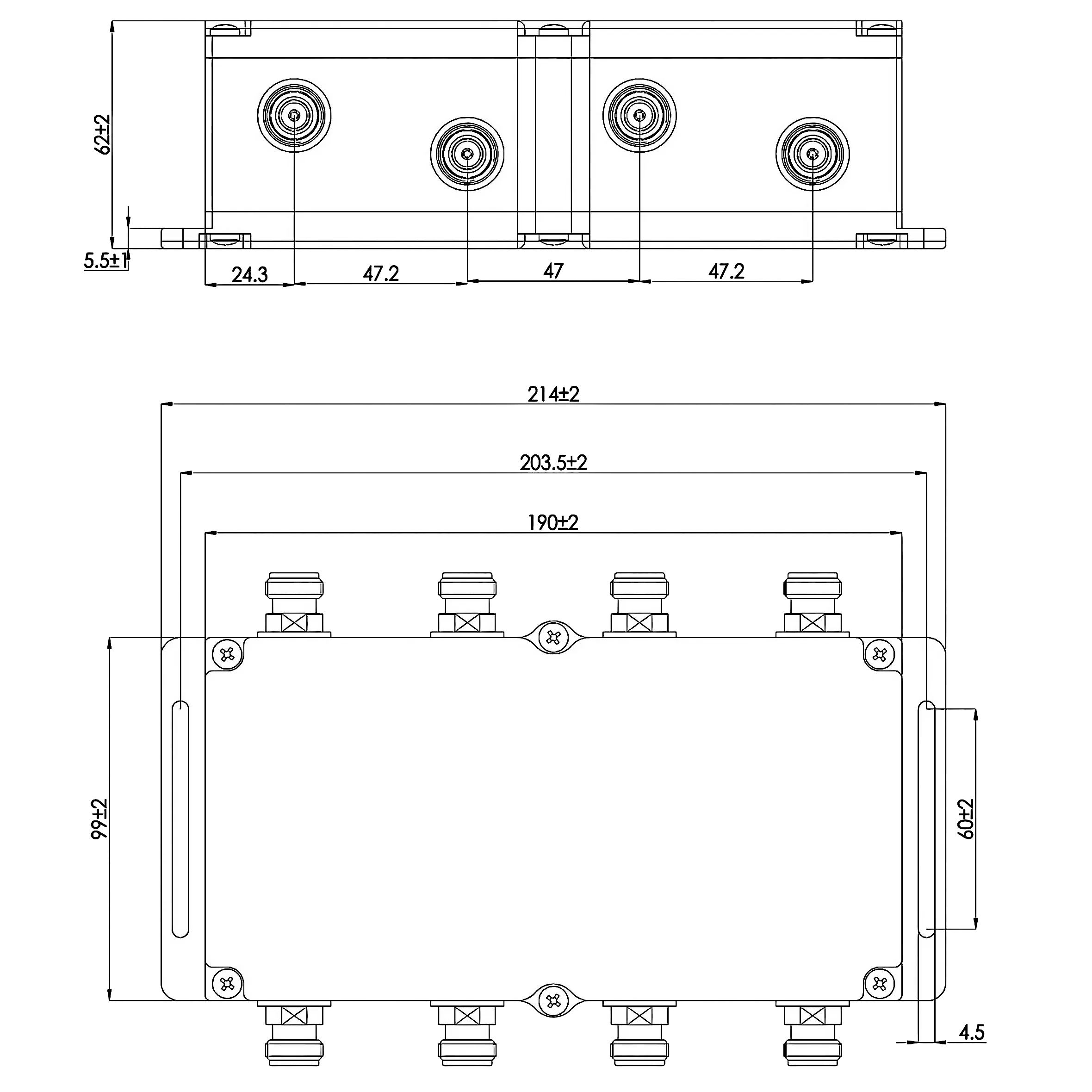

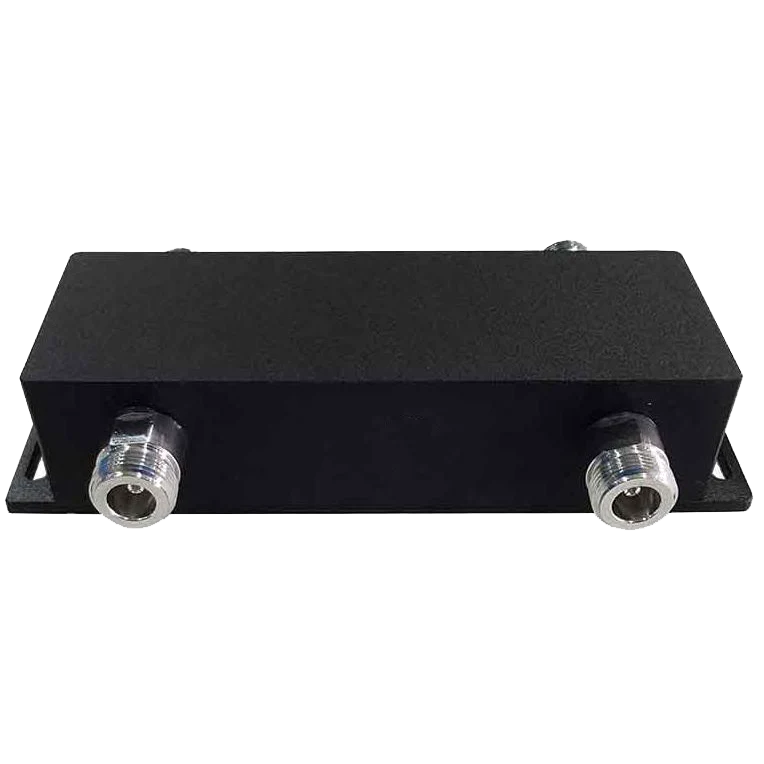

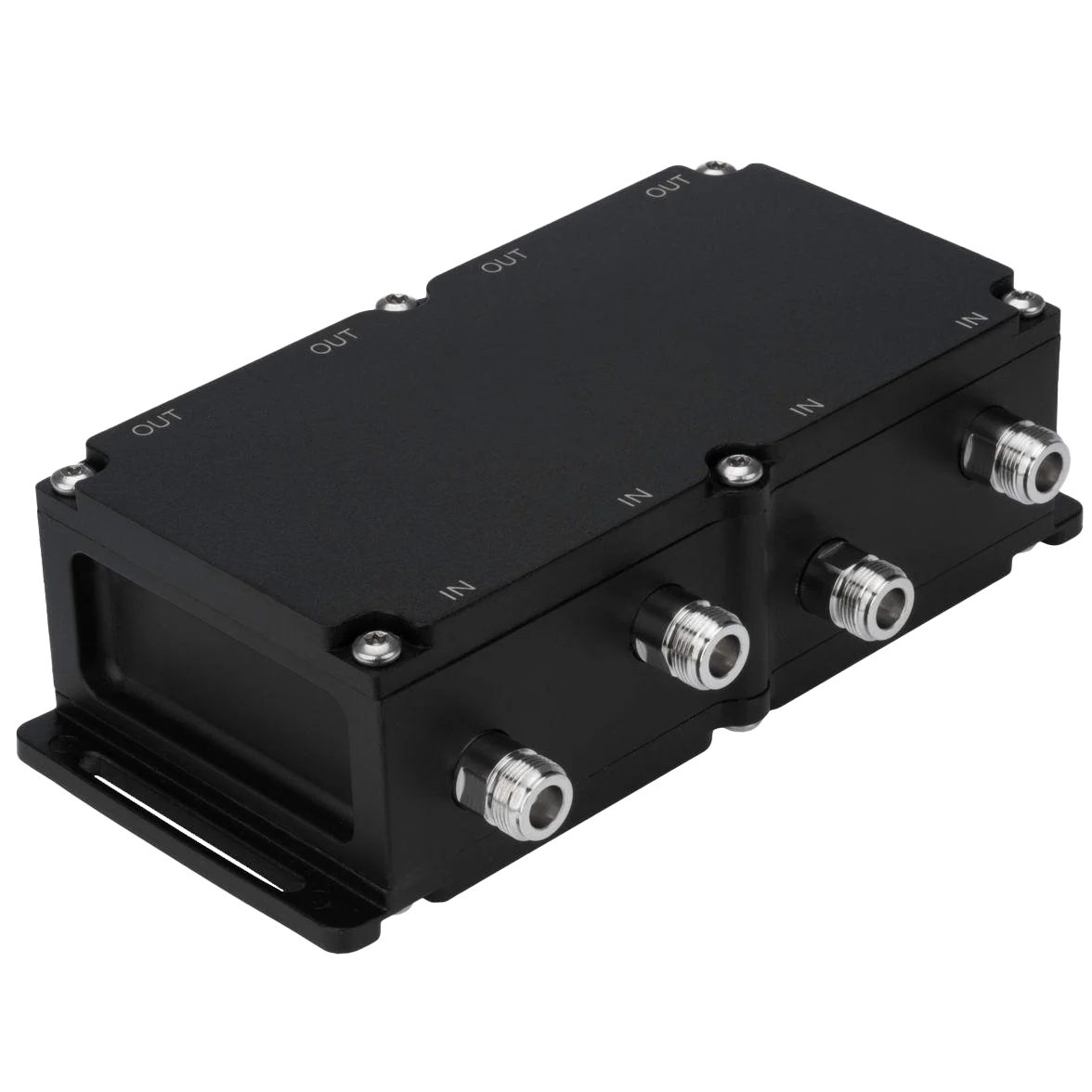

N-Female Hybrid Couplers (2x2, 3x3 and 4x4), 600 - 4200 MHz
The Waveform Hybrid Couplers are a low PIM, low VSWR coupler. It works on a wideband 600-4200 MHz frequency range.
It is a 50 Ohm coupler with N-Female connectors.
The Waveform Hybrid Couplers are most frequently used to connect a single set of indoor antennas to multiple independent cell phone signal boosters.
The most common use case we see is using multiple Cel-Fi GO X boosters (a single-carrier cell phone booster) to provide coverage for multiple carriers over a single set of indoor antennas. This way each antenna broadcasts each carrier, for maximum coverage!
Note: If any ports on a hybrid coupler are left unused, we offer the N-Male 50 Ohm Termination Load to cover the unused ports and reduce signal interference.
Specifications
- 600 - 4200 MHz Frequency Range
- 50 Ohm Impedance
- N-Female Connectors
- More than 20 dB Isolation
- Ultra-low PIM at ≤ -153 dBc
Original: $198.00
-65%$198.00
$69.30Product Information
