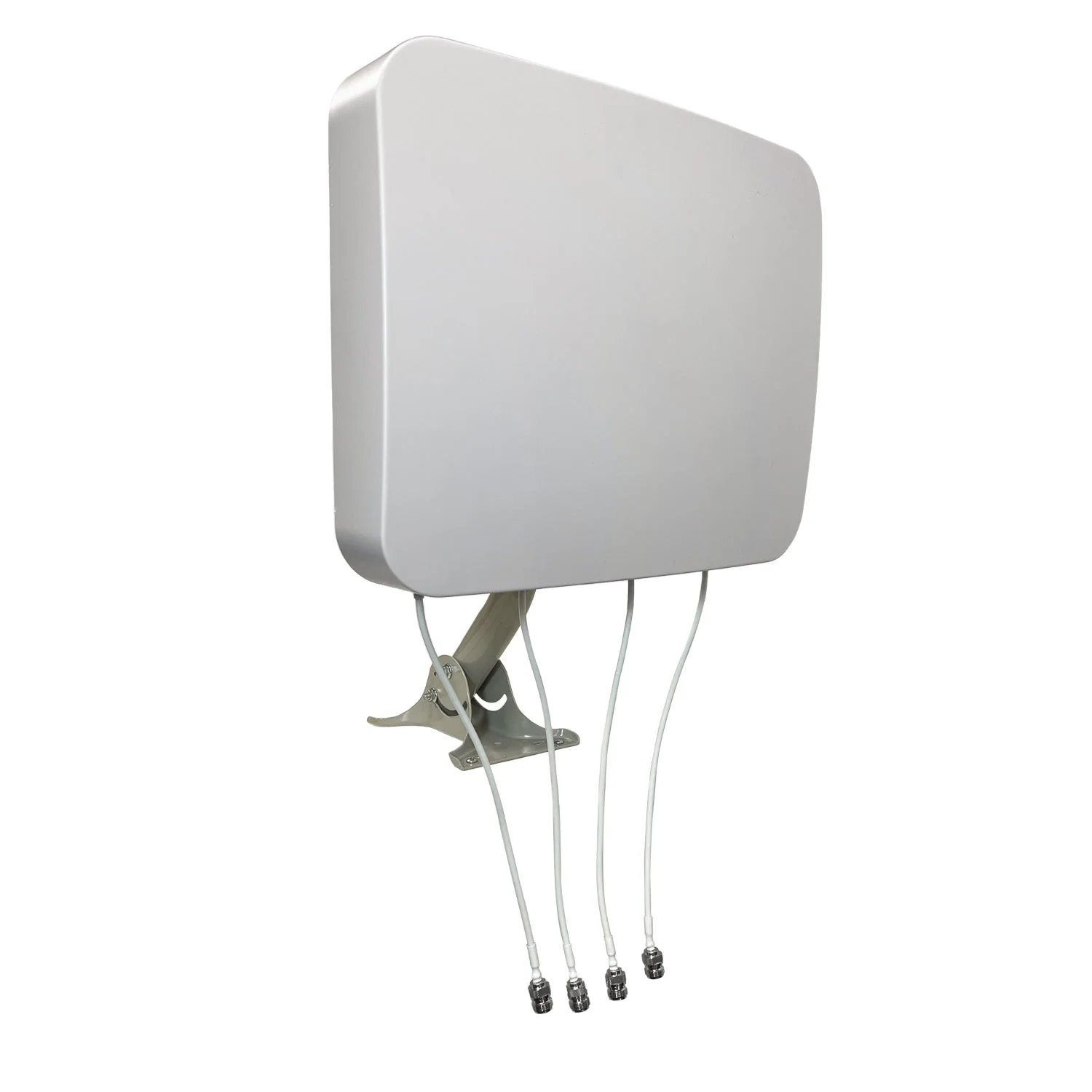

4x4 Cross-Polarized MIMO Outdoor Panel Antenna, 600 - 6000 MHz

Our +/- 45 degree, 4x4 cross-polarized MIMO panel antenna covers the most common 4G LTE bands in use today, as well as low-band and mid-band 5G frequencies. The antenna has four short pigtails with N-female connectors

This 4x4 cross-polarized antenna is also available as part of a kit including coax cables, surge protectors, adapters, and an antenna mount here: 4x4 MIMO Panel Antenna Kit for 4G LTE Routers/Hotspots.

Due to the pole-mounting hardware included with this antenna, it is not suitable for indoor use.

Please note: This antenna is pictured with, but does not include, our Universal J-Mount.

Features

• Up to 6 dBi gain between 600 and 960 MHz, and up to 8 dBi gain between 1700 and 6000 MHz.
• +/- 45 degreee cross-polarization.
• 4x N-Type Female connectors

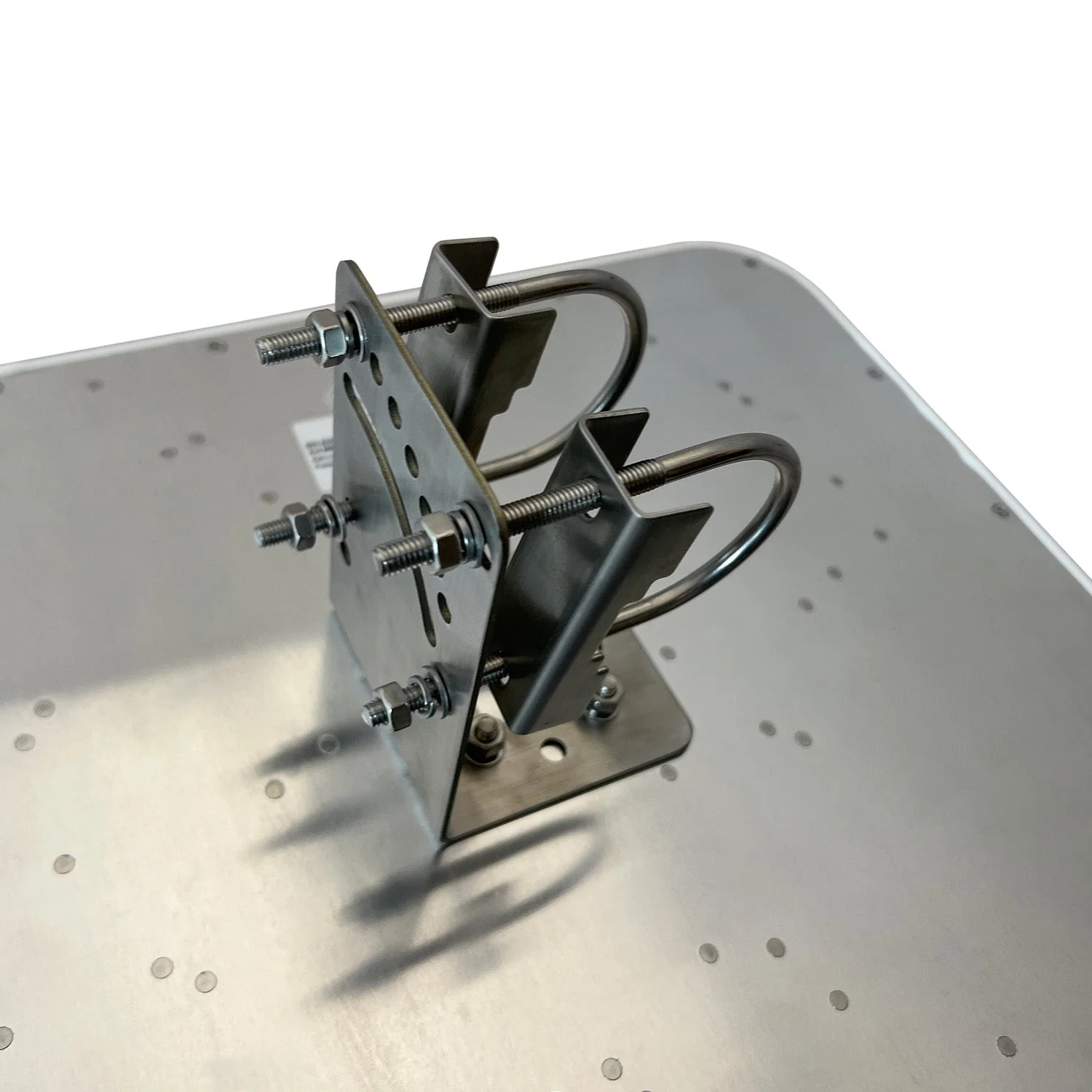

• Includes pole-mounting hardware (but not the J-mount pictured)

Frequency Bands Support

Our wideband 4x4 MIMO panel antennas support almost every 3G, 4G LTE, and low/mid-band 5G service in use in the US and across the world today:

Supports all 4G LTE and 5G bands between 600 and 6000 MHz, including:

• AT&T: B2/n2, B4, B5/n5, B12, B17, B29, B30, B46, B66/n66, n77
• Verizon: B2/n2, B4, B5/n5, B13, B46, B48/n48, B66/n66, n77
• T-Mobile: B2, B4, B5, B12, B25, B26, B41/n41, B46, B66, B71/n71, n77
• Private 4G LTE and 5G: CBRS, B48/n48

All supported US Frequency Bands:

• Band 2 (1900 MHz)
• Band 4 (1700/2100 MHz)
• Band 5 (850 MHz)
• Band 12 (700 MHz)
• Band 13 (700 MHz)
• Band 14 (700 MHz)
• Band 17 (700 MHz)
• Band 25 (1900 MHz)
• Band 26 (850 MHz)
• Band 29 (700 MHz)
• Band 30 (2100 MHz)
• Band 46 (5200 MHz)
• Band 48 (3500 MHz)
• Band 66 (2100 MHz)
• Band 71 (600 MHz)
• Band 77 (3700 MHz)

All supported LTE Bands: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B14, B17, B18, B19, B20, B21, B22, B25, B26, B28, B29, B30, B32, B34, B37, B38, B39, B40, B41, B42, B43, B46, B47, B48, B50, B51, B53, B65, B66, B67, B69, B70, B71, B74, B75, B76, B85, B103, B106

All supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n46, n47, n48, n50, n51, n53, n65, n66, n67, n70, n71, n74, n75, n76, n77, n78, n79, n80, n81, n82, n83, n84, n85, n86, n89, n90, n91, n92, n93, n94, n95, n96, n97, n98, n99, n100, n101, n102, n105
