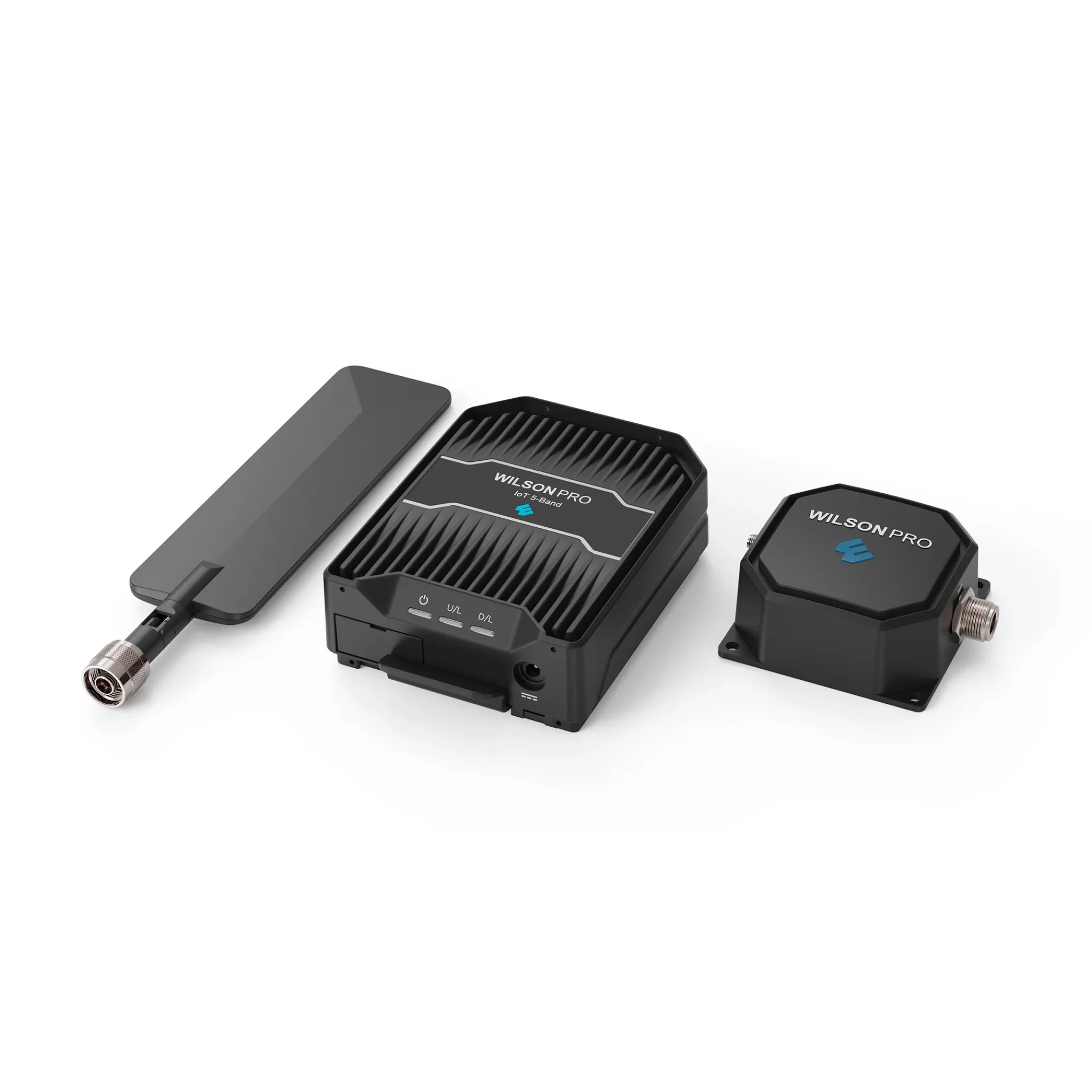

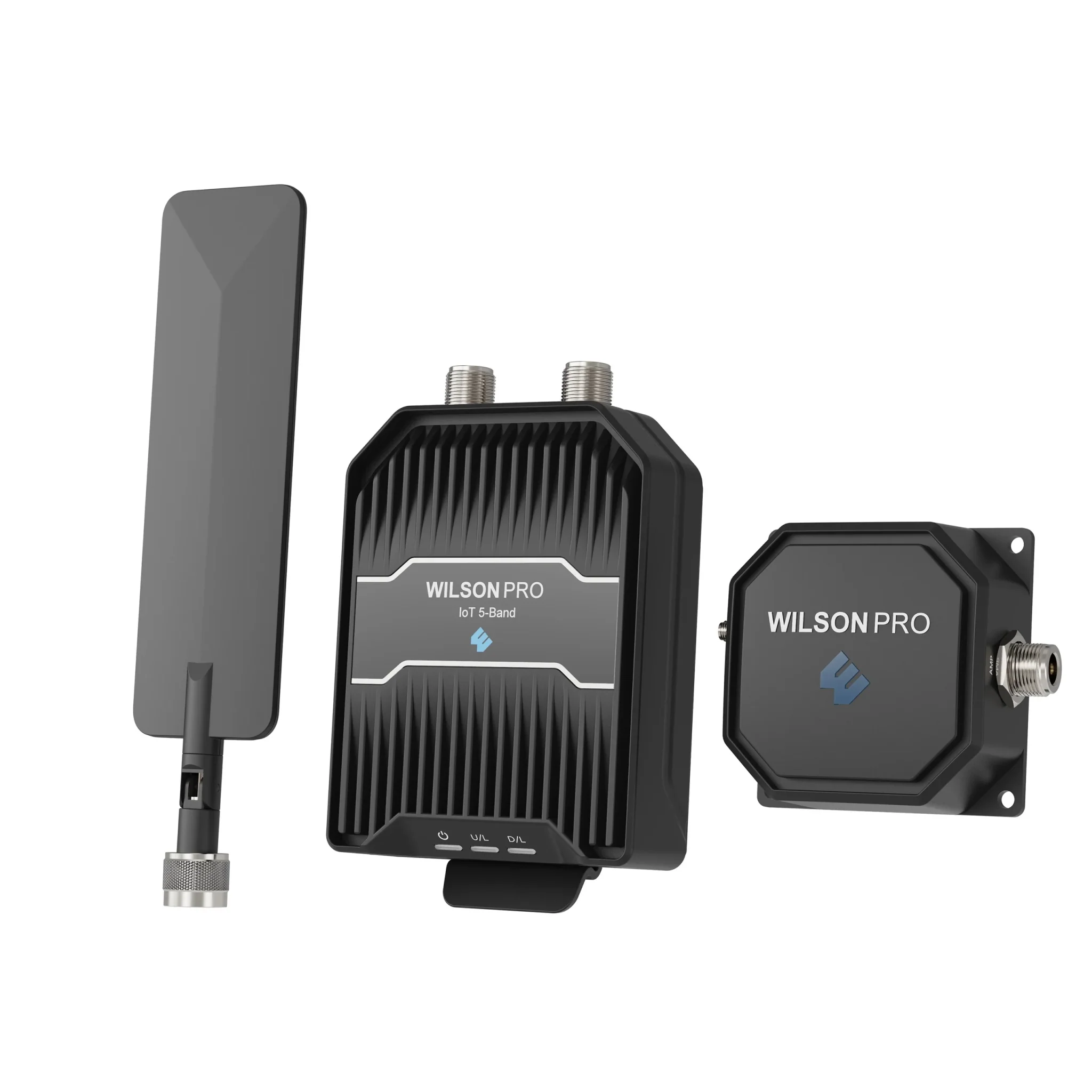

WilsonPro IoT 3.0
The WilsonPro IoT 3.0 is a direct-connect signal booster purpose-built for integrators and OEMs who need reliable, compact amplification in challenging cellular environments. This versatile amplifier is ideal for boosting data transmission for embedded IoT and M2M devices — from vending machines and ATMs to smart security panels and industrial sensors.
Where cellular signals are weakened by distance, obstructions, or building materials like concrete and metal, the IoT 3.0 ensures a strong and stable data connection.
Designed for a wide range of data-driven applications that require consistent, always-on cellular connectivity. It’s ideal for powering connectivity in ATMs, kiosks, vending machines, and other commercial installations with access to wall power. It also supports mobile deployments such as LTE hotspots and routers in vehicles through its hardwired DC power option.
Key Features
- Direct-connect amplifier for cellular-enabled IoT devices and modems.
- Improves cellular performance in areas with weak signal coverage.
- Compact and configurable, ideal for constrained installation spaces.
- Power over Coax (PoC) support allows remote placement of the antenna for optimal performance.
- Passive RF bypass failover keeps modems running even if power is lost.
- Auto-power control maximizes gain while maintaining FCC compliance.
- Pre-approved by all major U.S. carriers under FCC Part 20 rules.
- Compatible with all U.S. cellular networks.
Compatibility
The WilsonPro IoT 5-Band is compatible with all U.S. carrier networks.
The WilsonPro IoT 3.0 compatible with all major U.S. carrier networks. It works on the following frequency bands:
- Band 12: 698–716 MHz
- Band 13: 746–787 MHz
- Band 5: 824–894 MHz
- Band 4: 1710–1755/2110–2155 MHz
- Band 25/2: 1850–1995 MHz
The WilsonPro IoT 3.0 is the latest version of the IoT 5-Band.

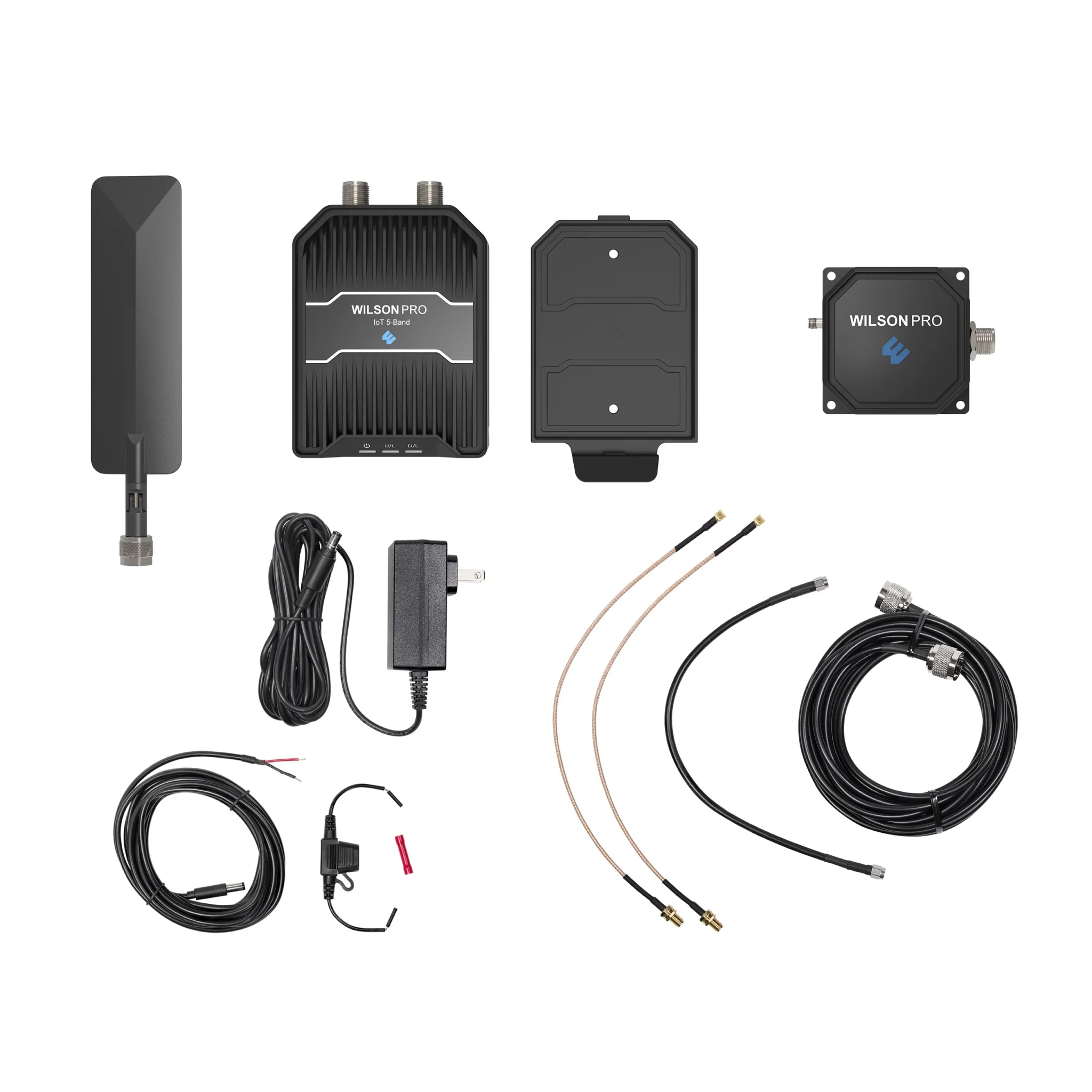

Kit Contents

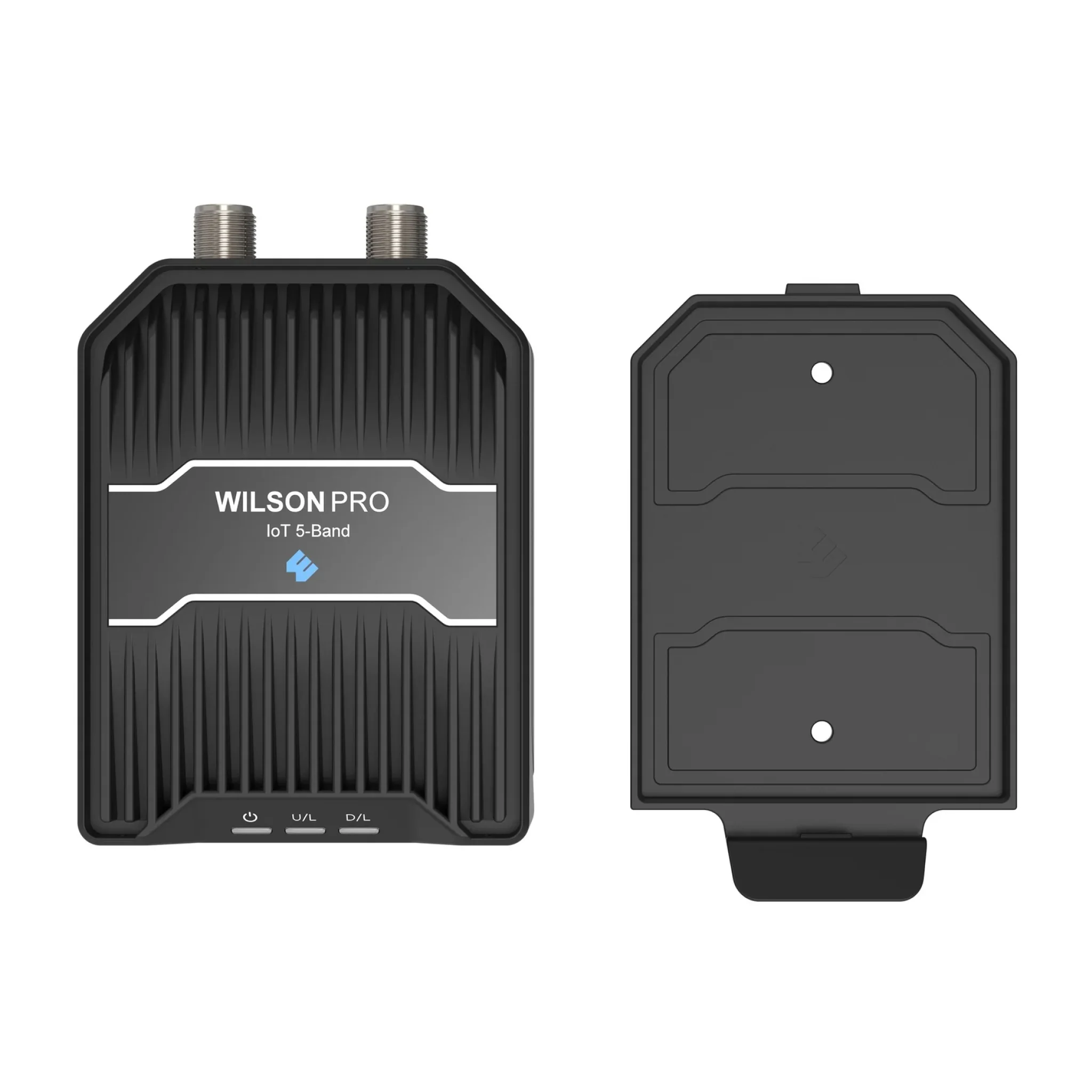

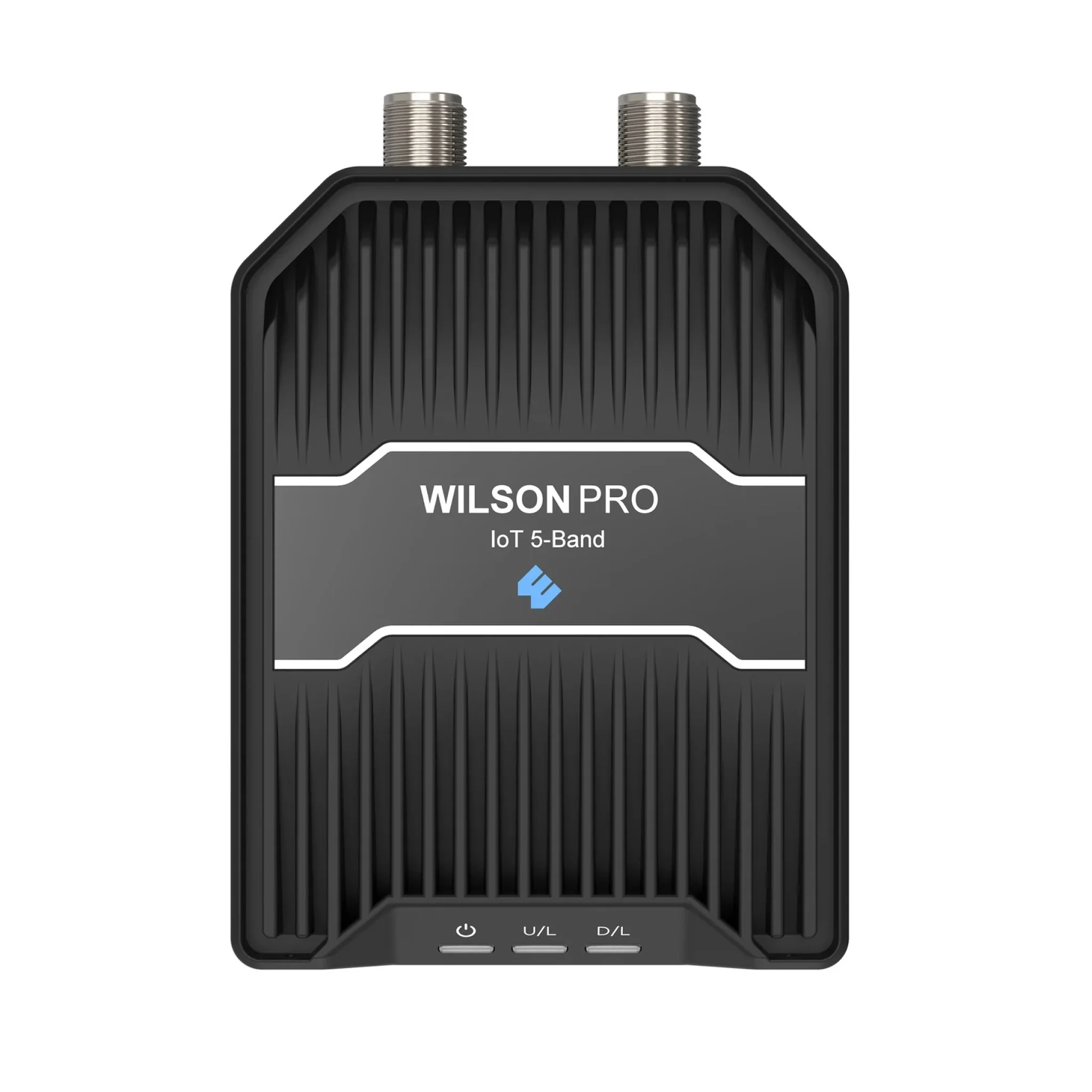

- IoT 3.0 Amplifier & Wall Mount Bracket (460079)
- External Hinged Antenna

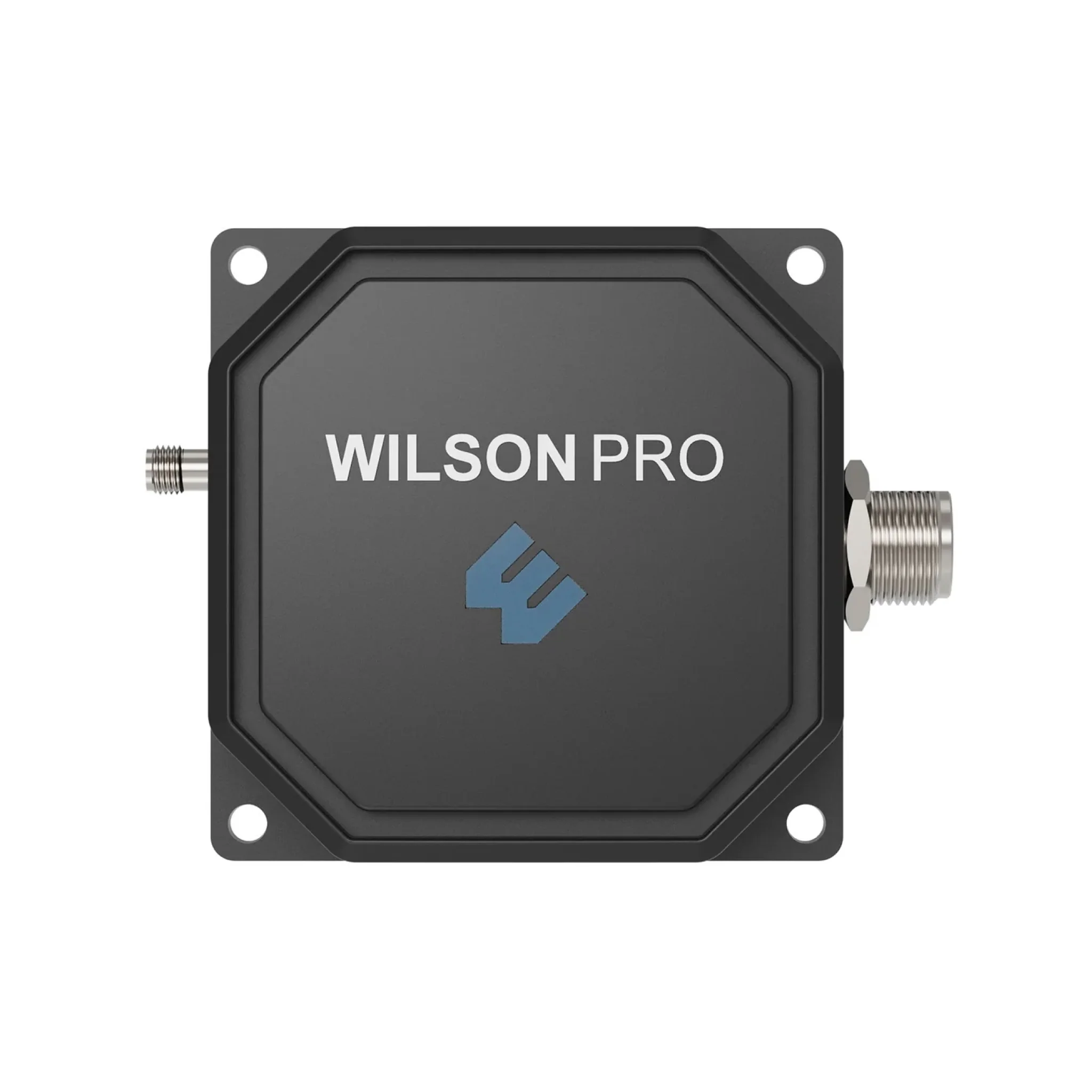

- Power Over Coax Unit
- 20’ N-Male to N-Male Cable
- 1’ SMA-Male to SMA-Male Cable
- 1’ SMA-Male to MMCX Cable (299154)
- 1’ SMA-Male to MCX Cable (291153)
- 12V AC/DC Power Supply
- 12V DC Hardwire Power Cable
