WilsonPro Enterprise 4330 Signal Booster Kit

The WilsonPro Enterprise 4330/4330R is a high-performance, wall-mounted commercial-grade cellular signal booster system designed to enhance 4G LTE and low-band 5G coverage in large buildings. Covering up to 100,000 sq ft in perfect conditions, it ensures reliable voice, text, and data connectivity across all major North American carriers.

Key Features:

• High Uplink & Downlink Power: Up to 26 dBm uplink power for the 3 outdoor antenna ports and 17 dBm downlink power per port for the four indoor antenna ports, providing strong and consistent coverage across large spaces.


• Split Mode Capability: Supports multiple outdoor antennas targeting different cell towers, maximizing indoor signal distribution.


• Cloud-Based Monitoring: Integrated WilsonPro Cloud access allows for remote monitoring and management via LTE or Ethernet.


• Extended Dynamic Range (XDR): By adjusting the gain, XDR technology ensures the amplifier remains operational even in areas with strong external signals, preventing system shutdowns and maintaining reliable performance.

• LCD Touchscreen: User-friendly color LCD touchscreen for quick access to system configuration and performance monitoring.


The WilsonPro Enterprise 4330/4330R also connects to the WilsonPro Cloud service.

5 Critical Tips for the WilsonPro Enterprise 4330/4330R

1. Take signal measurements before you buy

The WilsonPro 4330 and 4330R can cover up to an area of up to 100,000 square feet, but only if your outdoor signal is strong enough. This isn't true for just the Pro 4330 and 4330R, but across the board for all signal boosters.

We strongly recommend measuring your outdoor signal and speaking to our team of Signal Experts before you purchase. Our Signal Experts can help guide you to the best solution based on your signal conditions.

2. Getting your outdoor antenna positioned correctly is critical

As we explain in our Signal Booster Guide, the bars on your phone are more than just signal strength. Signal quality is absolutely critical.

The only way to improve the signal quality coming into your booster is getting the outdoor antenna positioned correctly. Our team of Signal Experts can help guide you as you install the Enterprise 4300.

3. Consider the WilsonPro 1300 and the WilsonPro 4330

The WilsonPro Enterprise 1300 only covers up to 40,000 square feet. Like the 4300, it comes with three outdoor antenna ports but only one indoor antenna port. It's a great contender if you only need a smaller area covered.

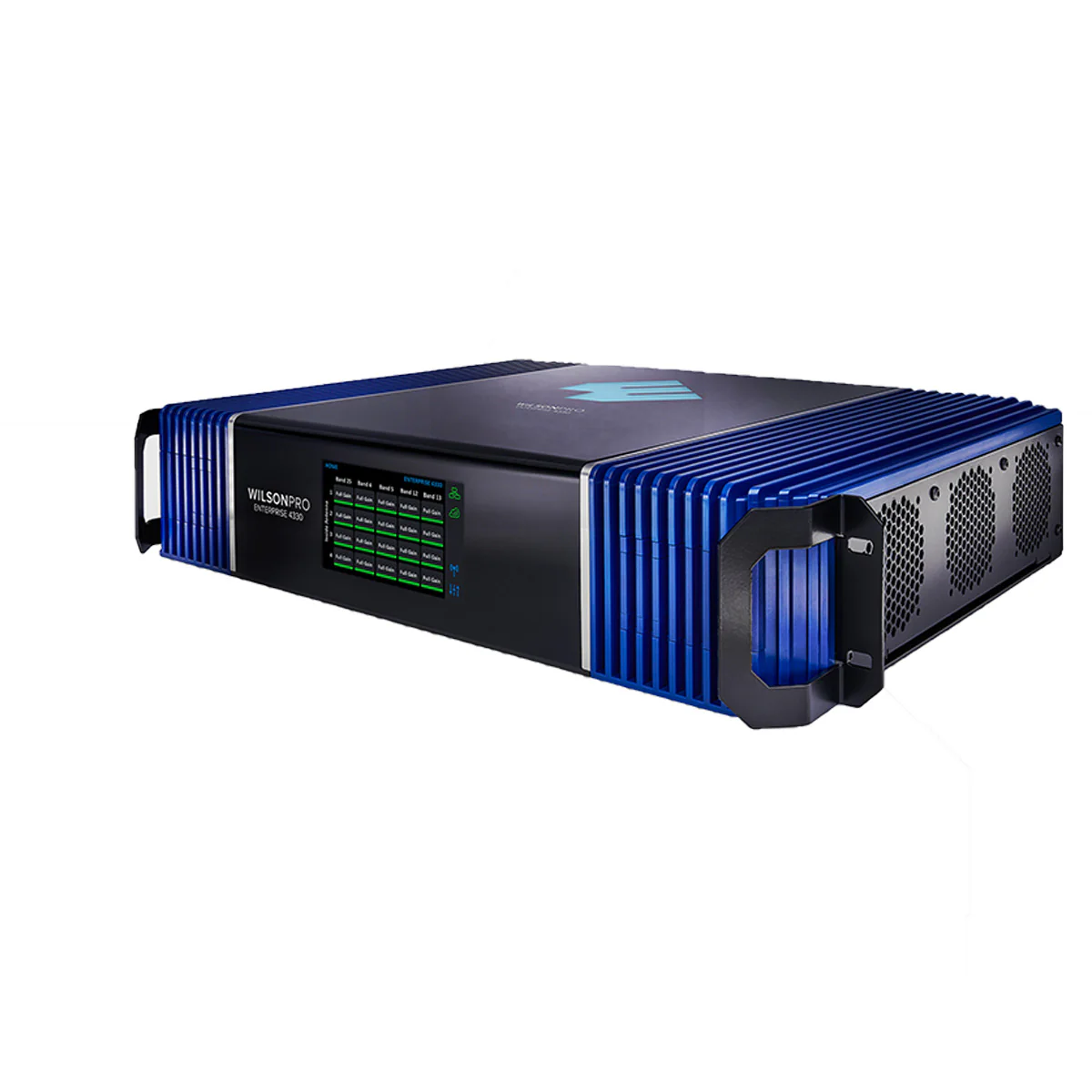

The WilsonPro Enterprise 4330R is identical to the Enterprise 4330, except that it comes in a rack-mount case.

4. Consider the Cel-Fi QUATRA 4000c

The Cel-Fi QUATRA 4000c targets a similar market to the WilsonPro line, however, it supports up to 4 carriers simultaneously in one system, with no need for separate ports or signal paths, which the FCC allows to utilize up to 100 decibels gain. The extra gain means the QUATRA works better in remote areas with very weak outdoor signal. The QUATRA also uses ethernet cable in place of coaxial cable.

It's not all upside, though. The QUATRA 4000c has both benefits and disadvantages. For example, each unit must be programmed for specific carriers, making less flexible than wideband solutions. Additionally, installation can be a little more complicated than the WilsonPro products.

5. The WilsonPro Enterprise 4330 and 4330R are designed to be part of a custom-designed system

There's a reason that Wilson doesn't allow these units to be sold online: they're supposed to be designed into a custom system, with multiple antennas, splitters, couplers, and custom-length cables.

We offer complimentary design services using the industry-standard iBwave in-building design software. Simply contact our Signal Specialists and we'll chat through your building and requirements and help put together a custom solution for you.

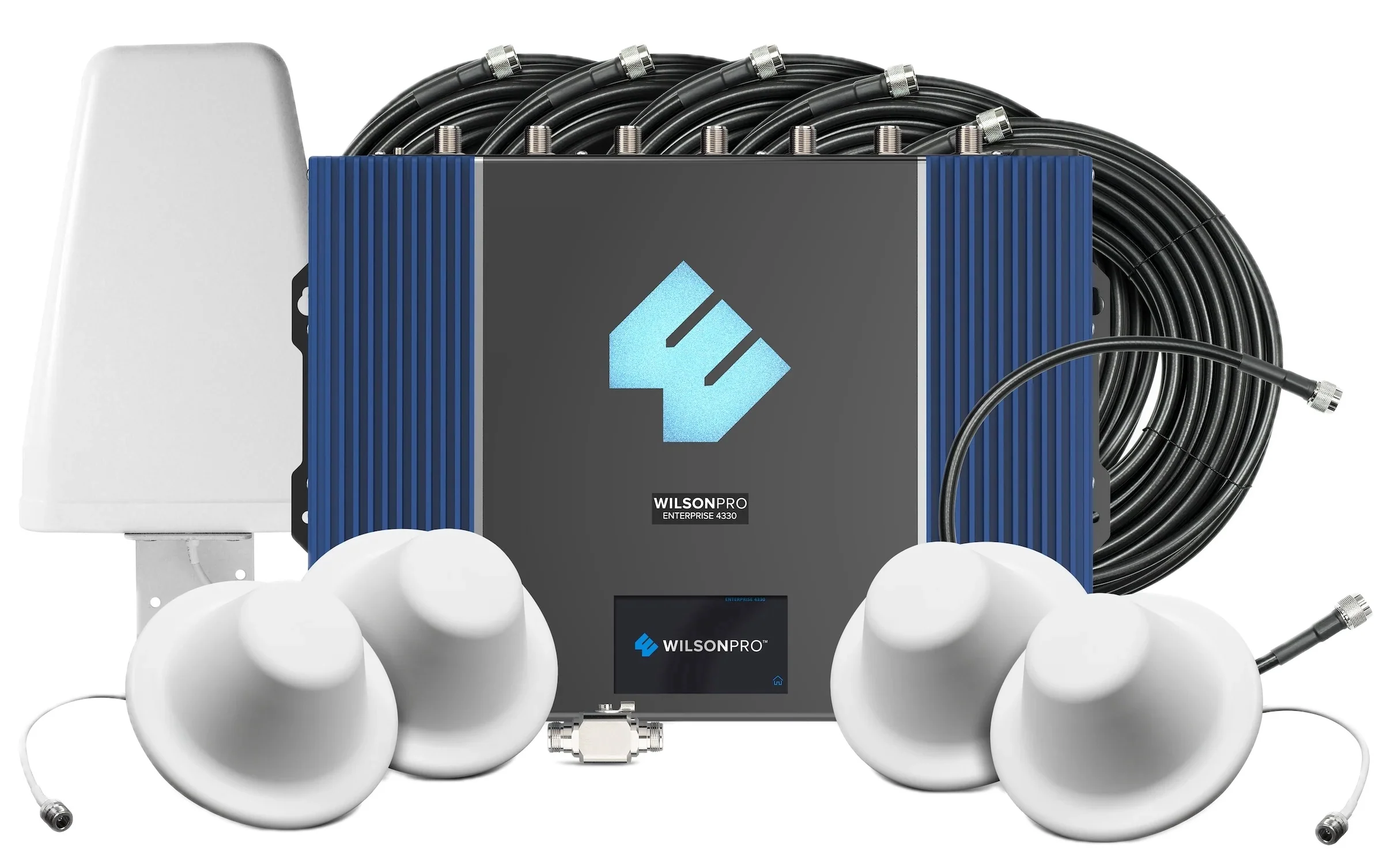

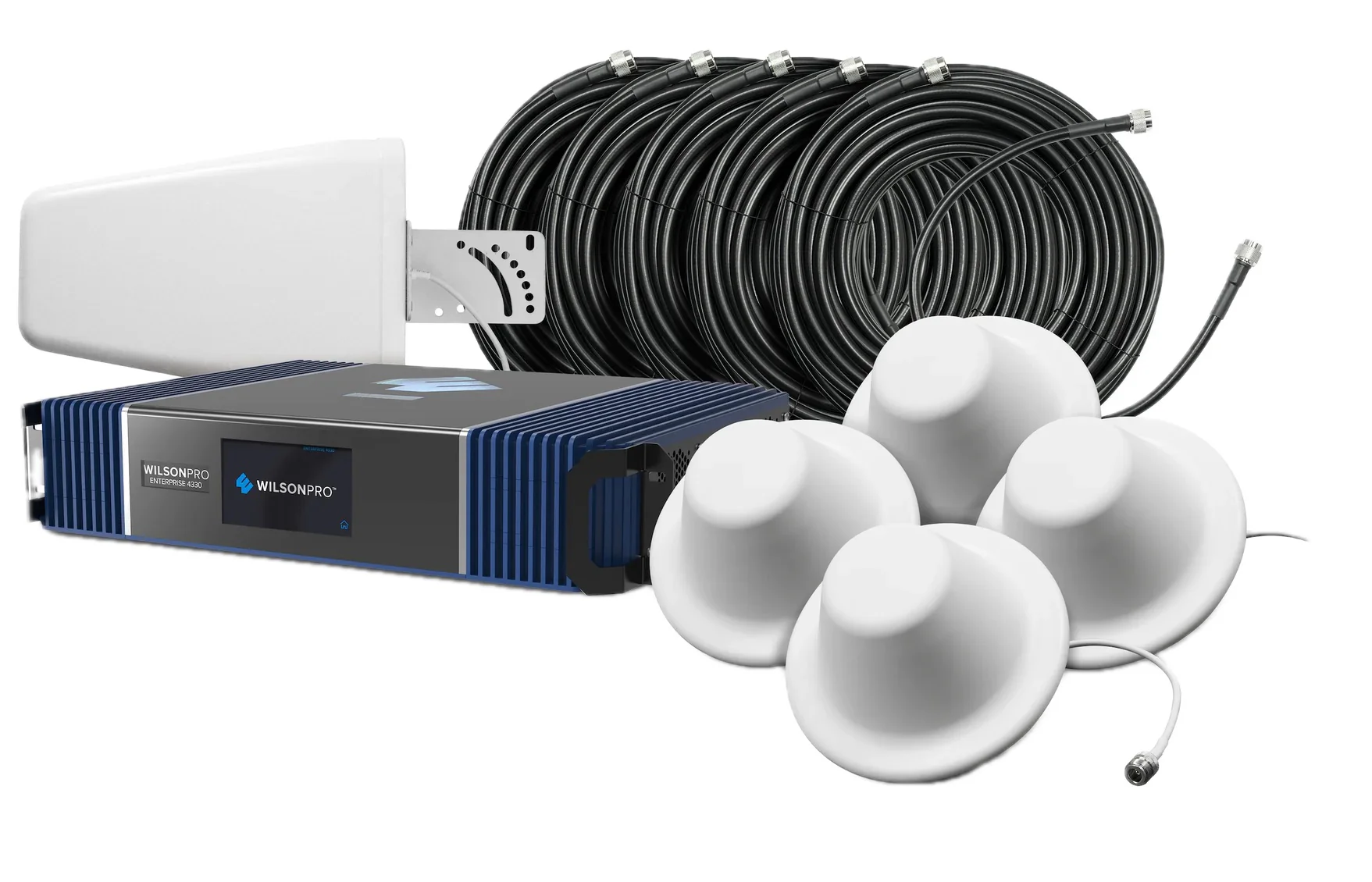

Standard Kit Contents and Customization

The standard WilsonPro Enterprise 4330 and 4330R kits include the following: components:

• Enterprise 4330 Amplifier
• Wideband Directional Outside Antenna (314411)
• 4x Wilson Indoor Dome Antenna (304412)
• 5x 100 ft. Low-Loss Wilson400 Cables (952300)
• 2 ft. Low-Loss Wilson400 Cable (952302)
• weBoost (Wilson) Lightning Surge Protector (859902)
• Installation manual


Get a Free, No Obligation Design & Hardware Quote

As a leading expert in cellular signal enhancement, Waveform brings years of experience delivering dependable coverage to all types of buildings—from homes and retail locations to high-rises and industrial facilities.

The WilsonPro Enterprise 4300 is best when customized for a specific building. Our expert technicians will assess your signal environment, building structure, materials, and connectivity needs to design a fully customized solution built around the flexible and powerful Enterprise 4330.

Contact us at 800-761-3041 or fill out this form to receive a free, no-obligation design consultation and hardware quote. Our Commercial Signal Specialists are here to help!
