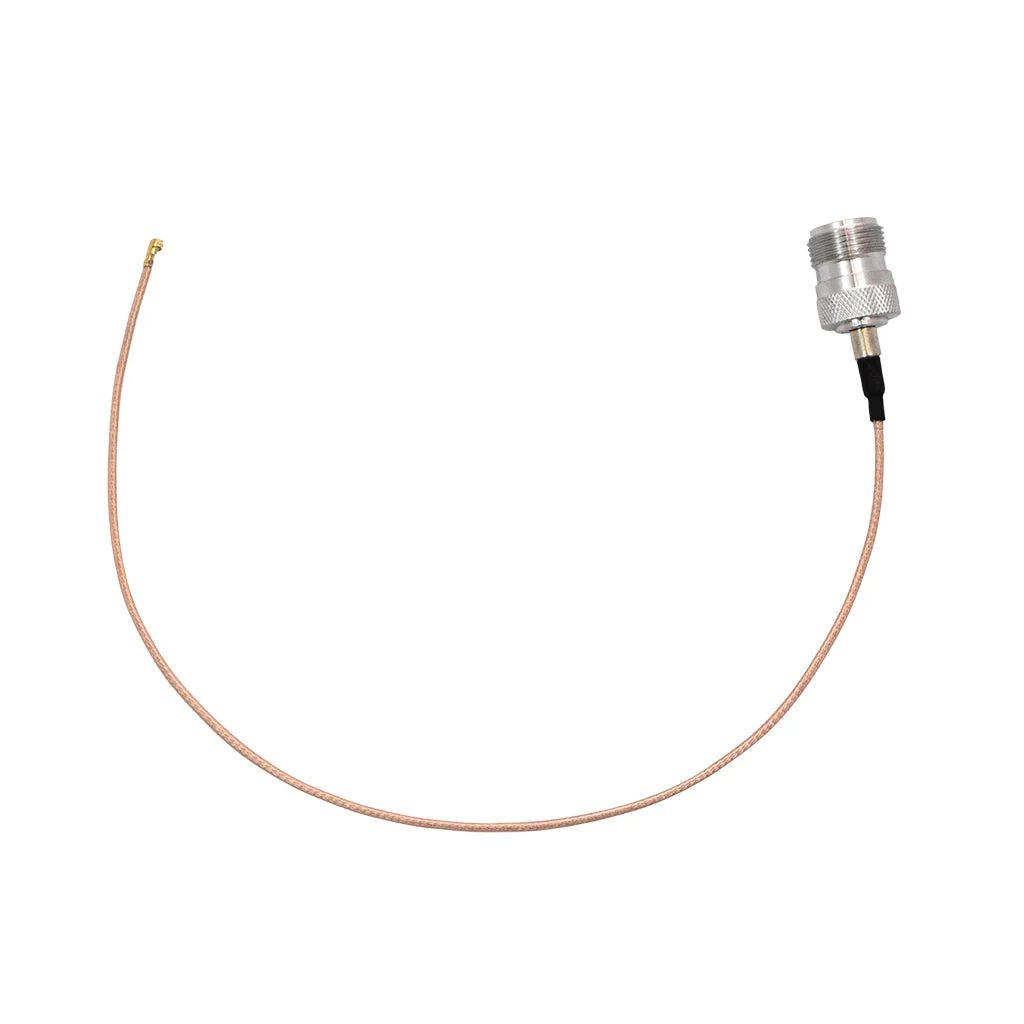

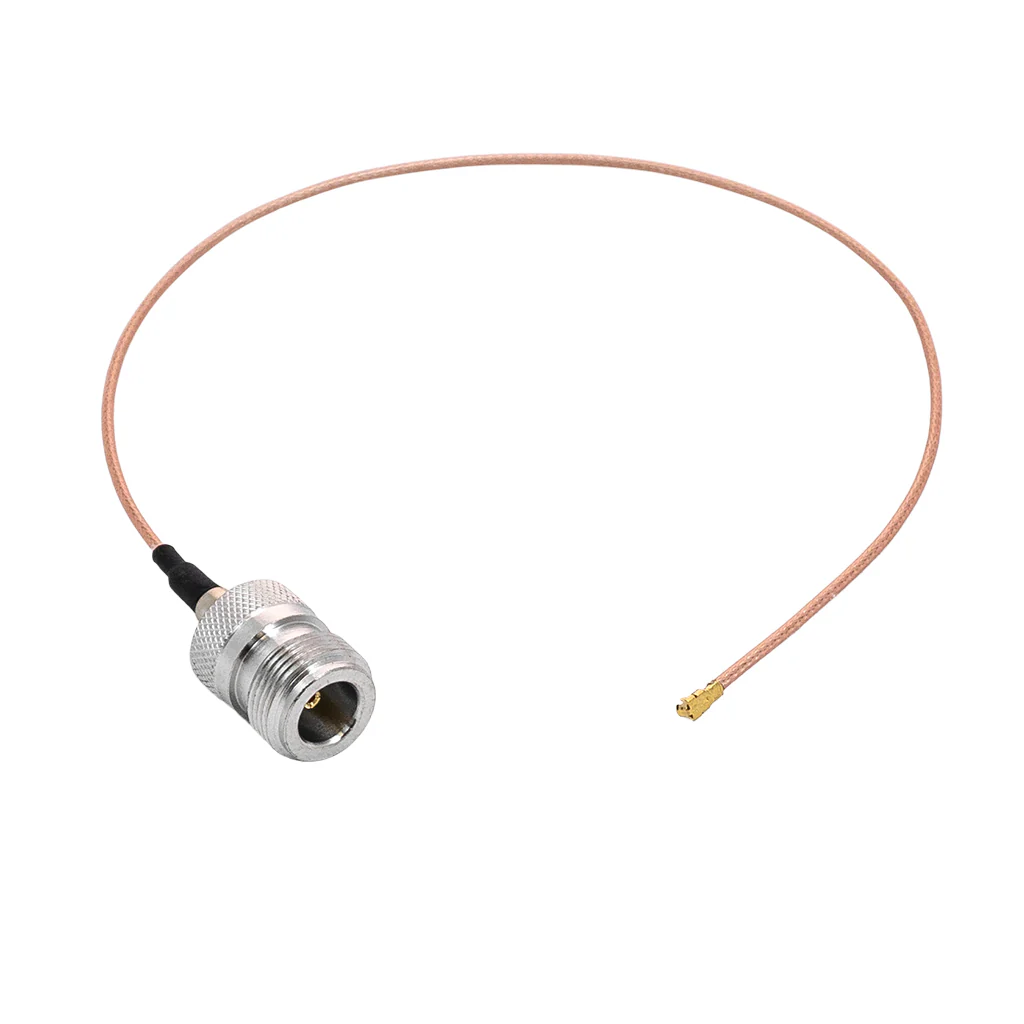

U.FL to N-Female Pigtail Adapter
We've tried a lot of different pigtail adapters before deciding that none of them were good enough and started making our own instead.
These U.FL to N-Female adapters use high-quality RG178 semi-flexible cable that is durable and strong, with minimal insertion loss. Unlike most other adapters, our pigtail adapters won't fall apart during installation.
We tested both harder and softer cable and decided our RG178 cable achieved the right balance of durability but also flexibility, for U.FL connectors.
Specs
- N-Female to U.FL-Female connector
- 30 cm (12 inch) RG178 cable with 1.8mm cable diameter
- 50 Ohm impedance
- Gold-plated bronze center conductor, PTFE dielectric, and an orange PE jacket.
- > 40 dB shielding
- VSWR rated below 1.30 for use at frequencies of up to 6 GHz.
U.FL is also referred to as IPEX MHF1, IPX, AMC, or UMCC.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
We've tried a lot of different pigtail adapters before deciding that none of them were good enough and started making our own instead.
These U.FL to N-Female adapters use high-quality RG178 semi-flexible cable that is durable and strong, with minimal insertion loss. Unlike most other adapters, our pigtail adapters won't fall apart during installation.
We tested both harder and softer cable and decided our RG178 cable achieved the right balance of durability but also flexibility, for U.FL connectors.
Specs
- N-Female to U.FL-Female connector
- 30 cm (12 inch) RG178 cable with 1.8mm cable diameter
- 50 Ohm impedance
- Gold-plated bronze center conductor, PTFE dielectric, and an orange PE jacket.
- > 40 dB shielding
- VSWR rated below 1.30 for use at frequencies of up to 6 GHz.
U.FL is also referred to as IPEX MHF1, IPX, AMC, or UMCC.
