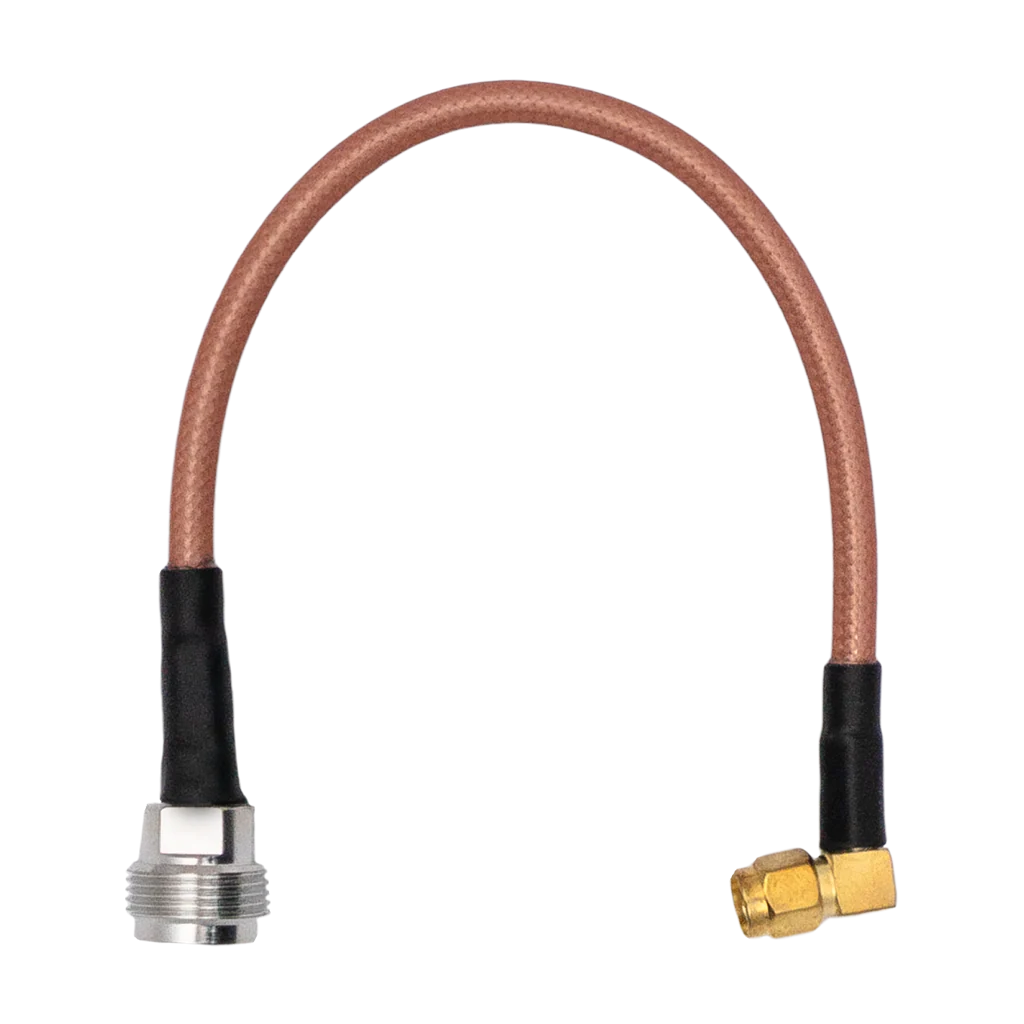

Right Angle SMA-Male to N-Female Pigtail Adapter
After we had tried many different pigtail adapters from other companies and found that none of them were able to meet our standards, we decided to make our very own pigtail adapters!
Unlike most other adapters, these Right Angle SMA-Male to N-Female adapters use high-quality semi-flexible cable that is durable and strong, with minimal insertion loss. Our pigtail adapters won't fall apart during installation.
We tested both harder and softer cable and decided our RG142 cable achieved the right balance of durability but also flexibility for SMA connectors.
Specs
- Right Angle SMA-Male to N-Female connector
- 20 cm (8 inch) RG142 cable with 1.8mm cable diameter
- 50 Ohm impedance
- Gold-plated solid brass center conductor, PTFE dielectric, and an copper-colored FEP jacket.
- > 88 dB shielding,
- VSWR rated below 1.2 for use at frequencies of up to 6 GHz.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
After we had tried many different pigtail adapters from other companies and found that none of them were able to meet our standards, we decided to make our very own pigtail adapters!
Unlike most other adapters, these Right Angle SMA-Male to N-Female adapters use high-quality semi-flexible cable that is durable and strong, with minimal insertion loss. Our pigtail adapters won't fall apart during installation.
We tested both harder and softer cable and decided our RG142 cable achieved the right balance of durability but also flexibility for SMA connectors.
Specs
- Right Angle SMA-Male to N-Female connector
- 20 cm (8 inch) RG142 cable with 1.8mm cable diameter
- 50 Ohm impedance
- Gold-plated solid brass center conductor, PTFE dielectric, and an copper-colored FEP jacket.
- > 88 dB shielding,
- VSWR rated below 1.2 for use at frequencies of up to 6 GHz.
