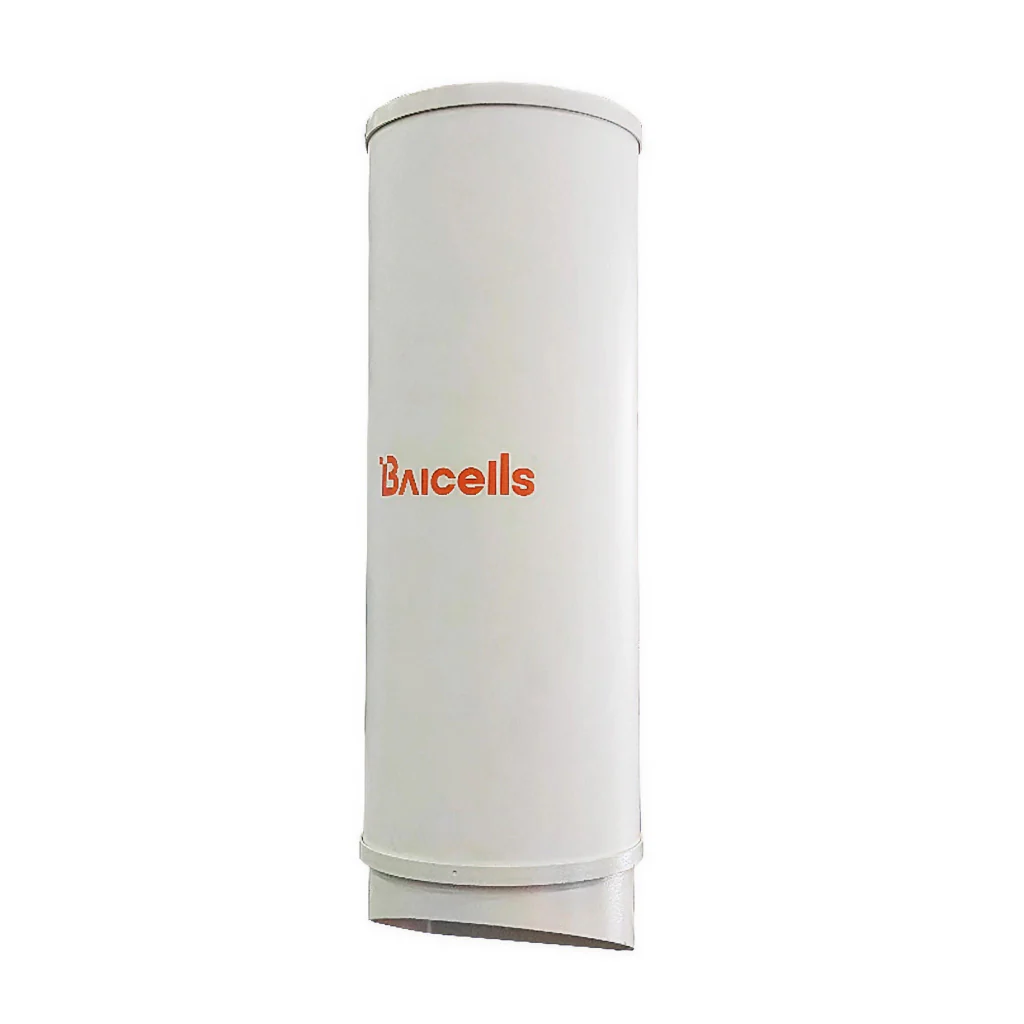

Baicells Nova442i: Outdoor 4x4W LTE TDD Base Station with Integrated Antennas for Bands 40 and 48
The Baicells Nova442i is a high-power, all-in-one LTE TDD base station designed for outdoor private network deployments. Operating across Bands 40 (2300–2400 MHz) and 48 (3550–3700 MHz), the Nova442i supports Carrier Aggregation (CA) and Dual Carrier (DC) operation with up to 2x20 MHz of bandwidth. With four transmit channels at 4W each and built-in high-gain antennas, it delivers up to 290 Mbps downlink throughput and supports 128+128 active users in DC mode.
The Nova442i includes integrated 12 dBi omni antennas and an internal GPS antenna, reducing installation complexity. It features PoE++ power input, IP65-rated weatherproofing, and supports Baicells’ embedded HaloB EPC or third-party cores for full flexibility.
Deployment Requirements
To deploy the Baicells Nova442i, you’ll need:
- SAS registration: Required for CBRS Band 48. Proxy and direct SAS options supported.
- IP backhaul: 1 GE RJ45 Ethernet port with IPsec support for secure connectivity.
- EPC or core network: Compatible with Baicells HaloB embedded EPC or external EPCs.
- Power and mounting: Requires PoE++ (IEEE 802.3bt) power input. Designed for pole mounting.
- GPS synchronization: Built-in GPS antenna included. 1588v2 timing also supported.
- Environmental considerations: IP65-rated for outdoor use. Operating range –40°C to 55°C. Max power draw 90W.
Setting up a private network can get involved — from hardware selection and integration, to network design, software configuration, and user device onboarding. Our team of experts can help deliver a complete solution, whether you’re looking for just the parts or a full turnkey deployment. Reach out here to get started.
Key Features
- Supports LTE TDD operation in Bands 40 and 48 with 5, 10, 15, or 20 MHz channels.
- Delivers 4x4W (36 dBm total) output power with 2x2 MIMO. Internal high-gain omni antenna with 360° coverage.
- Dual-carrier and carrier aggregation support. Up to 128+128 users supported in DC mode.
- Peak throughput up to 290 Mbps downlink and 70 Mbps uplink with 2x20 MHz in CA mode.
- Built-in GPS and internal 12 dBi antenna simplify deployment. No external antenna or GPS required.
- Compact integrated form factor with PoE++ power and IP65-rated enclosure.
- HaloB EPC included, or can be paired with third-party LTE cores.
- Supports TR-069, SNMP, and local Web UI. Includes SON features such as ANR and PCI conflict detection.
Kit Contents
- Baicells Nova442i (Band 40/48 variant)
- Integrated high-gain 4T4R omni antennas
- Built-in GPS antenna
- RJ45 Ethernet backhaul port
- Pole mounting hardware
We can customize this kit to fit your exact needs. Reach out to our expert team here or email us at [email protected].
