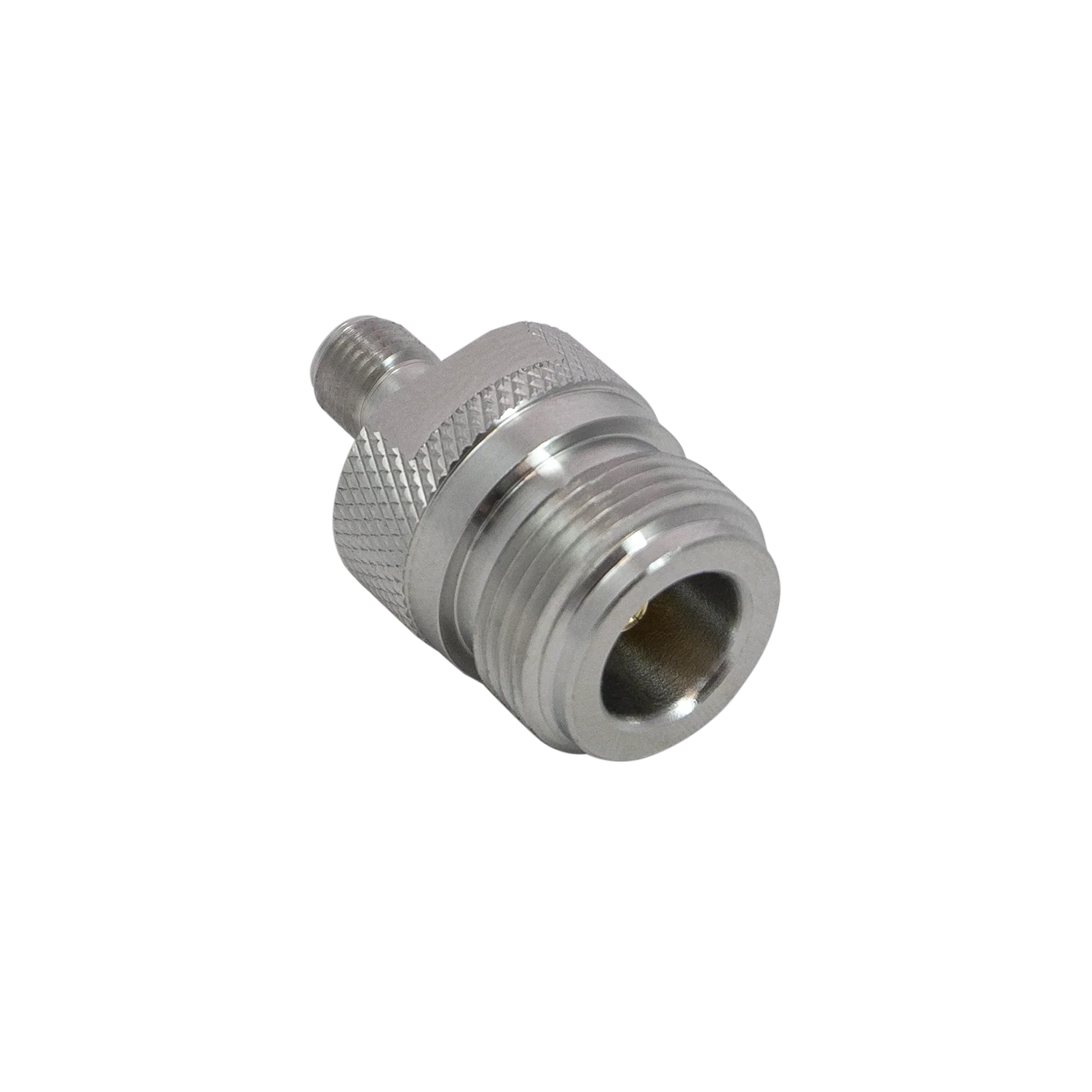

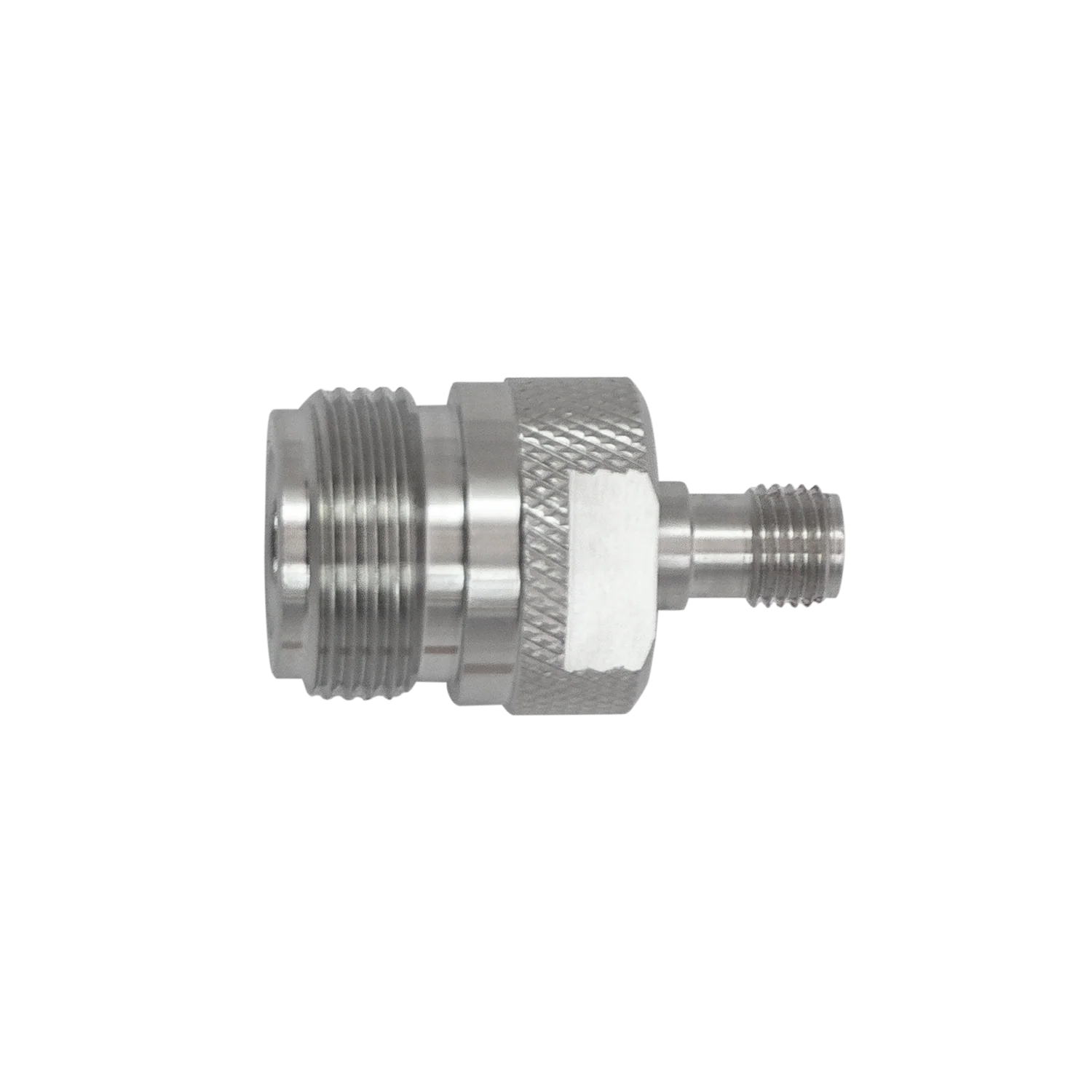

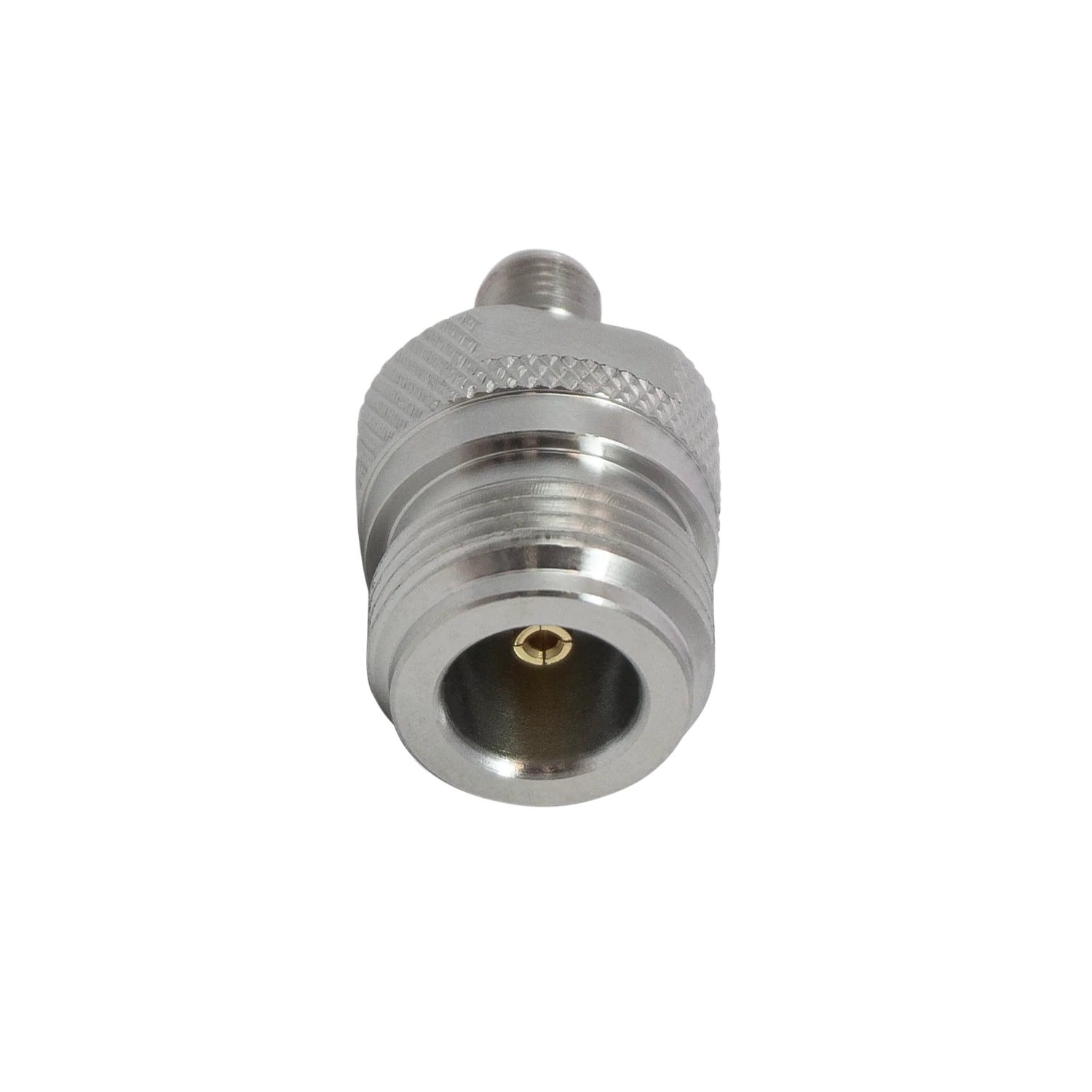

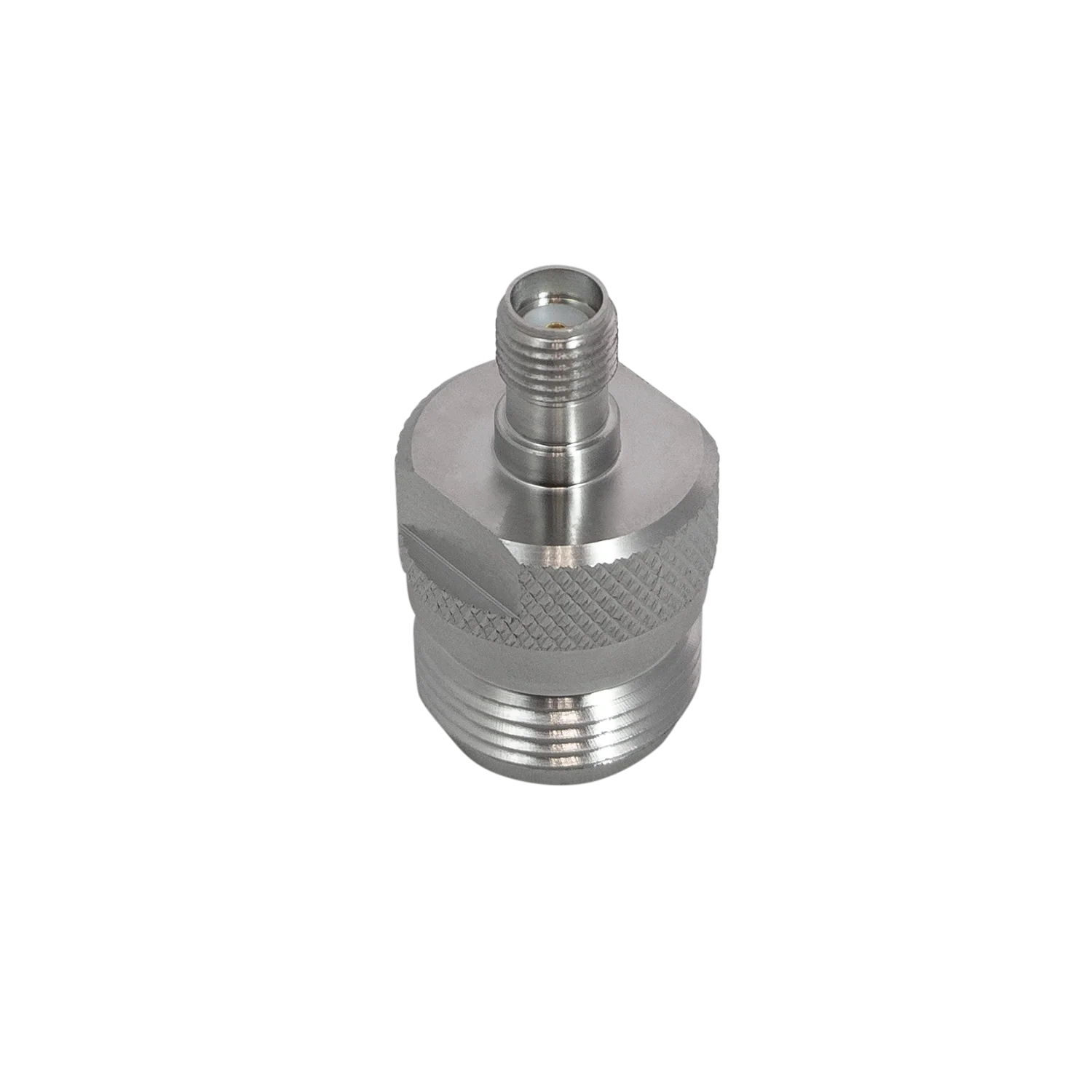

N-Female to SMA-Female Adapter

This N-Female to SMA-Female adapter uses high-quality brass and bronze alloys, making it durable and strong, with minimal insertion loss.

This adapter is often placed between an N-Male cable and SMA-Male cable to connect and extend an existing cable path.

Specs

• N-Female to SMA-Female connector
• 29.6 mm (1.16 inch) long with 15.7 mm (0.62 inch) diameter
• 50 Ohm impedance
• Gold-plated bronze center conductor, PTFE dielectric, and a plated brass body
• VSWR rated below 1.3 for use at frequencies of up to 6 GHz.
