Low-PIM 4.3-10 Jumper Cable

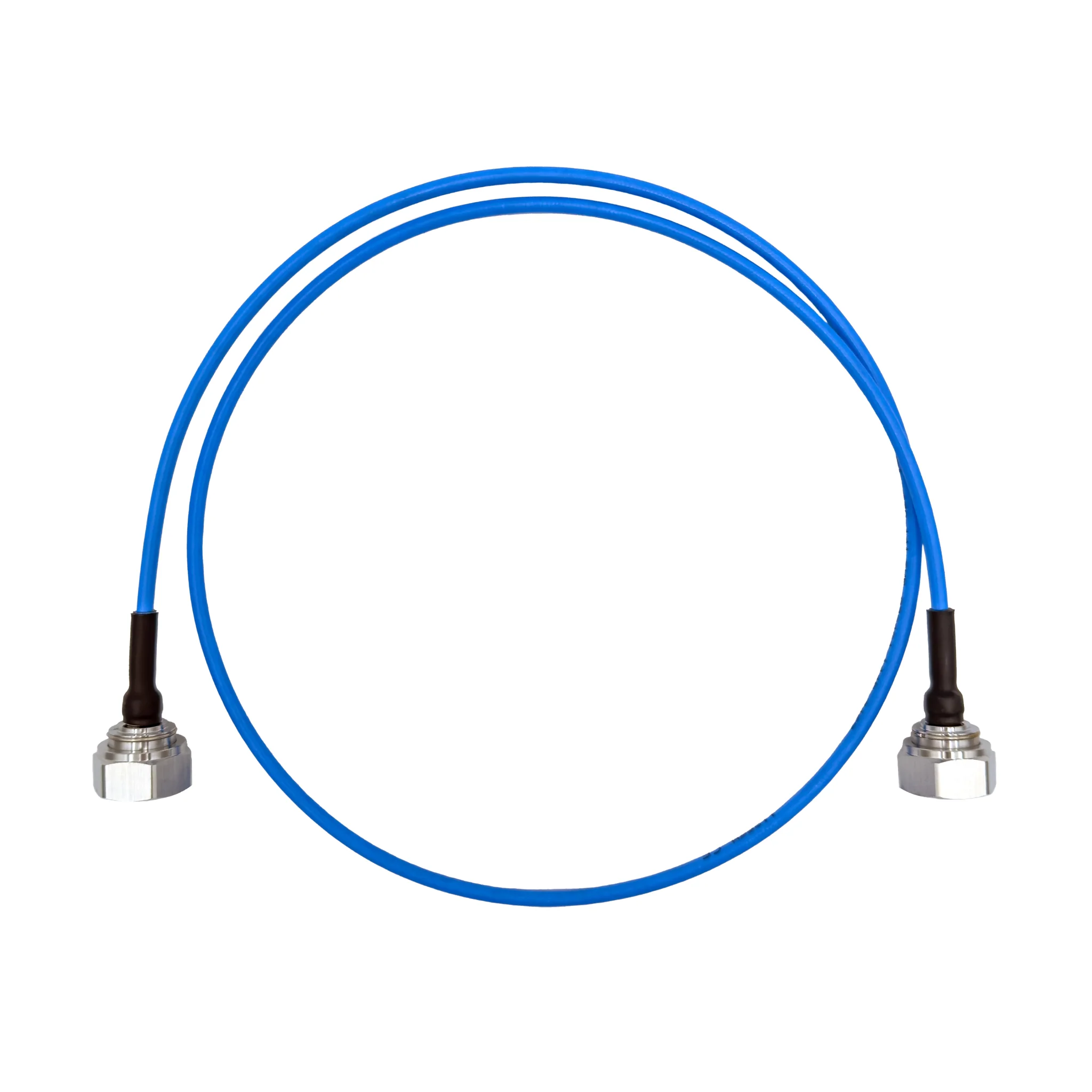

Waveform’s Low-PIM 4.3-10-Male Jumper Cable is a plenum-rated, high-performance cable designed for RF applications up to 6 GHz.

With precision-engineered 0.141-type cable and 4.3-10-Male connectors, this 1-meter (3.3 ft) cable delivers ultra-low PIM (≤ -160 dBc) and excellent RF performance to ensure reliable signal quality and minimal interference.

This cable is ideal for Distributed Antenna Systems (DAS), 4G LTE, and 5G installations, offering low insertion loss, excellent shielding, and high durability. Its IP67-rated construction is suitable for both indoor and outdoor use, with a flexible, easy-to-install design.

Specifications

• Connectors: 4.3-10-Male to 4.3-10-Male
• Length: 1.0 m (3.3 ft)
• PIM (IM3): ≤ -160 dBc @ +43 dBm
• VSWR: ≤ 1.15 (0–3 GHz), ≤ 1.30 (3–6 GHz)
• Insertion Loss: 0.36 dB @ 600 MHz, 1.30 dB @ 6 GHz
• Bend Radius: 40 mm (1.6 in) [Repeat], 8 mm (0.3 in) [Install]
• Power Handling: 100W (Average), 2.5kW (Peak)
• Compliance: RoHS, NFPA 262 (UL 910), UL 2043

Waveform’s Low-PIM 4.3-10-Male Jumper Cable is a trusted choice for high-performance RF applications, offering industry-leading PIM suppression and reliable, high-quality connections for critical network deployments.

What is PIM?

Passive Intermodulation (PIM) is a type of distortion that occurs in RF systems when non-linearities—caused by factors such as dissimilar materials, poor connections, or corrosion—generate unwanted signals.

These signals can interfere with communication networks, degrading performance and reducing efficiency. Waveform’s Low PIM jumper cables are meticulously designed to reduce PIM, delivering clean and reliable signal transmission for even the most demanding applications.
