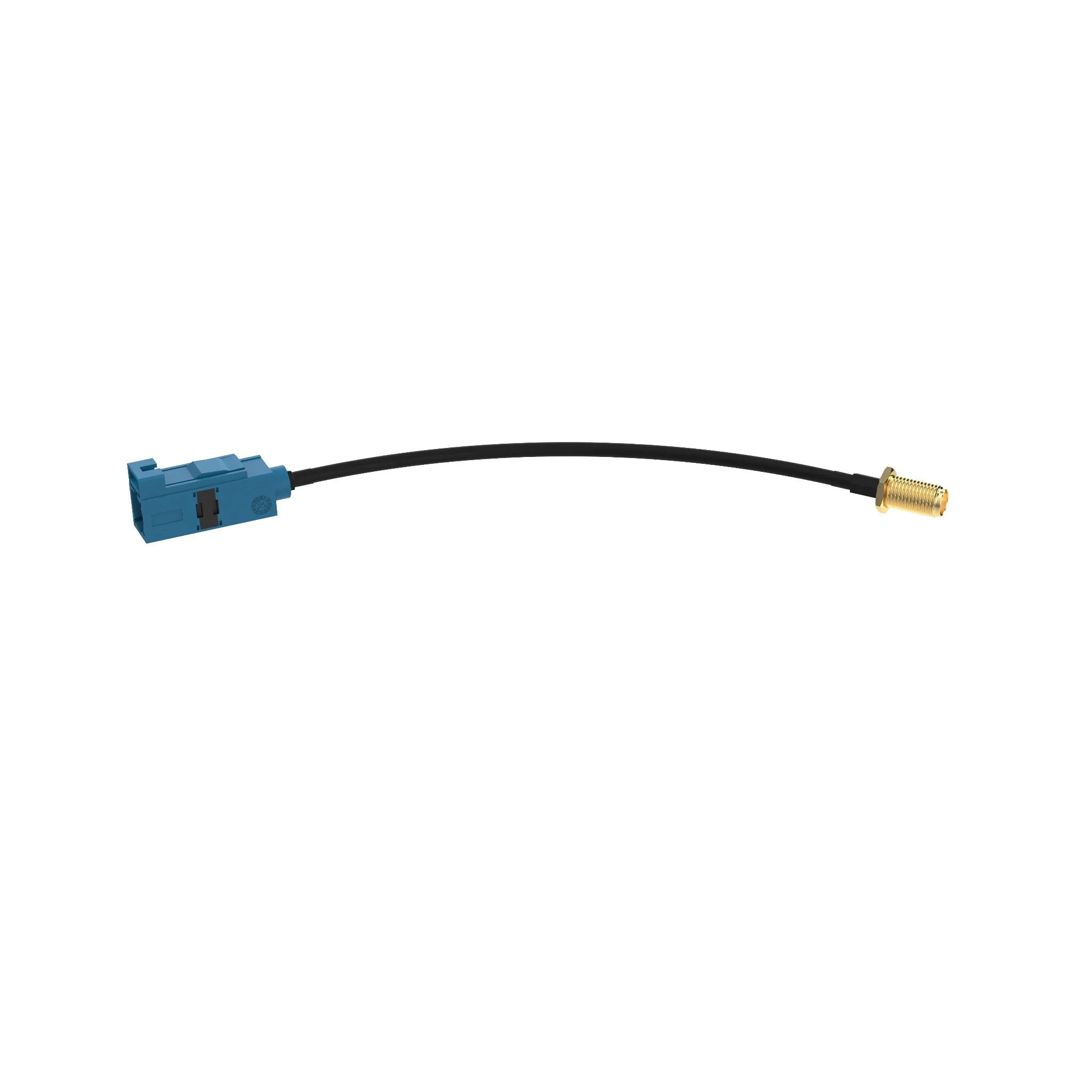

FAKRA Z to SMA-Female Pigtail Adapter

Our FAKRA Z to SMA-Female Pigtail Adapters are the perfect adapters for connecting antennas like our QuadMini and QuadPro to any device using FAKRA connectors.

We tested dozens of FAKRA adapters and found none of them met our standards. So we built this specific design for its secure fit and reliable latch, to ensure top-notch performance and ease of use with all FAKRA devices.

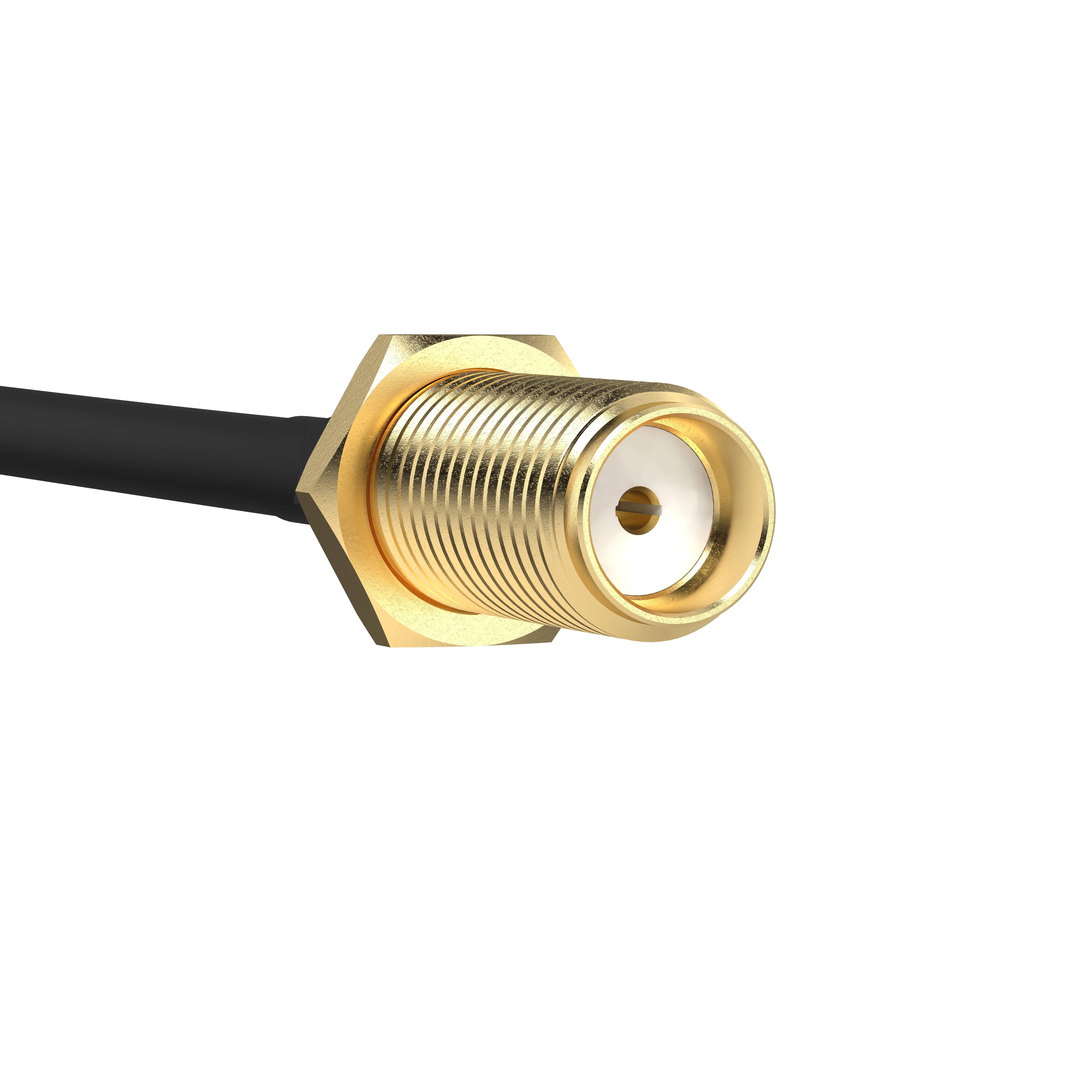

The cable is a low-loss, highly flexible RG174 to minimize signal loss while providing robust durability. The SMA-Female connector is constructed of gold-plated copper, and the FAKRA connector is made of brass, with a PA66 body, and delivers a VSWR below 1.5 for optimal performance up to 6 GHz.

Universal FAKRA Compatibility

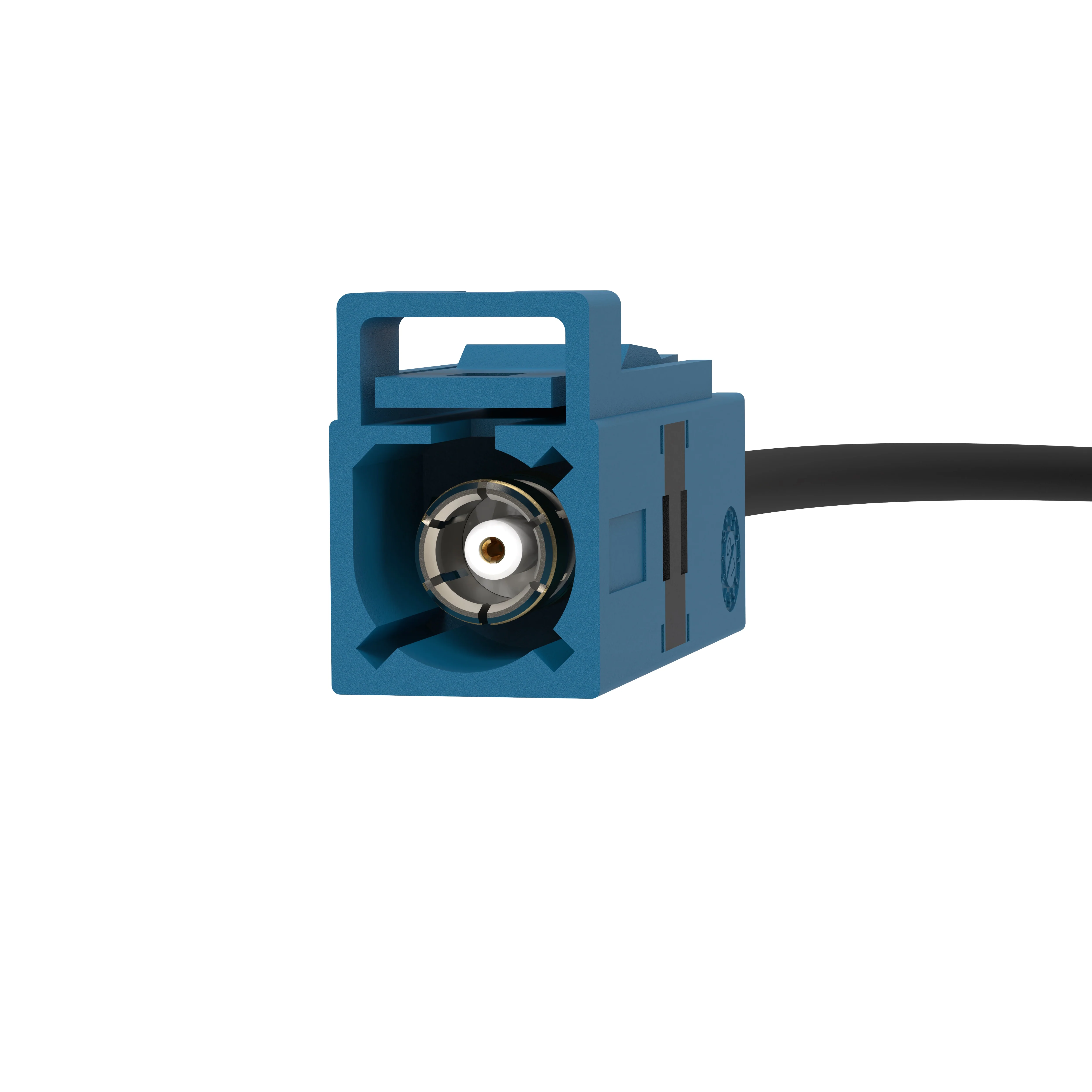

Using a female (jack) FAKRA Z connector means this adapter connects perfectly to any device that uses FAKRA connectors. FAKRA Z is universally compatible with all FAKRA standards, including:

• FAKRA A (Black) - AM/FM Radio
• FAKRA B (White) - DAB Radio
• FAKRA C (Signal Blue) - GPS
• FAKRA D (Claret Violet) - Mobile Phones
• FAKRA E (Leaf Green) - TV
• FAKRA F (Brown) - TV, SiriusXM
• FAKRA G (Grey) - SDARS Terrestrial
• FAKRA H (Heather Violet) - GPS
• FAKRA I (Beige) - Bluetooth
• FAKRA K (Curry) - SDARS Satellite
• FAKRA L (Red) - VPM
• FAKRA M (orange) - TPMS
• FAKRA N (Pastel Green)- VPM
• FAKRA Z (Water Blue) - Neutral, fits all
