CEL-FI QUATRA EVO Signal Booster System

The CEL-FI QUATRA EVO is a next-generation active DAS solution engineered to deliver reliable in-building coverage for one or two operators. Built for enterprise environments, the EVO provides carrier-grade performance with rapid deployment, ensuring employees and customers enjoy uninterrupted voice, text, and data services. With unmatched system gain and digital architecture, the QUATRA EVO offers a cost-effective and scalable alternative to traditional DAS.

Features

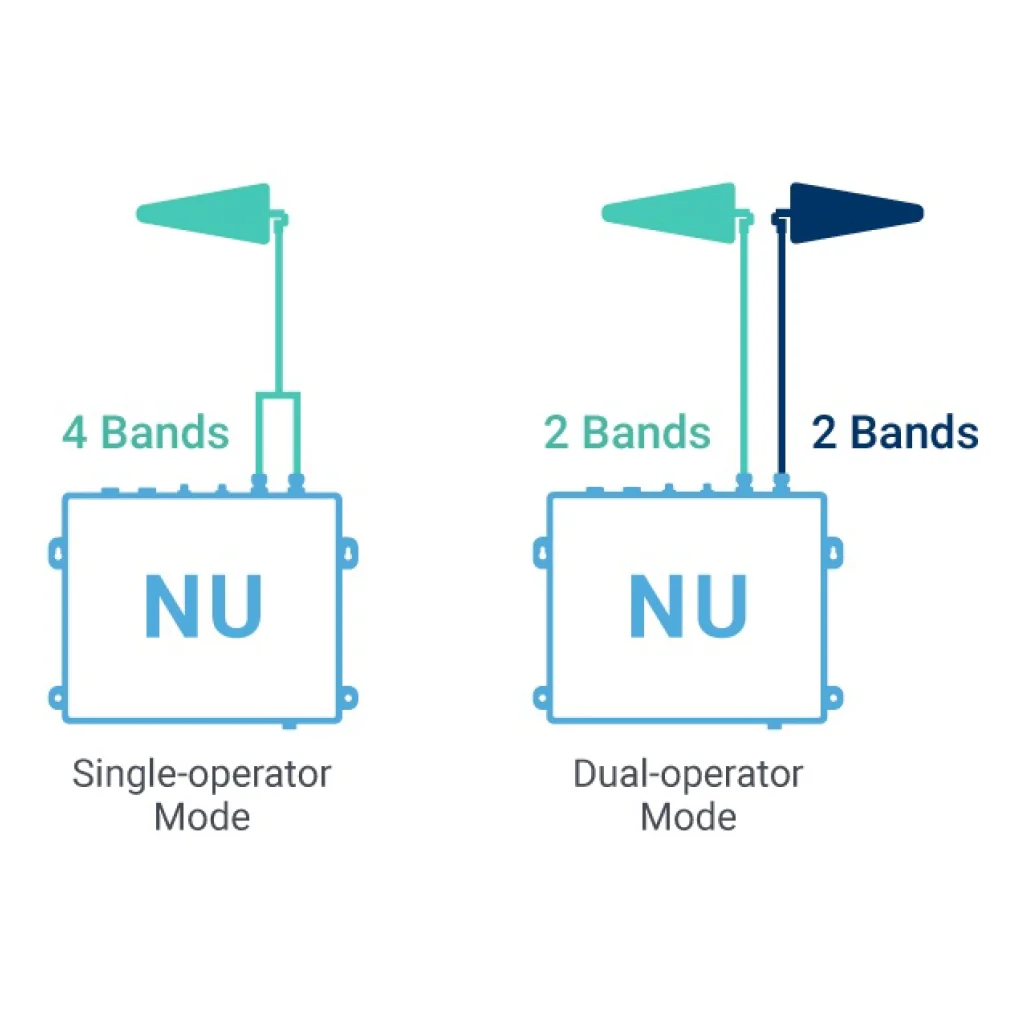

• Dual-Operator Coverage: Supports two mobile operators simultaneously, enabling reliable calling, texting, and data streaming across multiple networks.

• Fast Installation: The system can be installed, commissioned, and activated within days, thanks to its Cat 6 cable architecture, offering faster deployment compared to traditional DAS systems.


• Multi-Mode Flexibility: Accepts donor signal from off-air antennas or small cells, enabling flexible system design and integration with carrier networks.


• Network Safe: Carrier-approved with no noise guarantee, ensuring your system operates smoothly without interfering with existing cellular networks.


• Installer-Friendly Enhancements: Includes N-type connectors, built-in SIM slot for the internal modem, and simplified antenna inputs for easier deployments.


• Remote Monitoring and Management: View real-time system performance and manage network configurations via the Nextivity WAVE Portal for efficient monitoring and maintenance.


• Powered by IntelliBoost®: The Nextivity IntelliBoost® chip uses digital signal processing to enhance cellular performance, providing industry-leading coverage at the lowest cost per square foot. IntelliBoost ensures that CEL-FI solutions are network-safe and approved for use globally by over 200 mobile network operators.

WAVE Portal

The Cel-Fi WAVE Portal provides cloud-based remote management for QUATRA systems. Administrators can monitor performance, configure devices, set alerts, and apply updates from any desktop or mobile device.

Features of the platform include:

• Carrier-grade security for mobile and desktop access.
• Asset management, reporting, and data modeling.
• Real-time alerts and alarms.
• API integration for enterprise workflows.

System Components

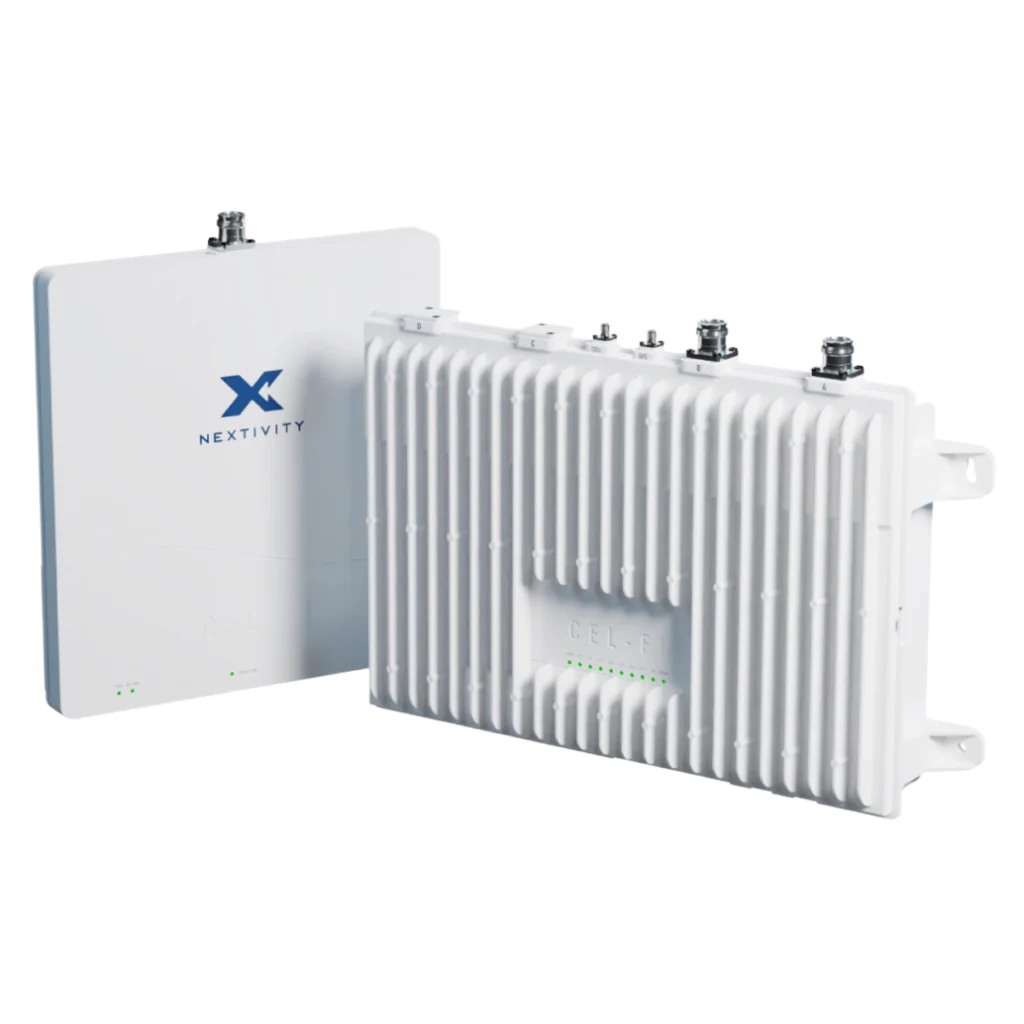

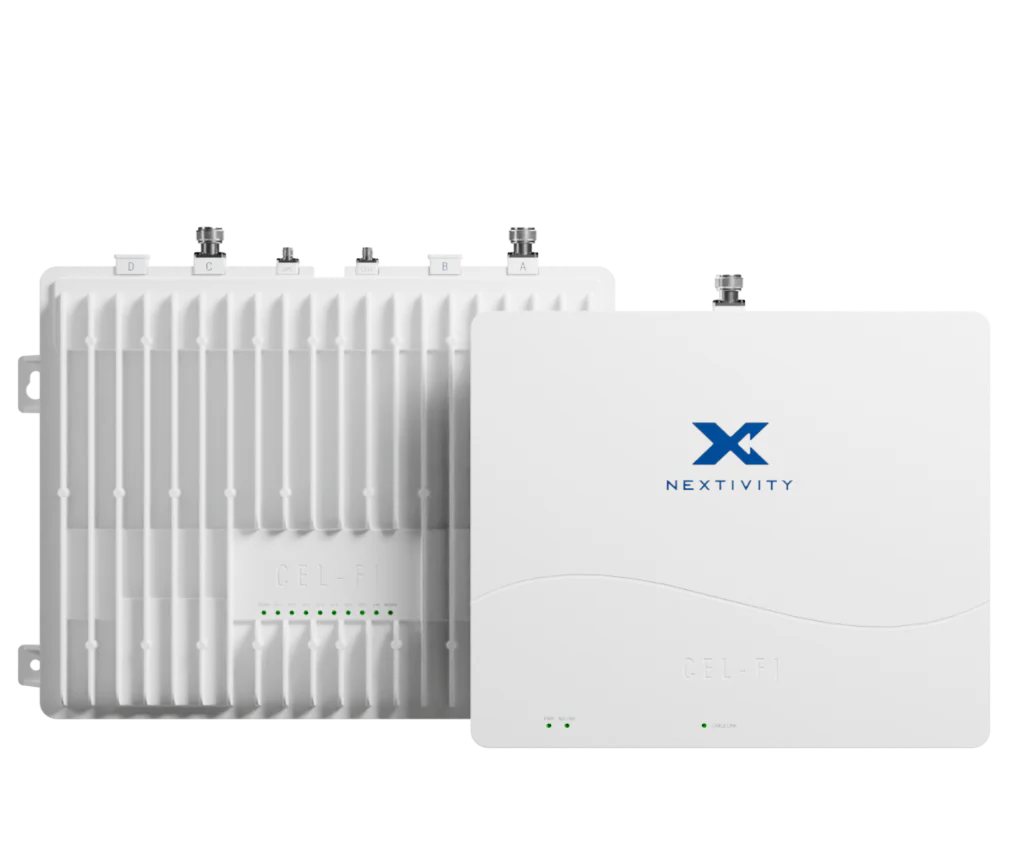

The standard QUATRA EVO kit includes one Network Unit and six Coverage Units. Optional additional accessories are available.

QUATRA EVO Network Unit

The Network Unit is the hub of the QUATRA EVO system. It receives donor signals and distributes them to Coverage Units across the building, extending coverage up to 50,000 square feet. Supporting up to six Coverage Units, the NU delivers both signal and power through standard Cat6 Ethernet cabling with Power-over-Ethernet (PoE). Simple to install, and fully scalable.

• Supports up to six Coverage Units and 50,000 square feet of coverage.
• Distributes donor signal over standard Cat6 Ethernet.
• Provides power and signal to Coverage Units via PoE.
• Self-configuring with remote management through the WAVE Cloud platform.

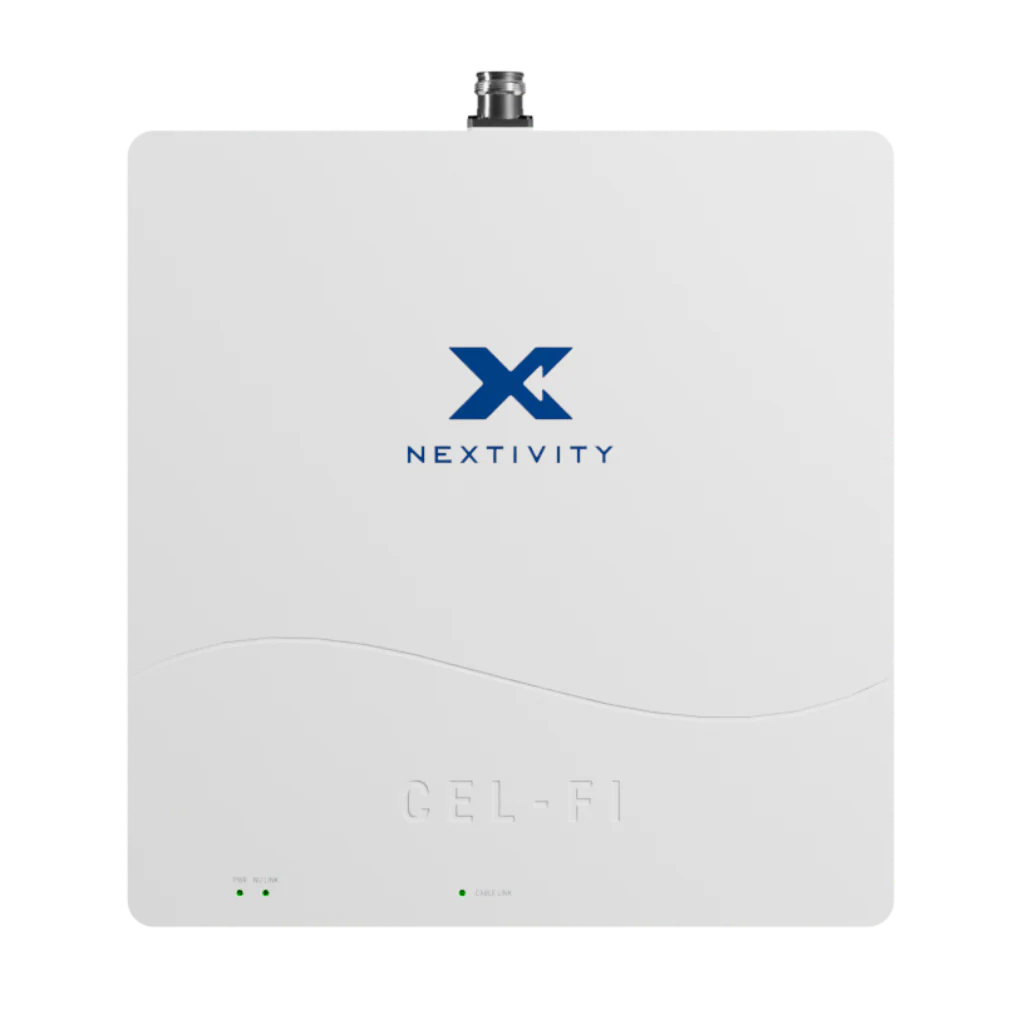

QUATRA EVO Coverage Unit

The Coverage Unit is the remote radio head within the system that rebroadcasts the donor signals from the Network Unit to extend service inside the building. Powered via Power-over-Ethernet (PoE), each Network Unit can power and manage up to six Coverage Units that configure automatically, and optimize continuously to maintain enhanced performance.

• Delivers dual-carrier coverage throughout the facility.
• Delivers cellular coverage across the facility (up to six CUs per NU).
• Connects via Ethernet or LTE modem to the Nextivity WAVE Portal for remote management and monitoring.

QUATRA EVO Fiber Hub (Optional)

The Fiber Hub extends the reach and capacity of the QUATRA EVO system. When paired with an EVO Network Unit, it allows support for an additional six Coverage Units, expanding system capacity from six to twelve. With fiber runs of up to 2 km (1.24 miles), the Fiber Hub makes it possible to cover large buildings, multi-building campuses, or areas where Ethernet cabling distances are not sufficient, all without compromising signal quality.

• Extends donor signals over duplex fiber up to 2 km (1.24 miles).

• Expands system capacity to 12 Coverage Units per Network Unit.

• FCC certified (SFP+ module sold separately).
