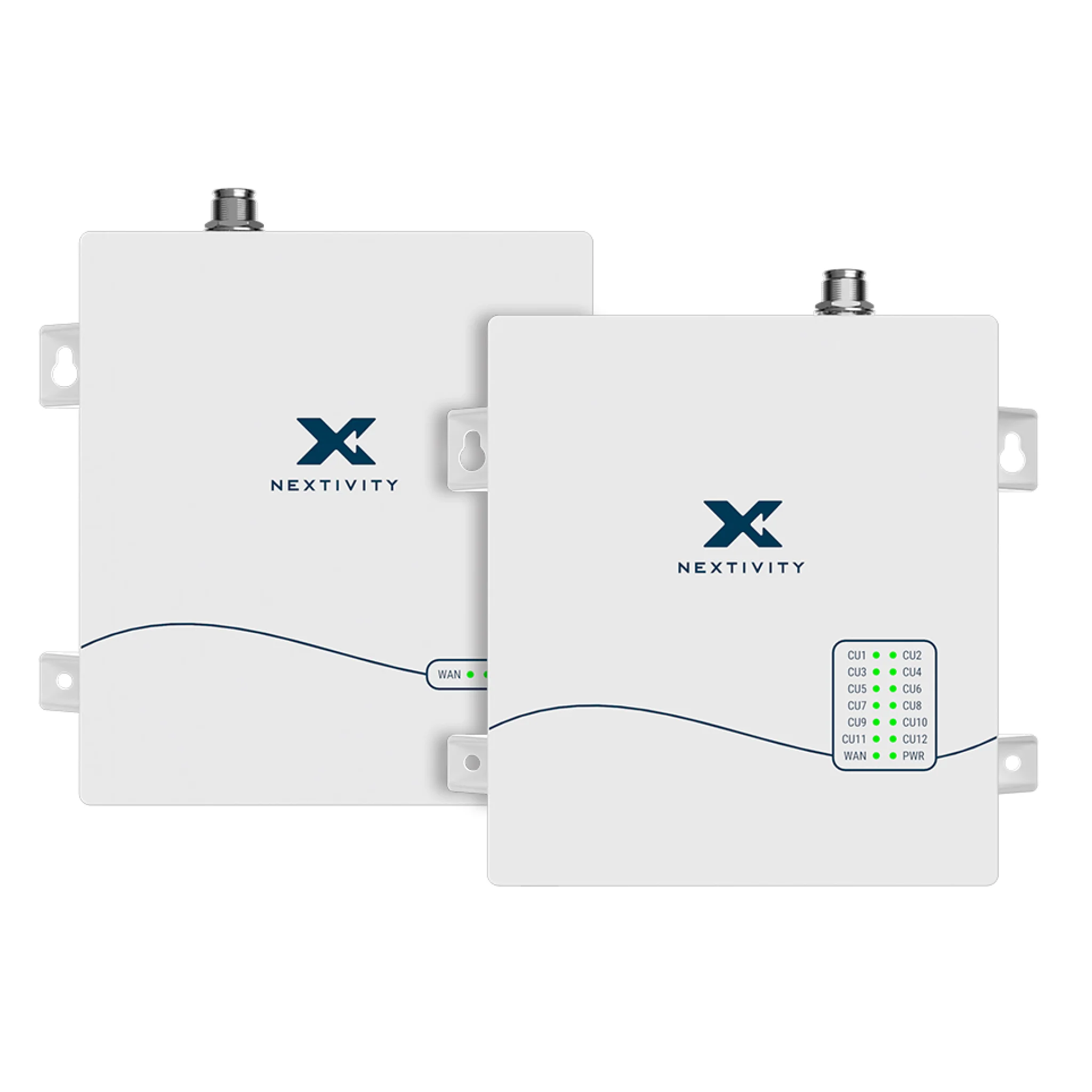

CEL-FI QUATRA 100M Smart Booster System

The CEL-FI QUATRA 100M is a single-operator Stand Alone 5G cellular coverage solution built to deliver reliable, high-performance indoor connectivity for enterprise and industrial environments. Designed for fast deployment and carrier-grade performance, the QUATRA 100M provides coverage with exceptional gain and performance on Band n77.

Ideal for mid-size to large buildings such as offices, hospitals, hotels, and campuses, the QUATRA 100M combines the power of a digital active DAS with the simplicity of category cabling. By distributing signal and power over fiber and Cat 6 Ethernet with Power-over-Ethernet (PoE), it eliminates the complexity and high cost associated with traditional DAS systems.

The QUATRA 100M also simplifies IoT deployments, reducing connectivity network complexity and costs. Additionally, compatibility with the SMART Server Antenna & Module enables passive DAS monitoring and smooth IoT network integration, making the QUATRA 100M a reliable choice for enterprise-level wireless infrastructure.

Features

• Single-Operator Coverage: Delivers dedicated 5G voice and data for one mobile network operator - ideal for enterprise and private-network use.
• 5G TDD 100 MHz Support: Seamlessly integrates with single-operator public or private 5G networks on Band n77 for maximum throughput and real-time echo cancellation.
• Simplified Installation and Power Distribution: Adaptable power delivery via the dedicated Power Unit ensures consistent performance for both the Network Unit and Coverage Units.
• Fiber-Based Lossless Signal Distribution: Utilizes digital, fiber-based signal transmission for zero signal degradation and consistent performance across multiple Coverage Units.
• IoT and Smart Building Ready: Built-in PoE simplifies IoT device integration; SMART Module support adds passive DAS monitoring and advanced analytics
• Network Safe: Carrier-approved with no noise guarantee, ensuring your system operates smoothly without interfering with existing cellular networks.
• Remote Monitoring and Management: View real-time system performance and manage network configurations via the Nextivity WAVE Portal for efficient monitoring and maintenance.

WAVE Portal

The Cel-Fi WAVE Portal is a cloud-based platform that gives you complete control of your QUATRA system from anywhere. Access it from a computer or mobile device to monitor performance, configure settings, receive alerts, and apply software updates.

In addition to managing QUATRA, the WAVE Portal also supports monitoring of private networks deployed through Cel-Fi Harmony. Harmony Private Networking is low-cost, low-risk, and ultra flexible compared to existing options to set up a private network.

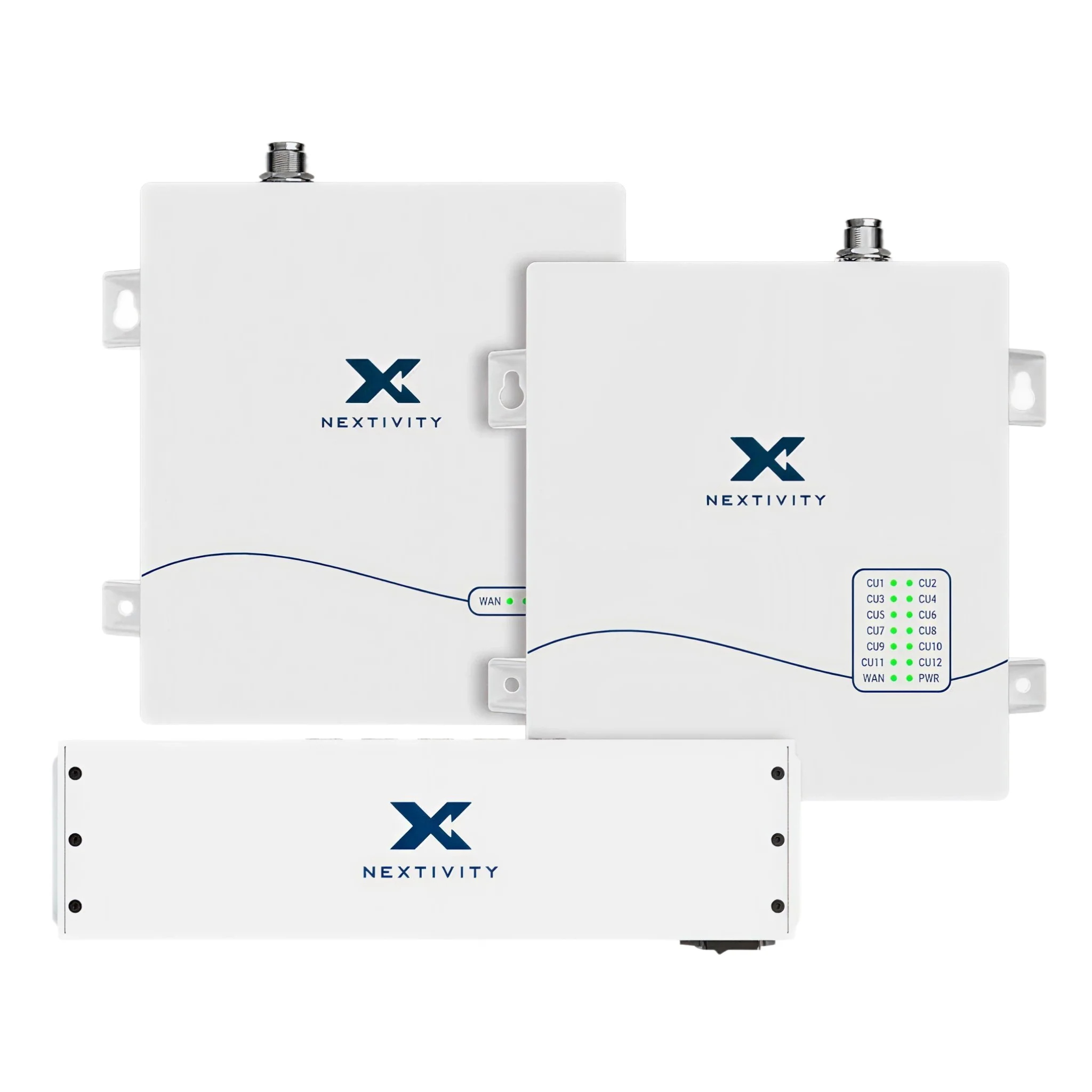

System Components

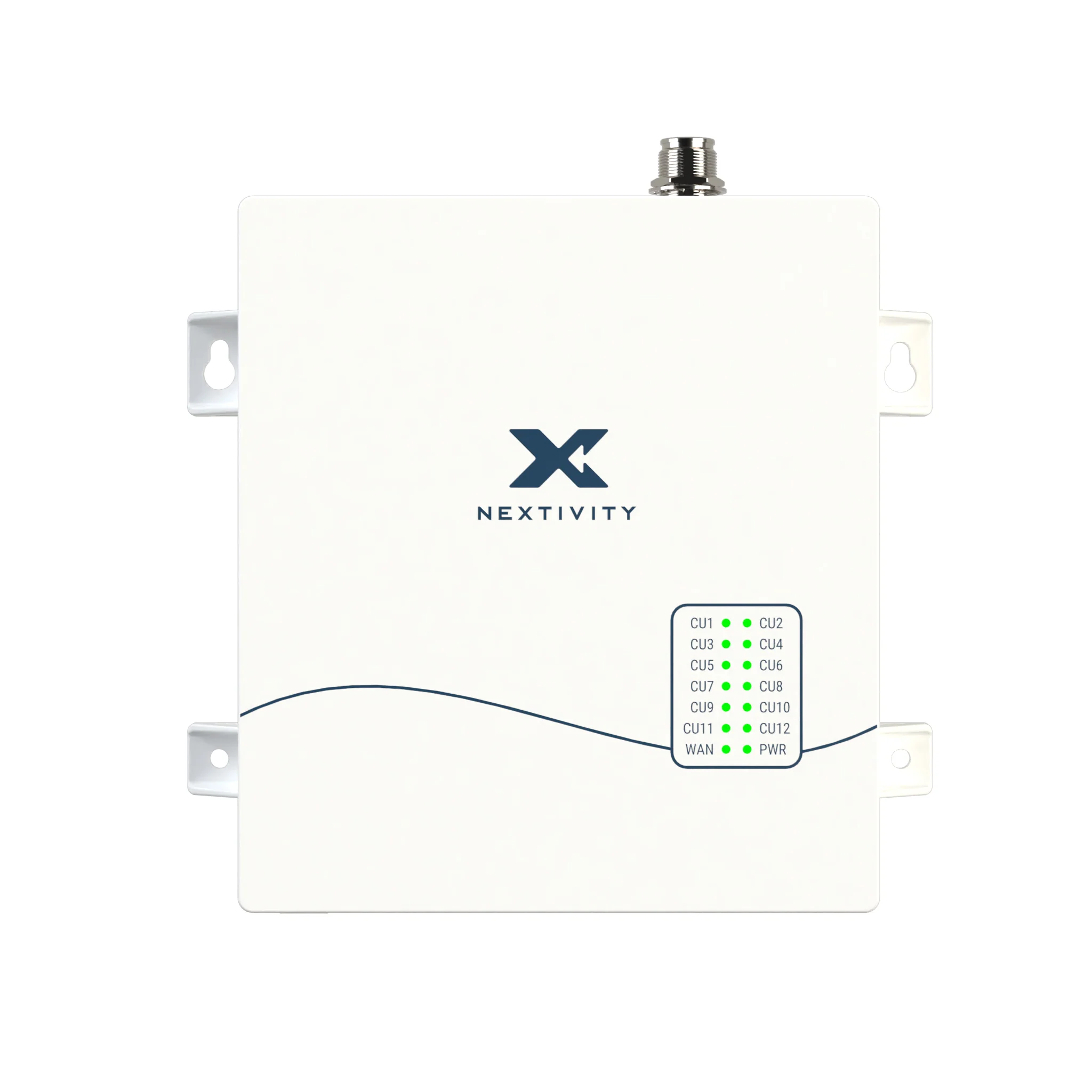

QUATRA 100M Network Unit

The Network Unit is the central hub of the QUATRA 100M system. It receives the donor signal from an external antenna or small-cell source and distributes it digitally to up to six Coverage Units using standard Cat 6 Ethernet cabling. Each NU provides both signal and power via PoE, making installation simple and scalable.

• Supports one mobile network operator.


• Powers and manages up to six Coverage Units.


• Provides both power and signal over Cat 6 Ethernet.

• Self-configuring and remotely managed through the Nextivity WAVE Portal.

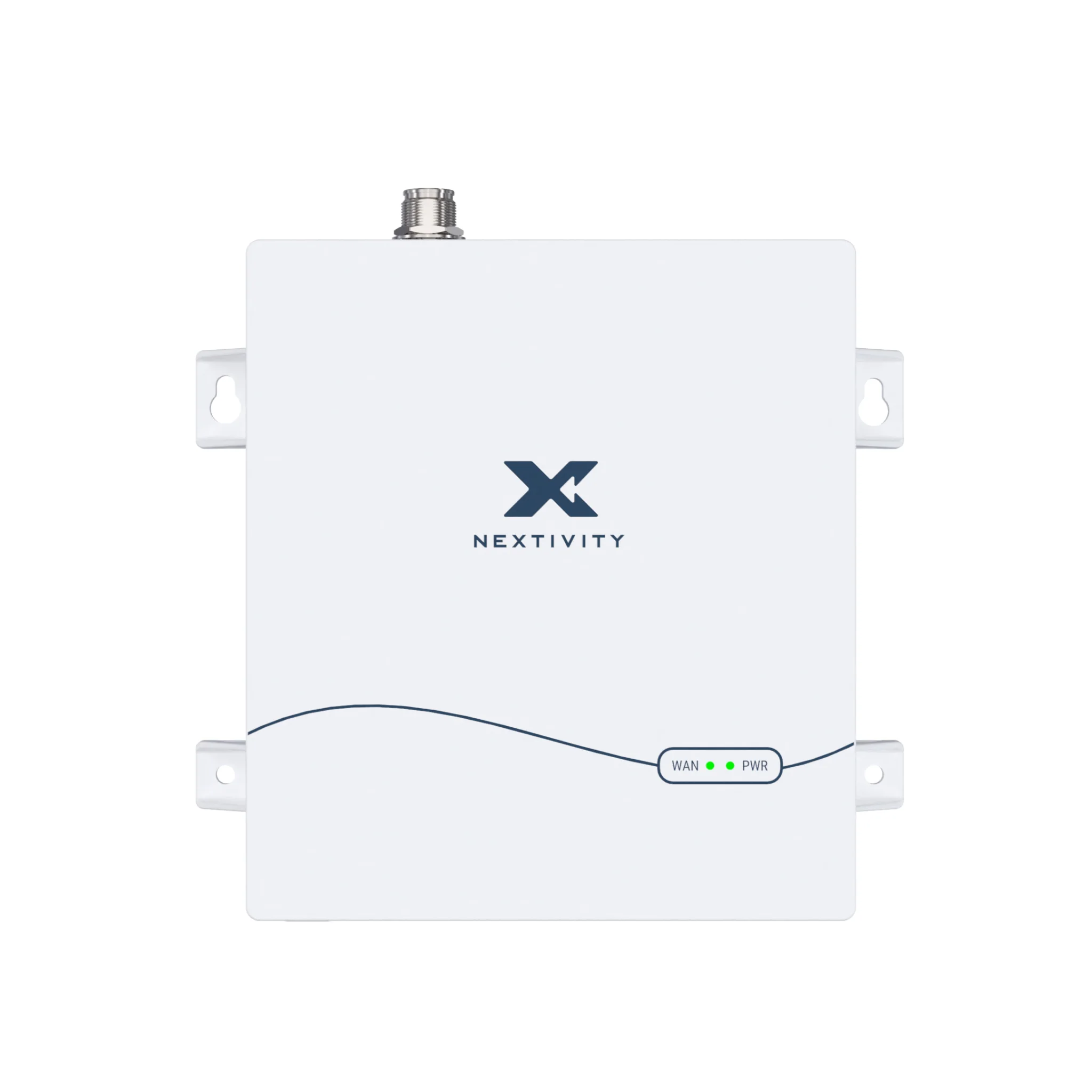

QUATRA 100M Coverage Unit

The Coverage Unit extends indoor coverage by rebroadcasting the donor signal received from the Network Unit. Each CU is powered via PoE and is self-configuring for rapid deployment. Up to six Coverage Units can be connected to a single NU, ensuring consistent coverage throughout the facility.

• Distributes high-gain cellular coverage across the building.


• Powered entirely by PoE from the Network Unit.


• Self-configuring and self-optimizing.

• Compact, low-profile design for easy installation.

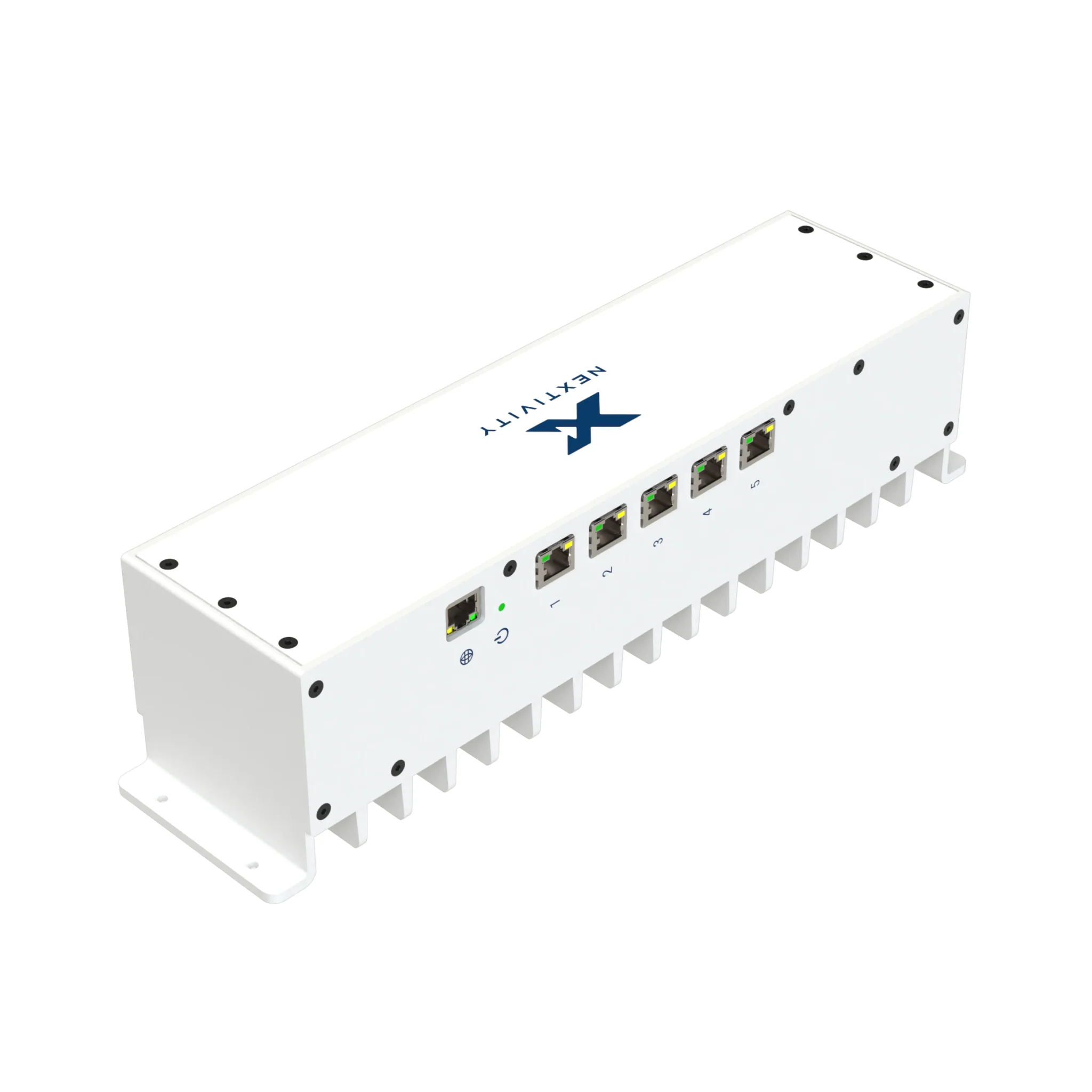

QUATRA 100M Power Unit

The Power Unit distributes power between the Network Unit and all connected Coverage Units, ensuring balanced, efficient energy delivery throughout the system. Its adaptable power distribution simplifies installation and enhances reliability in high-performance 5G environments.

• Provides stable power to Network and Coverage Units.


• Supports flexible system configurations.


• Reduces installation complexity through integrated management.
