Cel-Fi COMPASS XR

The COMPASS XR scanning receiver is a solution to enable integrators to install and optimize CEL-FI cellular coverage systems and SHIELD emergency responder communication enhancement systems (ERCES). A tool in a lightweight and portable case, COMPASS XR is used to deploy and verify multiple technologies, including 5G New Radio networks in sub-6 GHz spectrum, LTE, CBRS, and LMR public safety coverage.

The COMPASS XR includes the accessories needed to connect the device to CEL-FI equipment, from industrial QUATRA boosters to antennas. Easily perform grid tests and site surveys with portable, handheld RF scanner. It's and ideal tool for deployment of CEL-FI QUATRA cellular & RED public safety systems.

User Interface - Cel-Fi WAVE PRO

The Compass is controlled by the Cel-Fi WAVE PRO app via Bluetooth Low Energy. This free mobile app (iOS and Android) pairs with COMPASS XR, allowing integrators to install and optimize CEL-FI installations without the need for local internet connectivity.

COMPASS XR performs a variety of installation and testing operations using WAVE PRO. Here are three examples:

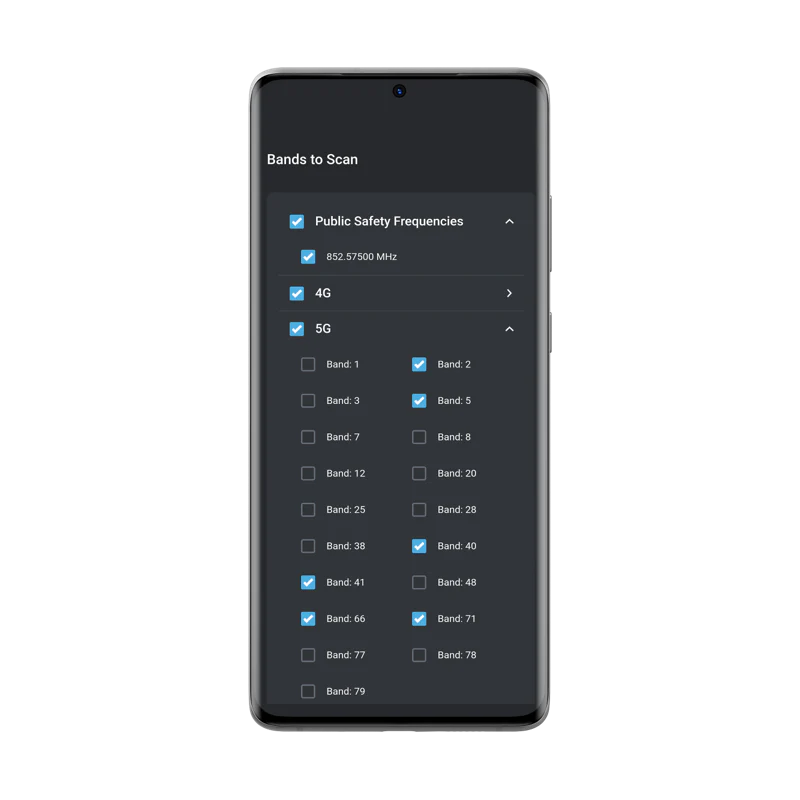

Full Signal Report & Band Selection

Select the technologies, bands, and frequencies needed for quick and efficient scans. COMPASS XR collects all the data needed for the selected bands and saves time by excluding unnecessary frequencies. Get the Full Signal Report at the current location, and the WAVE PRO App saves selections for quick reuse at the next site.

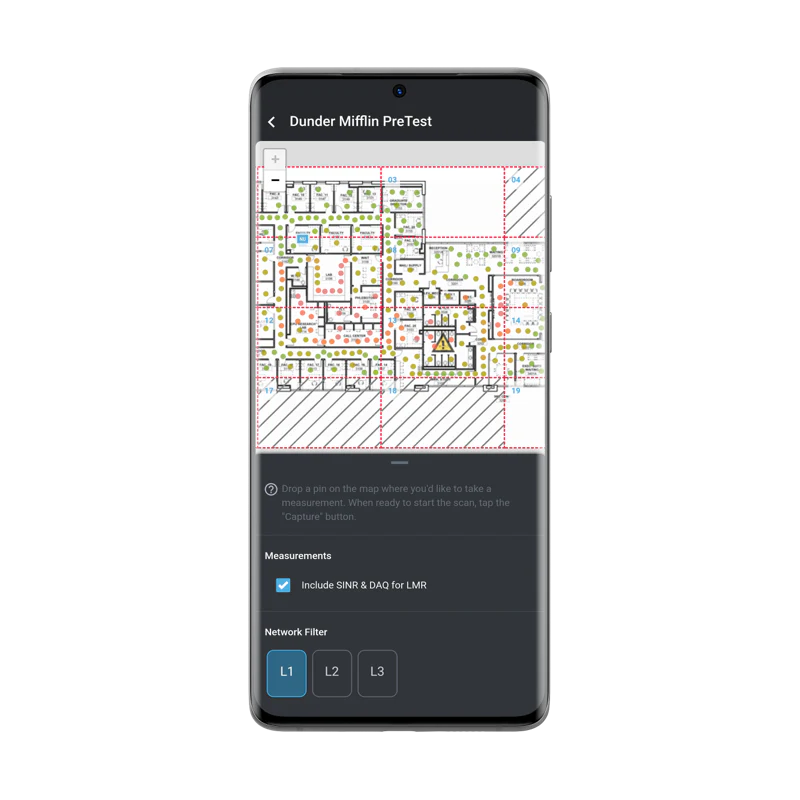

Grid Test

Collect site survey data for public safety or cellular coverage, or even both at the same time, using the WAVE PRO App’s Grid Test. Whether performing an initial site survey or post-install acceptance testing, the COMPASS XR works with the WAVE System to ensure a successful CEL-FI installation.

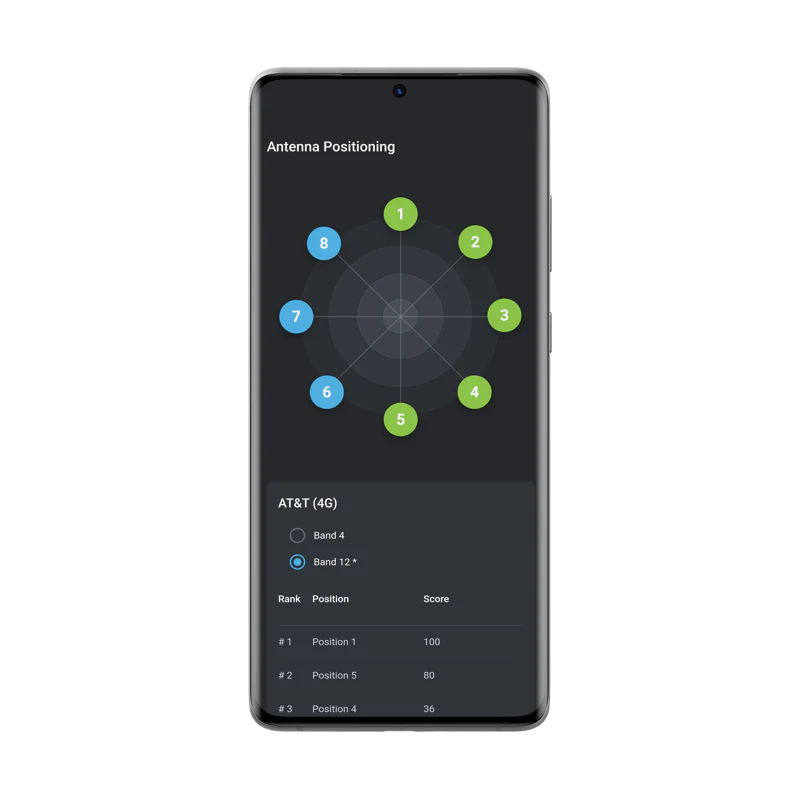

Antenna Positioning

Easily find the ideal position for your donor antenna. Connect the donor antenna to the COMPASS XR and the WAVE PRO App will guide you through the positioning process, automatically calculating the optimal direction to point the antenna.

Frequencies and Technologies Supported

• 5G NR on bands: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48/n66/n71/n77/n78/n79
• 4G LTE FDD on bands: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71
• 4G LTE TDD on bands: B34/B38/B39/B40/B41/B42/B43/B48
• LMR on 758-775 / 851-861 MHz
• UMTS on B1/B2/B3/B4/B5/B6/B8/B19, enabled in a future software release

Kit Contents

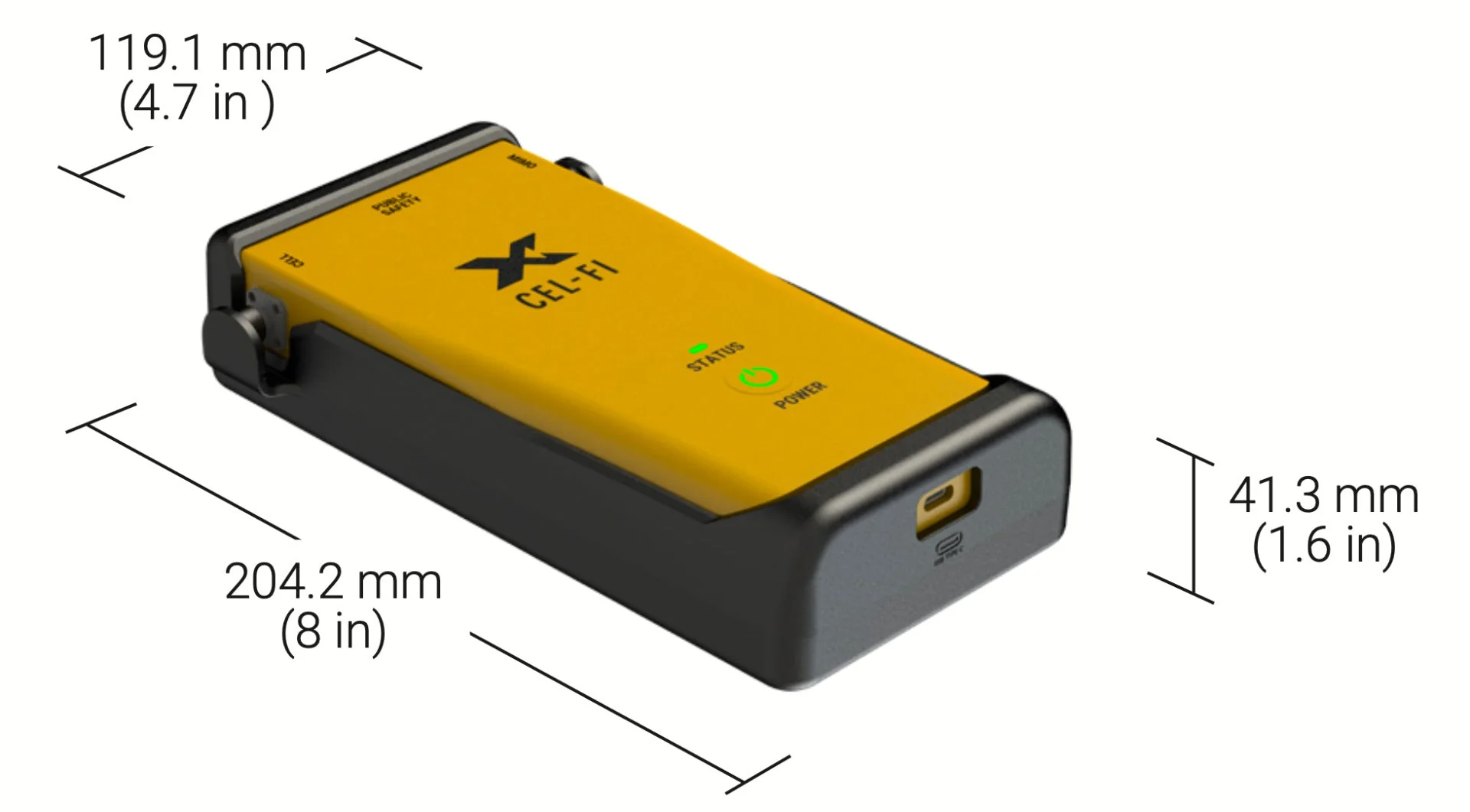

• Cel-Fi Compass XR

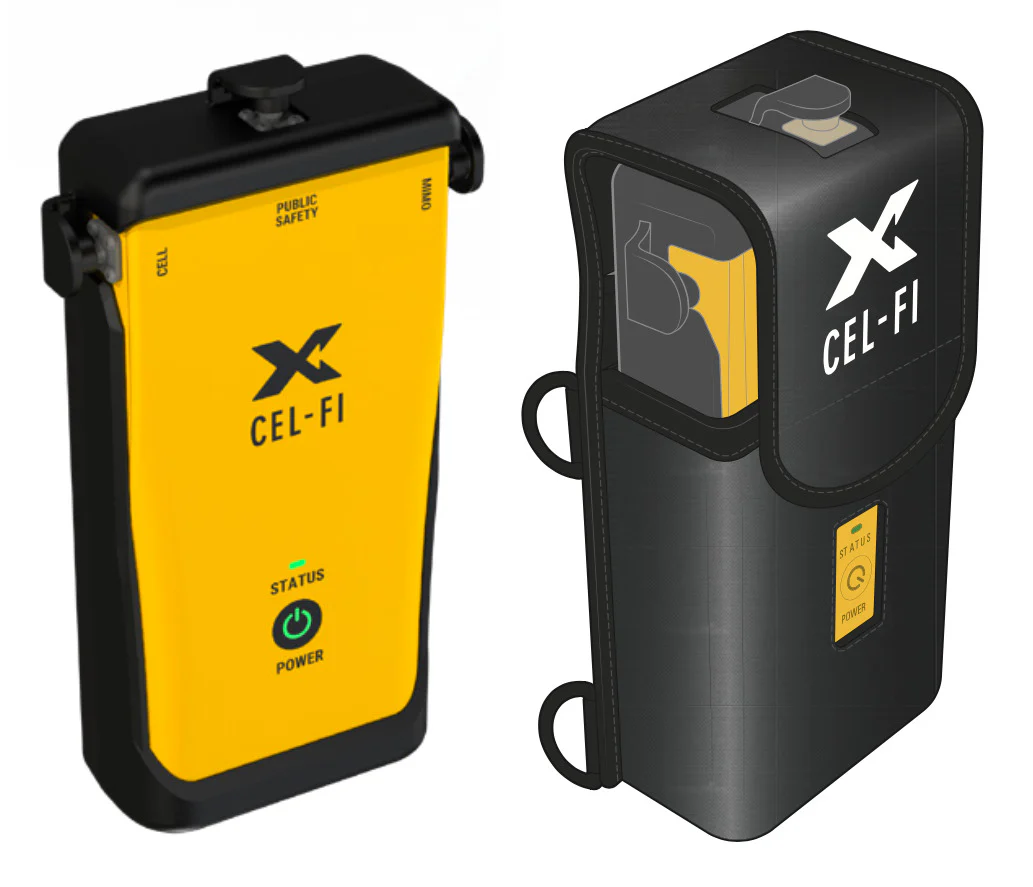

• Soft Case with integrated sling and belt clip
• SMA-Female to N-Male 2 Meter Jumper Cable
• N-Female to N-Female Barrel Connector
• N-Female to QMA Female Adapter
• N-Female to 4.3-10 Female Adapter
• 3x A21-ML3-600 - 5G NR / UHF 410-5925 MHz Antennas
• 5V 3.2A USB-C Charger with 1 meter cable and global plug adapters
