2x2 Cross-Polarized MIMO Indoor Panel Antenna, 600 - 2700 MHz

Our cross-polarized indoor MIMO panel antenna is ideally suited for use with a MIMO booster system or in systems with two single carrier amplifiers to provide coverage for multiple carriers.

Reach out to our team for help building your MIMO or multi-carrier system.

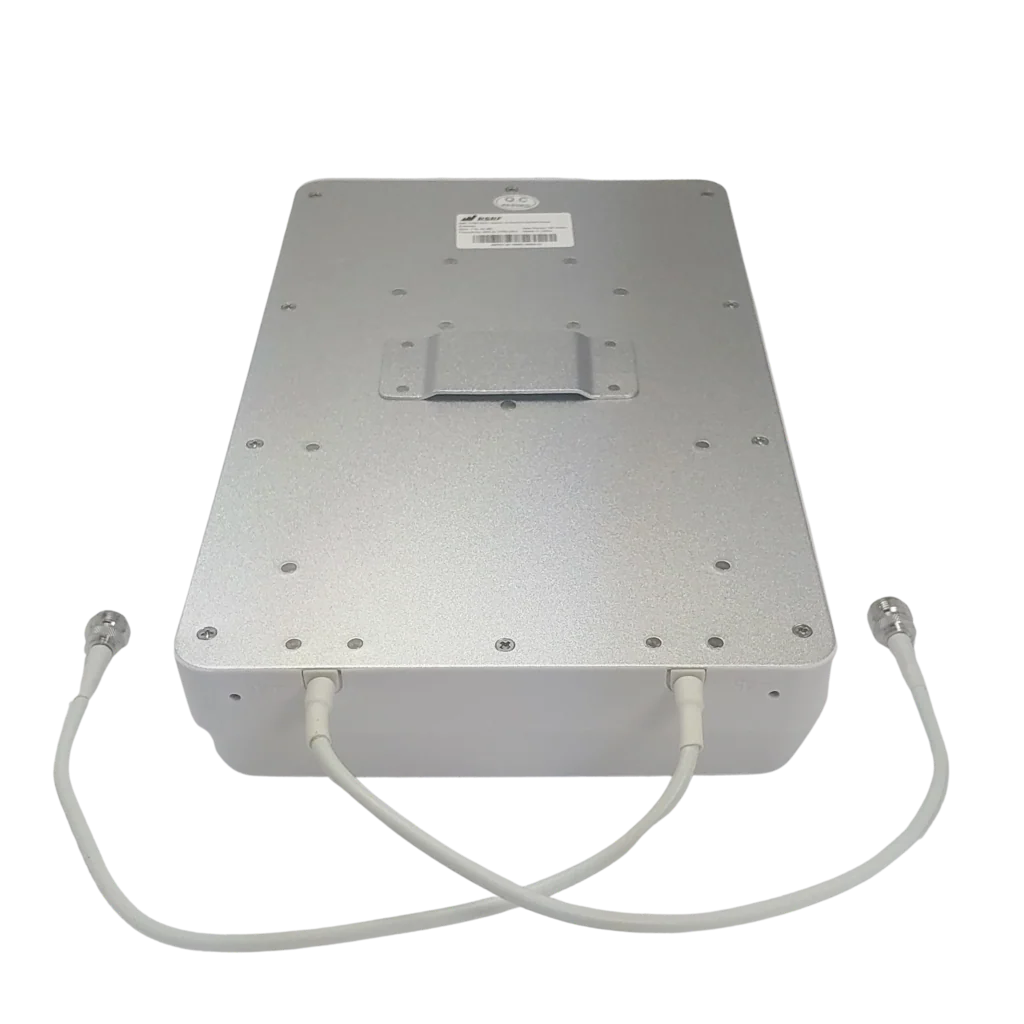

This antenna covers the most common 4G LTE bands in use today, as well as low-band and mid-band 5G frequencies. The antenna has two short pigtails with N-female connectors.

Features

• Up to 9 dBi gain between 1710 and 2700 MHz, and 6 dBi gain between 600 MHz and 900 MHz.
• +/- 45 degreee cross-polarization.
• 2x N-Type Female connectors

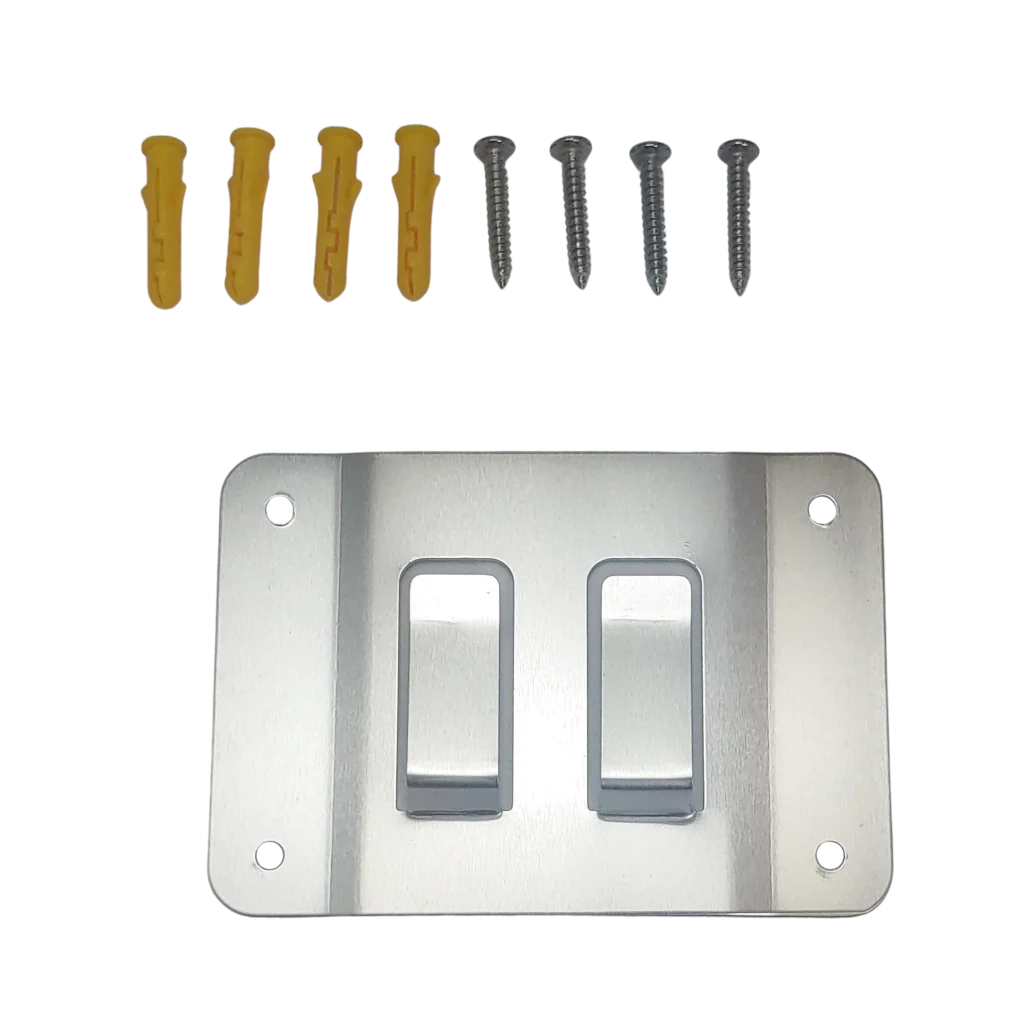

• Includes wall-mounting hardware

Frequency Bands Support

Our wideband cross-polarized panel antennas support almost every 3G, 4G LTE, and low/mid-band 5G service in use in the US and across the world today:

US 4G LTE Bands:

• AT&T: B2, B4, B5, B12, B17, B29, B30, B66
• Verizon: B2, B4, B5, B13, B66
• T-Mobile: B2, B4, B5, B12, B66, B71
• Sprint: B25, B26, B41

All supported US Frequency Bands:

• Band 2 (1900 MHz)
• Band 4 (1700/2100 MHz)
• Band 5 (850 MHz)
• Band 12 (700 MHz)
• Band 13 (700 MHz)
• Band 14 (700 MHz)
• Band 17 (700 MHz)

• Band 25 (1900 MHz)
• Band 26 (850 MHz)
• Band 30 (2100 MHz)
• Band 66 (2100 MHz)
• Band 71 (600 MHz)

All supported LTE Bands: Band 1-10, Band 12-20, Band 23, Band 25-30, Band 33-41, Band 65-71, Band 85

Supported 5G Bands in use today:

• AT&T: n5
• T-Mobile: n71
• Sprint: n41

All supported 5G Bands: n1, n2, n3, n5, n7, n8, n12, n14, n18, n20, n25, n26, n28, n29, n30, n34, n38, n39, n40, n41, n65, n66, n70, n71, n80, n81, n82, n83, n84, n86, n89, n90, n95
